Incredibly Powerful

Activate "Enhanced over-ear headphone mode" for output power up to 3000mW.

Inputs and Outputs Galore, for Your Exact Needs

Comprehens ive set of inputs and outputs, covering every need.

High-End, High Standards

XMOS XU316+ ES9038PRO+ QCC5124

TFully Balanced THX AAA 788+ Amplifier

4-way THX amplifier circuit, 5 levels of mixed gain.

Consistent Visual Experience

1.3-inch full color display, visibly HD.

A New Design Appealing to Your Eyes and Touch

Next-gen mech design, with dazzling atmospheric lights.

Beyond Portable

Desktop (DC-powered) +portable (battery powered) dual modes.

Maybe an Old Knob But Full of New Tricks

Single key shuttle, fast volume adjustment input selection, menu Settings.

Digital and Analog Separated Pure to The Core

Self-developed digital control core upgraded, split analog and digital boards.

Combining Desktop and Portable Rigs into One Unlike Ever Before

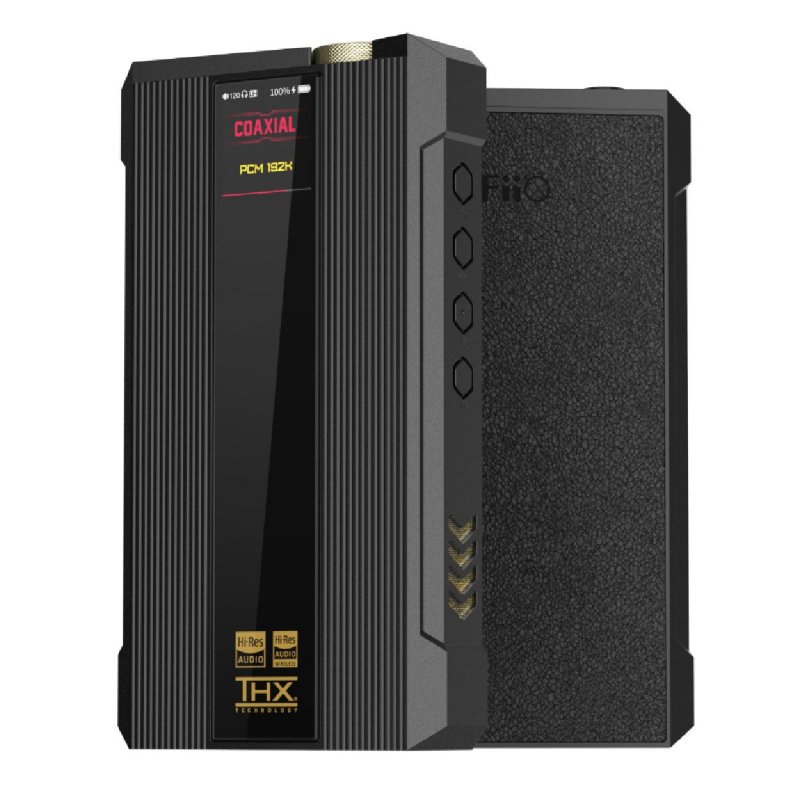

Like the M17, the Q7 is a portable amplifier packed with parts designed for desktop amps, making it a true fusion of portable and desktop amps. The Q7 redefines what a portable amp can be and sets a new benchmark not only for FiiO portable products but for all portable audio products.

Incredible Desktop-Level Power

While portable in size, the Q7 features desktop-level amplification with 100% more power under DC power supply in "Enhanced over-ear headphone mode" - up to 3000mVW* of power. *Q7 can output up to 1500mW in portable mode, hence the 100% improvement in "Enhanced over- ear headphone mode".

Desktop-Tier THX AAA 788+ Amp

The THX AAA 788+ amp originally designed for desktop usage is featured in a 4-way truly balanced amplifier circuit. With five levels of mixed gain, the Q7 can effortlessly power all kinds of headphones for a pure listenina exnerience.

Desktop-Level Connectivity

The Q7 is equipped to handle any situation - with USB, optical and coaxial inputs, 2 single-ended (6.35mm and 3.5mm) and 2 balanced outputs (4.4mm and 2.5mm); and also LO output too.

Desktop-Caliber Power Supply

Dual power supply modes Plentiful continuous energy

The Q7 can be operated in either DC or battery-powered modes. Under the battery-powered mode, the 9200mAh battery is up to the task of letting the Q7 output up to 150OmW of power. Under the DC power supply mode, the battery is bypassed to protect battery life while the custom 24W low-noise power supply effortilessly drives a wide variely of headphones with aplomb.

Precisely-Regulated Power Supply for Ultimate Stability

The 5-stage audio circuit features 20 LDOs and a 470mF high-capacity ultra-low ESR supercapacitor in order to provide endless reserves of power in order to maintain stable, high-quality audio at all times.

Desktop-Grade Decoding

16-Core XMOS XU316: Dual audio clocks, ultra-low latency, 768K, DSD512 and MQA full decoding.

High-end DAC ES9038PRO: 4 channels connected in parallel for one differential output, for excellent resolution.

Qualcomm QCcS124: Bluetooth receiver, with support for hi-res Bluetooth formats like LDAC and aptX Adaptive, aptx LL and aptx HD.

FiiO Digital Control Coreupgraded Again!

Again upgraded in the Q7 is FiiO's self-developed digital control core center. This control chip powered by an ARM Cortex M4 processor efficiently handles tasks such as clock management, USB decoding, and optical decoding to optimize sound quality. To further enhance sound quality, the digital and analog sections are physically separated on different boards with shield covers to achieve an extremely pure sound for a superb listening experience.

Brand New Design Starting From "7"

The Q7 continues FiiO's modern design language, featuring a bold next-gen mech design complemented by tasteful color lights for a thoroughly technologically modern appearance.

Full Color for a High Definition Experience

The Q7 features a 1.3-inch full-color display that lets you quicky know infomation such as audio format and sampling rates with just a simple glance. Let your eyes enjoy a delightful experience on par with that of your ears!

Maybe an Old Knob But Full of New Tricks

In the Q7, the humble krnob is full of new tricks. That knob conveniently allows one to quickly and precisely adjust the volume, select the input, and even go through the menu settings. Also quite handy is the ability to adjust the volume with the knob when the screen Is off.

Open the App The Main Control

With the FiiO Control App", the adjustable settings are all at your fingertips. Change the Bluetooth format, RGB lights, sound channel balance and more, all in one handy location. "FiiO has always committed to continuous app optimization. App functionality may vary in the official release version.

Highly Sophisticated for Worry-Free Listening

Overload protection : to ensure the device hassufficient power for excellent audio quality.

Overheating protection: to prevent heat damage to battery and to prevent burns to the user

Max volume limit: to ensure listeners don't damage their hearing.

Once Connected You're in the Concert

Desktop DAC and amp: Connect to a computer, with DC power supply and cooling stand, and listen to music with ful-sized headphones.

Bluetooth amp: Connect to phones, blets, and music players via Bluetooth.

Digital decoding amp: Decode digital audio signals from coaxial.

Portable DAC and amp: Connect to a phone via short USB cable

Specifications:

General:

• Name/Model: Q7
• Weight: ≈620g
• MQA: 8x
• Gain: Ultra High(DC mode)/Super High/H/M/L
• FiiO Control: Y
• Channel Balance: ≤0.2 dB
• Maximum supported sampling rate/DSD
• USB DAC: 768kHz/32bit;DSD512(Native)
• COAX: 192kHz/24bit;DSD64(DOP)
• OPT: 96kHz/24bit
• Hardware solution: DAC: ES9038Pro , USB: XMOS XU316, AMP:THX_AAA_788+*2, BT:QCC5124
• Volume Scroll: Knob
• Dimensions: ≈158.4x88.5x28.3mm
• Driver-free mode: Y
• Screen: 1.30-inch TFT (240*240) full-fit screen
• Status indication: hi
• Bluetooth codec(5.0) : AAC/SBC/aptX/aptX LL/aptX adaptive/aptX HD/LDAC
• Firmware upgrade:
• Bluetooth firmware can be upgraded via OTA
• XMOS/system firmware can be upgraded via USB
• Recommended headphone impedance:
• PO: 16~150Ω
• BAL: 16~300Ω

Buttons and Interfaces:

• Buttons: Power button *1;Play/Pause*1;Previous track *1;Next track*1; Volume knob+OK button*1
• PO: 3.5mm + 6.35mm
• LO: 3.5 mm (shared with PO)
• OPT IN: Toslink
• DC power: Φ6.2mm DC
• USB: TYPE C USB2.0
• BAL PO: 4.4mm+ 2.5mm
• BAL LO: 4.4 mm (shared with PO)
• COAX OUT: RCA
• Switches: Charge*1;Power*1

Power Parameters:

• Power supply: PD 9V (Quick charge), DC 12V/2A
• Charging time: ≈4.5H
• Battery capacity: 9200mAh lithium polymer battery

Headphone Output Performance Parameters (3.5mm/6.35mm, USB DAC/OPT/COAX, UH gain):

• Output power:
• 1500mW (16Ω, THD+N<1%)
• 1100mW (32Ω, THD+N<1%)
• 130mW (300Ω, THD+N<1%)
• Output impedance: <1.2Ω
• Crosstalk: ≥75dB
• Peak output voltage: 17.8Vp-p
• SNR: ≥125dB (dbA)
• Frequency response
• 5Hz~80kHz:±3dB
• 20Hz~20KHz:±0.1dB
• 20Hz~20KHz:±0.1dB
• THD+N
• <0.0005%(1kHz/-10dB@32Ω)
• <0.0003%(1kHz/-6dB@300Ω)
• Noise floor: <2.8uV(dbA)

Headphone Output Performance Parameters(3.5mm/6.35mm, USB DAC/OPT/COAX, SH gain):

• Output power:
• 750mW (16Ω, THD+N<1%)
• 550mW (32Ω, THD+N<1%)
• 65mW (300Ω, THD+N<1%)
• Output impedance: <1.2Ω
• Crosstalk: ≥75dB
• Peak output voltage: 12.4Vp-p
• SNR: ≥125dB (dbA)
• Frequency response
• 5Hz~80kHz:±3dB
• 20Hz~20KHz:±0.1dB
• THD+N
• <0.0005%(1kHz/-10dB@32Ω)
• <0.0003%(1kHz/-4dB@300Ω)
• Noise floor: <2.8uV(dbA)

Line Out Performance Parameters(3.5mm, USB DAC/OPT/COAX):

• THD+N: <0.0004%(1kHz/-4dB@10KΩ)
• Crosstalk: ≥99dB
• Peak output voltage: 12.4Vp-p
• Frequency response
• 5Hz~80kHz:±3dB
• 20Hz~20KHz:±0.1dB
• SNR: ≥118dB (dbA)
• Noise floor: <3.5uV(dbA)
• Output level: 2V

Balanced PO Performance Parameters(2.5mm/4.4mm, USB DAC/OPT/COAX, UH gain):

• Output power:
• 1500mW (16Ω, THD+N<1%)
• 3000mW (32Ω, THD+N<1%)
• 500mW (300Ω, THD+N<1%)
• Output impedance: <1.7Ω
• Crosstalk: ≥114dB
• Peak output voltage: 12.4Vp-p
• Output level: 35.3Vp-p
• SNR: ≥125dB (dbA)
• Frequency response
• 20Hz~80kHz:±3dB
• 20Hz~20KHz:±0.1dB
• THD+N
• <0.0005%(1kHz/-16dB@32Ω)
• <0.0003%(1kHz/-2dB@300Ω)
• Noise floor: <4.5uV(dbA)

Balanced PO Performance Parameters(2.5mm/4.4mm, USB DAC/OPT/COAX, SH gain):

• Output power:
• 1500mW (16Ω, THD+N<1%)
• 1500mW (32Ω, THD+N<1%)
• 500mW (300Ω, THD+N<1%)
• Output impedance: <1.7Ω
• Crosstalk: ≥114dB
• Output level: 35.3Vp-p
• SNR: ≥125dB (dbA)
• Frequency response
• 5Hz~80kHz:±3dB
• 20Hz~20KHz:±0.1dB
• THD+N
• <0.0005%(1kHz/-10dB@32Ω)
• <0.0003%(1kHz/-0dB@300Ω)
• Noise floor: <4.5uV(dbA)

Balanced LO Performance Parameters(4.4mm, USB DAC/OPT/COAX):

• THD+N: <0.0003%(1kHz/0dB@10KΩ)
• Crosstalk: ≥106dB
• Frequency response
• 20Hz~80kHz:±3dB
• 20Hz~20KHz:±0.1dB
• SNR: ≥128dB (dbA)
• Noise floor: <2uV(dbA)
• Output level: 4V
