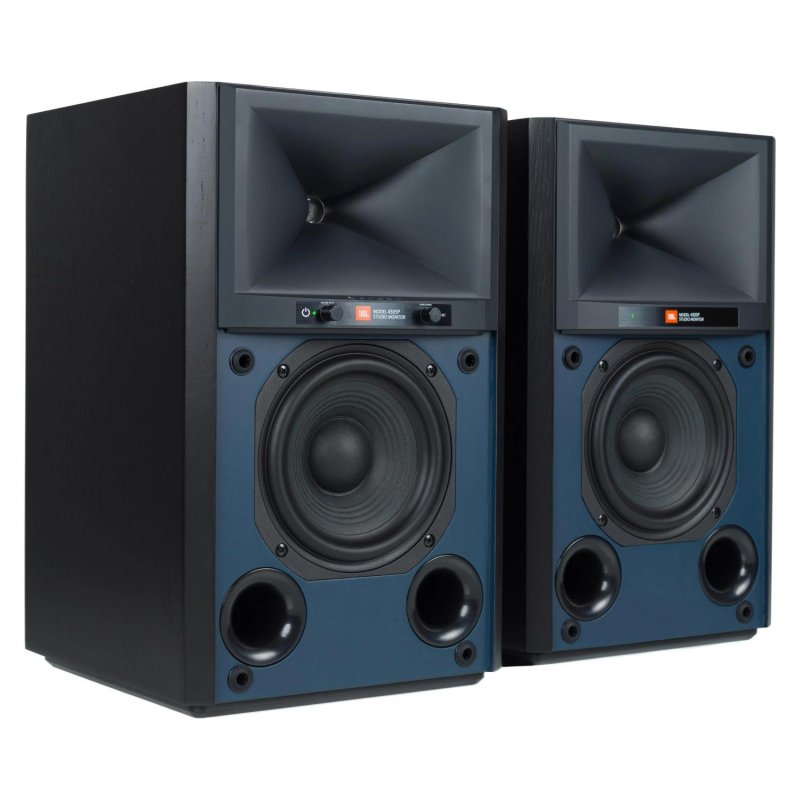

4305P Studio Monitor

The JBL 4305P Studio Monitor is a completely self-contained powered loudspeaker system featuring high-resolution streaming audio and prosumer connectivity. Patented JBL acoustic technologies render sound with incredible accuracy and powerful dynamics, while extensive wired and wireless connectivity open a world of possibilities for the music lover and content creator. The integrated streaming engine provides both wired and wireless network audio capabilities via Google Chromecast built-in, Apple AirPlay 2, and Bluetooth audio. A 24-bit/192kHz high-resolution DAC ensures your favorite music comes across with the highest fidelity. In addition to premium wireless audio, the 4305P provides extensive connections for analog and digital physical sources including a professional-grade combination XLR / ¼-inch TRS phono input for use with balanced or unbalanced signals.

Features:

• Patented JBL Driver Technologies: 2410H-2 / 1-INCH (25MM) Compression Driver with High-Definition Imaging™ Horn
• JW130P-4 / 5.25-INCH (130MM) Pure-Pulp Black Paper Cone Woofers with Cast-frames
• 300W Total RMS System Power
• Bluetooth Wireless Remote Control
• Premium Wood Veneer Cabinet Finish

Technical Specifications:

Type:

Compact, Bass-reflex Loudspeaker System with Built-in Amplification, DSP, and Wireless Connectivity

Low Frequency Drivers:

JW130P-4, 5.25-inch (130mm) Pure-pulp Black Paper Cone Woofers with Cast-frames

High Frequency Drivers:

2410H-2, 1-inch (25mm) Annular Ring, Teonex® Diaphragm Compression Drivers with Advanced HDI™ Geometry Horns

Amplifier Power:

300W Class D System Power, 150W RMS per Speaker (25W per HF Compression Driver + 125W per LF Woofer)

Audio Resolution:

Up to 24-bit, 192 kHz (Digital Link connection between spks), Up to 24-bit, 96 kHz (Wireless connection between spks)

Frequency Response:

45 Hz - 25 kHz (-6 dB)

Crossover Frequency:

1,750 Hz

Dispersion:

90° Horizontal x 60° Vertical (2kHz to 20kHz)

Sound Controls:

Front Panel- Volume +/- and Source Selection, Bluetooth Remote, Boundary Compensation (Flat / -3dB)

Wireless Inputs:

WiFi streaming, Bluetooth 5.1

Wired Inputs:

Analog - XLR/¼" Combo and 3.5mm stereo, Digital - Asynchronous USB-B and Toslink/Optical

Wired Inputs, Digital:

Asynchronous USB-B and Toslink/Optical

Supported Digital Audio Sample Rates (PCM 2CH):

Streaming & Local Media - 32kHz/44.1kHz/48kHz/88.2kHz/96kHz/176.4kHz/192kHz SPDIF - Up to 192kHz Bluetooth - Up to 48kHz

Music Formats Supported (Local Media):

AAC / AIFF / ALAC / DSD (to PCM) / FLAC / MP3 / MP4 / OGG / WAV / WMA

Subwoofer Output:

Autosensing w/ Auto-engage of 80Hz High Pass Filter

Remote Control Type:

BTLE Wireless

Bluetooth Audio:

Version 5.1, Profiles - SPP (Serial Port Profile), A2DP (Advanced Audio Distribution Profile), AVRCP (Audio/Vido Remote Control Profile)

Bluetooth Profiles:

SPP (Serial Port Profile), A2DP (Advanced Audio Distribution Profile), AVRCP (Audio/Vido Remote Control Profile)

Net Speaker Dimensions with grille:

13.2" H x 8.3" W x 8.8" D (336mm x 210mm x 223.3mm)

Net Speaker Weight:

Primary - 15.0 lbs (6.8kg), Secondary - 14.1 lbs (6.4kg)

AC Input Voltage:

100 - 240 VAC (+/-10%), 50/60Hz
