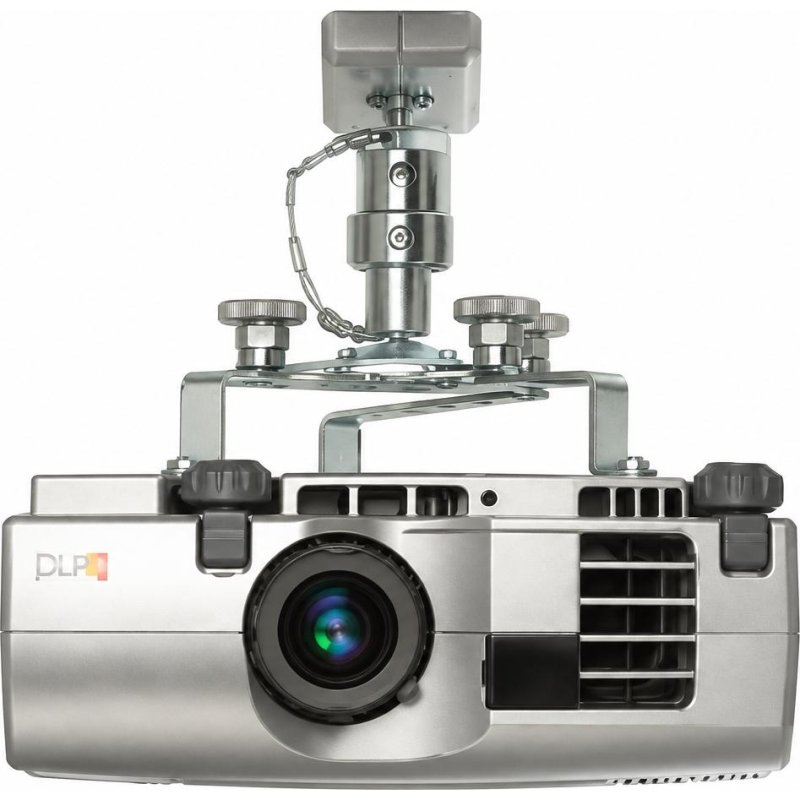

B-Tech BT881 Universal Projector Mount

The B-Tech BT881 is a universal ceiling mount designed for LCD and DLP projectors weighing up to 10 kg (22 lb). Its flexible mounting system accommodates a wide range of projector mounting patterns while providing adjustable positioning for proper alignment with the projection screen.

The projector can be mounted just 90 mm (3.5") from the ceiling or installed using the supplied extension pole for a 300 mm (11.8") ceiling drop. The mount provides full 360-degree swivel and up to 90 degrees of tilt for flexible projector positioning.

A carousel-style mounting system uses a combination of four long and four short adjustable arms, supporting projector mounting points up to 340 mm (13.4") apart. The raised-arm design also maintains open-air circulation around the projector and provides access that can make lamp replacement possible without removing the projector from the mount.

Features:

• Universal Projector Mount - Designed to fit a wide range of LCD and DLP projectors.
• 10 kg Load Capacity - Supports projectors weighing up to 10 kg (22 lb).
• 360° Swivel - Provides full rotational adjustment for projector alignment.
• Up to 90° Tilt - Allows extensive tilt adjustment for flexible installation.
• Low-Profile Installation - Positions the projector only 90 mm (3.5") from the ceiling.
• Extension Pole Included - Allows installation with a 300 mm (11.8") ceiling drop.
• Flexible Carousel Mounting System - Includes four long and four short arms that can be combined to accommodate different projector mounting patterns.
• Up to 340 mm Mounting Span - Supports a maximum distance of 340 mm (13.4") between any two projector mounting points.
• Thumbwheel Adjustment - Adjustable mounting arms simplify positioning and projector access.
• Open-Air Design - Raised mounting arms allow air to circulate around the projector.
• Cover Plate - Conceals ceiling fixing screws for a cleaner finished installation.
• Safety Wire Included - Provides additional installation security.

Specifications:

• Model: BT881
• Product Type: Universal Ceiling Projector Mount
• Projector Compatibility: LCD and DLP Projectors
• Maximum Load: 10 kg (22 lb)
• Swivel: 360°
• Tilt: Up to 90°
• Low-Profile Ceiling Distance: 90 mm (3.5")
• Extended Ceiling Drop: 300 mm (11.8")
• Maximum Distance Between Any Two Projector Mounting Points: 340 mm (13.4")
• Mounting Arms: 4 Long Arms and 4 Short Arms
• Projector Fixing Screw Sizes: M3, M4, M5 and M6

What's in the Box:

• BT881 Universal Projector Mount
• 4 x Long Mounting Arms
• 4 x Short Mounting Arms
• Extension Pole
• Safety Wire
• Hardware Kit with M3, M4, M5 and M6 Fixing Screws
• Metal Spacers
