Theater. Redefined.

Epson^® Pro Cinema Projectors have one goal to faithfully reproduce the source material the way the artist intended. This single thought is what guided our Engineering Teams to develop a next-generation home theater projector. And what they came up with, could possibly be our best Pro Cinema Projector ever.

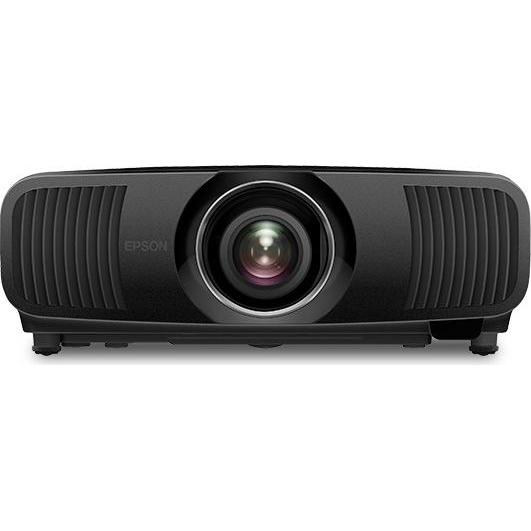

Introducing the Epson Pro Cinema LS12000 4K PRO-UHD^®1 3-Chip 3LCD Laser Projector.

Utilizing an all-new Laser Array Light Source, the Pro Cinema LS12000 is capable of displaying a 4K picture on screen up to an astonishing 2,700 lumens for both color and white brightness². And, when driven by a proprietary Epson ZX Picture Processor for powerful picture processing, the Pro Cinema LS12000 produces incredible brightness, color accuracy, and image detail to faithfully display all your content the way it was meant to be seen.

Model: V11HA47020MB

4K PRO-UHD¹

Advanced pixel-shifting technology works in parallel with three individual high-definition LCD chips to produce an exceptionally sharp 4K picture without sacrificing picture brightness

High Picture Brightness

Impressive 2,700 lumens of color and 2,700 lumens of white brightness2 for an exceptional picture in virtually any theater environment even in rooms with ambient light

Laser Array Light Source

True multi-array laser diodes produce an ideal light source to power the unique 3-Chip 3LCD Projector Engine for quick turn-on, incredible picture brightness, black contrast and color accuracy

Epson ZX Picture Processor

Our most advanced video processing technology to date, the proprietary 36-bit Epson ZX Picture Processor handles real-time color, contrast, HDR³, frame interpolation and resolution enhancement to faithfully reproduce the source material the way it was intended to be shown

Precision Shift Glass Plate Technology

Unique digitally controlled Precision Shift Glass Plate precisely refracts pixel-light to display a 3840 x 2160, 8.29-million-pixel image for an exceptionally sharp and clear 4K picture

True 3-Chip 3LCD Projector Engine

Advanced 3LCD technology uses three individual LCD chips to continuously display 100% of the RGB color signal for every frame. This allows for outstanding color gamut while maintaining excellent brightness without any rainbowing or color brightness issues seen with other projection technologies

Impressive HDR

Full 10-bit HDR³ color processing accepting 100% of the HDR source information to faithfully reproduce HDR, HDR10+ and HLG (Hybrid Log Gamma) content for an exceptional visual performance. Real-time HDR curve adjustment allows for 16 steps of control to fine-tune the HDR performance regardless of the content

120 Hz Refresh Rate

Refresh rates up to 120 Hz allow for smoother motion for supported content while providing the option for impressive Frame Interpolation for content below 120 Hz

Eco Features:

Features:

Specifications:

• Projection System: Epson 3LCD
• Chip Design (Architecture): 3-Chip
• Light Source: True Laser Diode Array
• Projection Method: Front, Front-Ceiling, Rear, Rear-Ceiling
• Driving Method: Poly-silicon TFT Active Matrix, 0.74"-wide panel, 12-bit
• Output Resolution: 4K PRO-UHD¹ 3840 x 2160 (dual-axis: 1920 x 1080)
• Maximum Input Resolution: 4096 x 2160
• Maximum Refresh Rate: 120 Hz
• Supported Resolutions: 4K 2160p, 2K Full HD 1080p/i, HD 720p, 576p/i, 480p/i
• Native Aspect Ratio: 16:9 widescreen
• Resize Aspect Ratio Support: 1.9:1 (4096 x 2160), 21:9 (2560 x 1080), 4:3 (1600 x 1200), 9:6 (720 x 480), 5:4 (720 x 576); compatible with Normal, Full or Zoom Modes
• Color Brightness³: Color Light Output: 2,700 lumens
• White Brightness³: White Light Output: 2,700 lumens
• Contrast Ratio: Up to and over 2,500,000:1, Auto Iris on
• White Balance: 14-point temperature adjustment
• Color Reproduction: Full-color (up to 1.07 billion colors)
• Size (Projected Distance): 50" to 300" (at 58" to 62'4")
• Keystone Correction: Vertical/Horizontal: ± 30 degrees
• HDR Color Processing: Full 10-bit
• Epson ZX Picture Processor: Full 12-bit
• Light Source Life⁵:
• Normal Mode: Up to 20,000 hours
• Medium Mode: Up to 20,000 hours
• Eco Mode: Up to 20,000 hours

Dimensions (W x D x H):

• Projector, including feet (excluding cable cover): 20.5" x 17.6" x 7.6"
• Weight: 28.0 lb

Projection Lens:

• Epson VRX Lens: 15-element precision glass structure (AGS)
• Type: Powered focus/optical zoom/lens position
• F-number: 2.0 - 3.0
• Focal Length: 22.5 - 46.7 mm
• Zoom Ratio: 1 - 2.1
• Throw Ratio Range: 1.35 - 2.84
• Lens Shift:
• Vertical: -96.3% to +96.3% (H center, powered)
• Horizontal: -47.1% to +47.1% (V center, powered)
• Lens Cover: Powered, slide lens shutter

Interfaces:

• 2x HDMI^® 2.1 (HDCP 2.3); one supporting eARC/ARC
• 1x USB Type-A (for optical HDMI cable, 300 mA maximum power supply only)
• 1x USB Type-A 5 V, 2.0 A for power and firmware
• 1x Mini USB (service only)
• 1x LAN RJ45
• 1x RS-232c
• 1x Trigger out (On, Off) 12 V DC, 200 mA maximum

Remote Control:

• Features: Front and rear directional
• Operating Distance: 32 ft (10 m)
• Operating Angle:
• Front Right/Left: ± 30 degrees
• Upper/Lower: ± 30 degrees
• Rear Right/Left: ± 30 degrees
• Upper/Lower: 0 + 60 degrees

What's In The Box:

• Pro Cinema LS12000 projector
• ceiling mount
• cable cover
• power cord
• remote control with (2) AA batteries
• Quick Setup Guide
