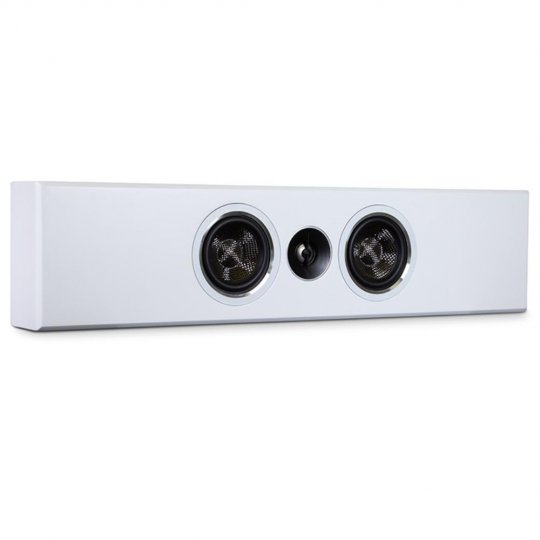

Ultra-slim, single-channel flat-panel speaker The PWM1 offers an outstanding performance for its modest size. It can reproduce the most demanding musical passages or cinematic scenes with a level of detail typically found in larger speakers. Its simple 2-way design, consisting of a 1" titanium tweeter and dual 4" carbon fibre drivers are coupled with a unique ported cabinet to create an extremely efficient speaker requiring little amplification power.

• PWM1 is an on-wall speaker that can be mounted vertically or horizontally (mount included)
• Can be used for left, center, or right channel or as a surround speaker
• Designed and voiced by the growing PSB design team mentored by PSB founder and speaker industry icon, Paul Barton

Today's home audio applications demand solutions that traditional designs are simply not able to fulfill. Regardless of the installation, PSB believes that the sound should never be compromised. PWM Series melds refined, elegant looks, versatile application and unwavering performance.

The slim profile hugs the wall and maintain a minimal visual presence. Their clean and simple lines complement virtually any design aesthetic. Interior designers, architects, custom home builders and system integrators will appreciate the understated elegance and highest performance levels offered by the Performance Wall Mount Series.

Newly developed drivers employing four-layer voice coils with powerful magnets and carbon fiber cones for exceptional detail, low distortion and superior power handling. The new proprietary 1" titanium dome tweeter is ferrofluid cooled and features a Neodymium magnet for high sensitivity and power handling. A wave guide on the front of the tweeter helps match the response of the tweeter near the crossover point with the woofer for a seamless transition.

Whether as part of a complete on-wall system, a basic TV application or as an on-wall center channel solution for floor standing speakers; PWM series deliver legendary PSB sonic performance coupled with aesthetics and install cues desired in today's interior design.

Key Features of the PSB PWM1 On-Wall Speaker:

• Slim Profile premium On-Wall speaker system
• 2 x 4" woofers with carbon fiber cones, rubber surrounds
• 1" Titanium Dome Tweeter
• Wall mount bracket included
• LCR or for surround speaker application

Specifications:

Sensitivity:

• Anechoic Chamber: 85dB
• Listening Room: 87dB

Frequency Response:

• On Axis +/- 3db: 70Hz-23kHz
• LF Cutoff: 50Hz

Impedance:

• Nominal: 8 Ohms
• Minimum: 6 Ohms

Recommended Amplifier Power:

• Tweeter (Nominal):
• 1" (25mm)
• Titanium Dome with Ferrofluid
• Woofer (Nominal):
• 2x 4" (100mm)
• Carbon Fibre Cone Rubber Surround
• Cast Basket
• Design Type: Bass Reflex

Construction:

• Cabinet: MDF
• Grille Face: Acoustic Transparent Cloth
• Frame: MDF

Size (W x H x D):

• Net H: 28" (711mm)
• Net W: 6.5" (165mm)
• Net D: 3.38" (85mm)

Mount:

• Wall Bracket: Wall Mount included for Vertical and Horizontal Mounting
