Enclosed Two-Way In-Wall LCR Speaker

PSB combines the performance of a premium two-way tower speaker with the invisibility of an in-wall to bring you a speaker with zero compromise: the W-LCR. With a perfect balance of sound quality and design, this easily concealable in-wall speaker can be used as part of a two-channel system, the three front channels, or as all the speakers in a surround system.

Reliable and Accurate Sound Quality in Your Home

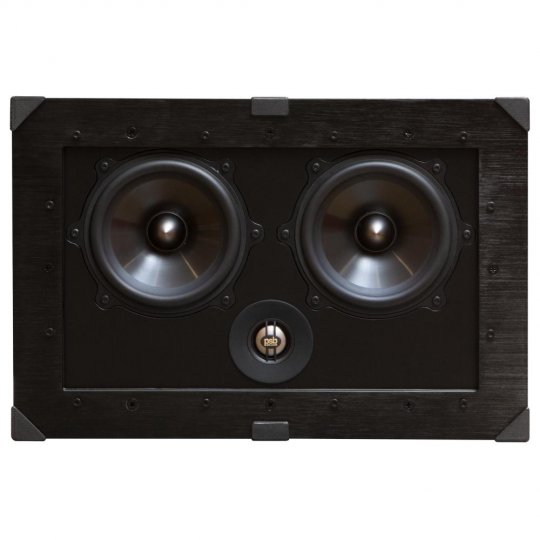

The CustomSound W-LCR in-wall speaker is a small two-way design using two 5¼" (133mm) woofers along with the same 1" (25mm) titanium dome tweeter as found in the Imagine Series. This is a perfectly crafted speaker in which both sound quality and design are equally elevated. Experience the best of both worlds with the W-LCR.

Versatile and Robust

The W-LCR is a versatile speaker that can be used in a variety of configurations. Position one horizontally under your wall-mounted TV for hearty centre-channel performance, and place one vertically on each side of your TV for the left and right channels. The result? A smooth, seamless, accurate soundstage that draws you into the action on the screen.

Dynamic Performance, Zero Footprint

The W-LCR features a carefully engineered enclosure that ensures the acoustic integrity of the design in any installation. Heavy-duty steel and ABS doglegs make installation fast, easy, and secure. The speaker cabinet features cable tracks for clean and efficient wire management, and the provided white magnetic grilles attach to the front frame of the speaker, seamlessly concealing the entire unit.

• Two 5¼" (133mm) polypropylene cone woofers
• 1" (25mm) titanium dome, ferrofluid-cooled tweeters
• Frequency response: 70-23,000Hz (±3dB)
• Includes magnetic frameless and paintable grille with fabric scrim
• Heavy-duty steel and ABS doglegs for fast and easy installation

Specifications:

Frequency Response:

• On Axis @ 0° ±3dB: 70-23,000Hz
• On Axis @ 0° ±1 1/2dB: 75-20,000Hz
• LF Cutoff: 62Hz

Sensitivity:

• Anechoic Chamber: 89dB
• Listening Room: 91dB

Impedance:

• Nominal: 6 Ohms
• Minimum: 4 Ohms

Input Power:

• Recommended: 20 - 150 Watts
• Program: 150 Watts

Acoustic Design:

• Tweeter (Nominal): 1" (25mm) Titanium Dome with Ferrofluid
• Woofer (Nominal):
• 2 x 5 1/4" (133mm) Polypropylene Cone
• Rubber Surround
• Crossover: 1700Hz, LR4
• Internal Volume: 0.12 cu ft (3.48L)
• Design Type: Sealed

Dimensions / Weights:

• Size (W x H x D):
• Cutout Dimensions - 9 3/16 x 14 3/8" (233 x 365mm)
• Mounting Depth - 3 3/4" (95mm)
• Grille Dimensions - 10 3/4 x 16 x 3/8" (273 x 406 x 7mm)
• Weight: Net - 11.7lb (5.3kg)/each
