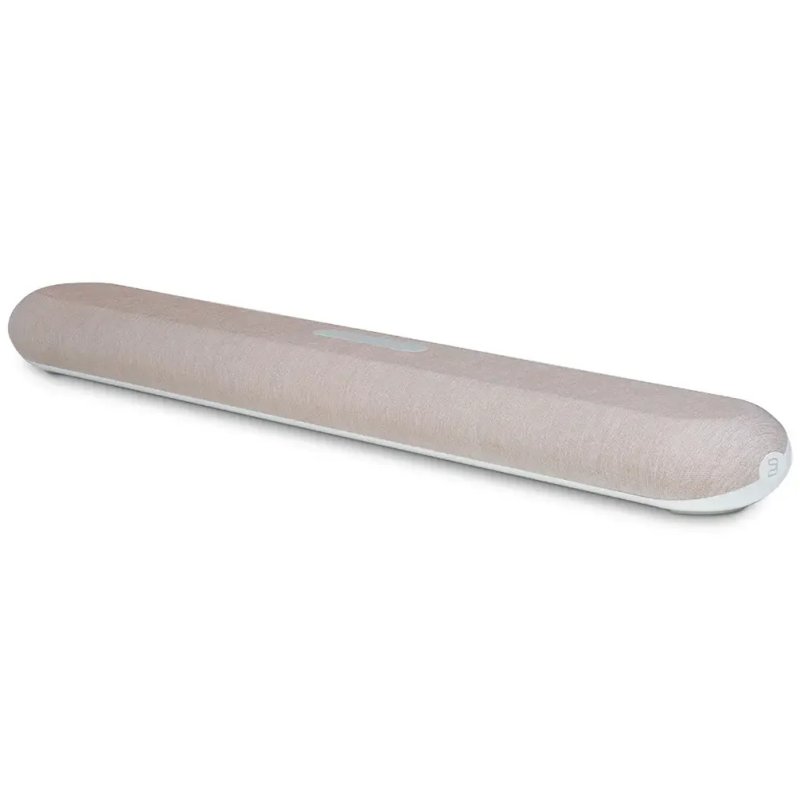

Bluesound PULSE CINEMA MINI Multi-Room Streaming Soundbar - Tan

The Bluesound PULSE CINEMA MINI is a compact 2.1-channel streaming soundbar designed to deliver powerful, detailed sound without dominating your living space. Its eight-driver acoustic system combines dedicated tweeters, mid-range drivers, woofers and passive radiators with 280 watts of Smart DSP amplification for clear dialogue, impactful music and immersive movie sound.

With Dolby Atmos®, HDMI eARC and optical connectivity, the PULSE CINEMA MINI can become the audio centre of a television setup without requiring a separate AV receiver. Built-in BluOS™ adds high-resolution music streaming, multi-room playback and extensive control through the BluOS Controller app.

Features:

• 2.1-Channel, Eight-Driver Design - Dual tweeters, dual mid-range drivers, dual 4" woofers and dual 4" passive radiators deliver full-range sound from a compact enclosure.
• 280 Watts of System Power - Smart DSP amplification provides dedicated power to the tweeters, mid-range drivers and woofers.
• Dolby Atmos® - Supports immersive Dolby Atmos home theatre audio along with Dolby Digital, Dolby Digital Plus™, Dolby TrueHD and LPCM.
• HDMI eARC - Connect directly to a compatible television through HDMI eARC for a streamlined home theatre setup.
• BluOS™ Multi-Room Streaming - Stream high-resolution music and group the soundbar with compatible Bluesound and BluOS components throughout your home.
• High-Resolution Audio - Supports audio up to 24-bit/192kHz along with MQA and DSD256 playback.
• AirPlay 2 - Stream from compatible Apple devices and integrate the soundbar into an AirPlay 2 multi-room system.
• Spotify Connect & TIDAL Connect - Built-in integration provides convenient direct streaming from supported services.
• Two-Way aptX™ Adaptive Bluetooth - Bluetooth 5.2 supports both transmitting and receiving audio.
• Dual-Band Wi-Fi & Gigabit Ethernet - Connect using dual-band Wi-Fi 5 or wired Gigabit Ethernet.
• Expandable Home Theatre - Add a compatible PULSE SUB+ wirelessly for deeper bass and Bluesound speakers for surround sound.
• Wired Subwoofer Support - Dedicated RCA subwoofer output provides another option for expanding low-frequency performance.
• Flexible Placement - Low-profile design can be placed on a media cabinet or wall mounted using the included mounting hardware.
• Quick-Touch Presets - Two programmable touch presets provide convenient access to favourite content.
• Proximity Sensor - Integrated proximity sensing complements the touch-control interface.
• IR Remote Learning - Built-in front IR sensor can learn commands from compatible infrared remote controls.

Specifications:

Audio:

• Speaker Configuration: 2.1 Channel
• Amplification: Smart DSP Amplifier
• Total System Power: 280 W
• Tweeter Amplification: 38 W x 2
• Mid-Range Amplification: 38 W x 2
• Woofer Amplification: 65 W x 2
• Tweeters: 2 x 0.75" (21 mm)
• Mid-Range Drivers: 2 x 1.5" (45 mm)
• Woofers: 2 x 4" (102 mm)
• Passive Radiators: 2 x 4" (102 mm)
• Distortion: THD+N 0.030%

Supported Audio:

• Native Sampling Rates: Up to 192kHz
• Bit Depth: 16-24 bit
• Audio Formats: MP3, AAC, WMA, WMA-L, OGG, OPUS
• High-Resolution Formats: FLAC, MQA, ALAC, WAV, AIFF, MPEG-4 SLS
• DSD: Up to DSD256
• Multi-Channel Formats: Dolby® Digital, Dolby Atmos®, Dolby Digital Plus™, Dolby® TrueHD and LPCM

Streaming & Software:

• Operating System: BluOS™
• Processor: Quad-Core ARM® Cortex™-A53, 1.8GHz per core
• Controller: BluOS Controller for iOS, Android, Windows and macOS
• Network File Sharing: SMB, up to 200,000 files
• Local Server Mode: Yes
• Integrations: AirPlay 2, Spotify Connect, TIDAL Connect, Roon Ready
• Control System Integration: Crestron, Control4, RTI, Nice, URC and Lutron
• Voice Integration: Amazon Alexa Skills

Connectivity:

• HDMI eARC
• Toslink Optical Input
• Stereo RCA Analog Input
• USB Type-A Input for FAT32/NTFS External Storage
• RCA Subwoofer Output
• Wireless Connection to PULSE SUB+
• Gigabit Ethernet RJ45
• Dual-Band Wi-Fi 5 (802.11ac)
• Bluetooth 5.2 with aptX™ Adaptive
• Two-Way Bluetooth Transmit & Receive
• Bluetooth Headphone Output

Dimensions & Weight:

• Tabletop: 33.34" W x 2.91" H x 5.51" D (850 x 74 x 140 mm)
• Wall Mounted: 33.34" W x 5.51" H x 3.33" D (850 x 140 x 84.5 mm)
• Weight: 11.46 lb (5.20 kg)
• Colour: Tan

Power & Environment:

• Power Supply: Universal 100-240V AC, 2-pin input
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: 14°F to 122°F (-10°C to 50°C)

What's in the Box:

• Bluesound PULSE CINEMA MINI - Tan
• 120V AC Power Cord
• 230V AC Power Cord
• Ethernet Cable
• HDMI Cable
• Wall Mount Bracket
• Wall Mount Template
• 2 x M6 Wall Mount Bolts
• Wall Mount Hex Tool
• Safety/Warranty Guide
• Quick Setup Guide
