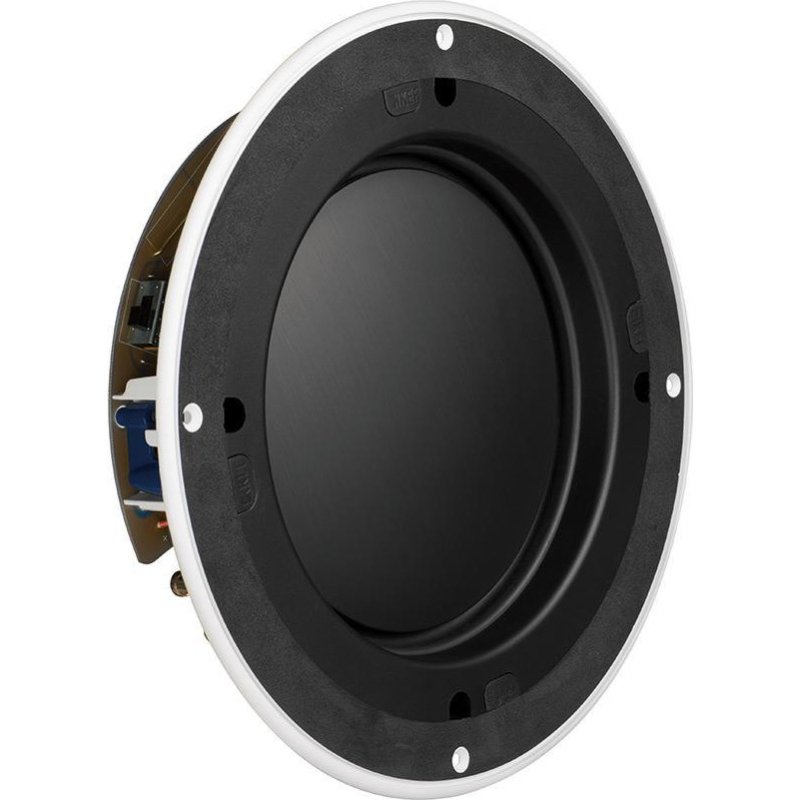

KEF Ci200TRb 8" Ultra-Slim In-Ceiling Architectural Subwoofer WHITE

The KEF Ci200TRb is an ultra-slim architectural subwoofer designed to deliver powerful, controlled and accurate bass from a discreet in-ceiling installation. Part of KEF's Ci-T Series, this innovative subwoofer combines a 200 mm (8") low-frequency driver with an exceptionally shallow mounting profile, making it an ideal solution for installations where conventional subwoofers or deep ceiling speakers are impractical.

With an external depth of just 63 mm (2.48") and a required mounting depth of only 59 mm (2.32"), the Ci200TRb can be integrated into spaces with limited ceiling clearance. Its compact design makes it particularly suitable for residential home theatres, multi-room audio systems, apartments and custom architectural installations where preserving interior aesthetics is essential.

The Ci200TRb supports both passive operation with compatible amplification and active operation using the optional KEF KASA500 subwoofer amplifier. When paired with the KASA500, dedicated digital signal processing extends bass performance down to 32 Hz (±6 dB), providing impressive low-frequency reproduction from its remarkably shallow enclosure.

Ultra-Slim Architectural Subwoofer Design

The Ci200TRb is engineered specifically for installations where available mounting depth is limited. Its shallow driver assembly allows the subwoofer to fit into suitable ceiling cavities that cannot accommodate many conventional architectural subwoofers.

Measuring 290 mm (11.42") in overall diameter and only 63 mm (2.48") deep, the Ci200TRb delivers dedicated low-frequency reinforcement while maintaining a discreet architectural appearance.

With a cutout diameter of 240 mm (9.45"), the subwoofer can be installed into a properly prepared ceiling opening, providing a space-saving alternative to traditional floor-standing subwoofers.

High-Performance 200 mm Bass Driver

At the heart of the Ci200TRb is a specially engineered 200 mm (8") low-frequency driver designed to reproduce bass within the constraints of an ultra-slim architectural enclosure.

The driver delivers controlled low-frequency output suitable for reinforcing music, movie soundtracks and television audio. Its maximum acoustic output of 109 dB SPL provides substantial dynamic capability for a compact in-ceiling subwoofer.

With a sensitivity of 87 dB (2.83V/1m), the Ci200TRb can be integrated into appropriately configured audio systems for dedicated bass reproduction.

Passive and Active Operating Modes

The Ci200TRb provides flexible integration options through its support for passive and active operating configurations.

In passive mode, the subwoofer operates with suitable external amplification and provides a specified frequency response of 42 Hz to 120 Hz (±6 dB). KEF recommends amplifier power of 10 to 125 watts for passive operation, with an adjustable low-pass filter set between 80 Hz and 120 Hz.

For enhanced performance, the Ci200TRb can be connected to the optional KEF KASA500 amplifier. This active configuration uses dedicated amplification and signal processing to extend the specified frequency response to 32 Hz to 120 Hz (±6 dB), providing deeper bass extension and optimized system control.

KEF KASA500 Amplifier Compatibility

The optional KEF KASA500 is a dedicated subwoofer amplifier designed to provide optimized amplification and digital signal processing for compatible KEF architectural subwoofers.

When the Ci200TRb is configured for active operation with the KASA500, the amplifier's processing optimizes low-frequency performance for the driver and installation environment. This arrangement provides a frequency range extending down to 25 Hz at the -10 dB point, subject to the selected KASA500 settings.

The KASA500 also supports adjustable low-pass filtering between 60 Hz and 120 Hz, allowing the subwoofer to integrate with compatible architectural speakers and home theatre systems.

The KEF KASA500 amplifier is sold separately.

Flexible Stereo and Mono Wiring Configurations

The Ci200TRb supports both stereo and mono connection configurations, providing flexibility when integrating the subwoofer into different audio systems.

In stereo mode, the subwoofer presents two 8-ohm connections, allowing suitable amplification of the individual channels. In mono mode, the nominal impedance is 16 ohms.

These configuration options allow the Ci200TRb to accommodate different amplifier arrangements, provided the installation follows KEF's recommended connection and amplifier requirements.

Deep Bass from a Discreet Ceiling Installation

The Ci200TRb is designed to reinforce the lowest frequencies in an architectural audio system without occupying valuable floor space. Installed within a suitable ceiling cavity, it can complement KEF in-ceiling and in-wall loudspeakers while maintaining a clean, uncluttered appearance.

This makes the subwoofer particularly useful in living rooms, bedrooms, home theatres and distributed audio installations where a conventional freestanding subwoofer would be undesirable.

Optimized Rear Cavity Requirements

The acoustic performance of an architectural subwoofer depends partly on the volume of the cavity behind the driver.

KEF specifies an ideal rear volume of 60 litres (2.12 cubic feet) for the Ci200TRb, with a minimum recommended rear volume of 35 litres (1.24 cubic feet). Providing an appropriate rear cavity volume helps the subwoofer achieve its intended low-frequency performance.

For installations requiring a dedicated enclosure, the optional KEF RNC200R rear enclosure provides an additional installation solution. The optional RIF200R rough-in frame can also assist with planning and preparing the ceiling opening during construction or renovation.

IP64 Environmental Protection

The Ci200TRb carries an IP64 protection rating, indicating dust-tight construction and resistance to splashing water.

This level of protection adds versatility for installations in suitable interior environments where dust or occasional moisture exposure may be a consideration. Installation conditions must remain consistent with the manufacturer's requirements and applicable building regulations.

Designed for KEF Architectural Audio Systems

The Ci200TRb is part of KEF's extensive architectural loudspeaker range and can be integrated with compatible KEF in-ceiling and in-wall speakers to create a complete, discreet audio system.

Its dedicated low-frequency performance helps extend the bass response of architectural loudspeakers, providing greater depth and impact for music and home theatre soundtracks.

For custom installations, the combination of ultra-shallow construction, configurable impedance and optional KASA500 amplification provides flexibility in both system design and speaker placement.

Features:

• Ultra-slim 8-inch architectural subwoofer designed for in-ceiling installation
• 200 mm (8") dedicated low-frequency driver
• Exceptionally shallow 63 mm (2.48") overall depth
• Requires only 59 mm (2.32") mounting depth
• Supports passive and active operating configurations
• Compatible with optional KEF KASA500 subwoofer amplifier
• Passive frequency response of 42 Hz to 120 Hz (±6 dB)
• Active frequency response of 32 Hz to 120 Hz (±6 dB) with KASA500
• Maximum acoustic output of 109 dB SPL
• 87 dB sensitivity (2.83V/1m)
• Selectable stereo and mono connection configurations
• Two 8-ohm channels in stereo mode
• 16-ohm nominal impedance in mono mode
• Recommended passive amplifier power of 10 to 125 watts
• Adjustable low-pass filtering with compatible amplification
• IP64-rated construction for dust and splash protection
• Ideal rear cavity volume of 60 litres
• Minimum recommended rear cavity volume of 35 litres
• Compatible with optional KEF RIF200R rough-in frame
• Compatible with optional KEF RNC200R rear enclosure
• Discreet architectural installation without occupying floor space
• Suitable for home theatre and distributed audio applications

Specifications:

General

• Brand: KEF
• Model: Ci200TRb
• Series: Ci-T Series
• Product Type: Architectural In-Ceiling Subwoofer
• Installation Type: Recessed Ceiling Mount
• Driver Configuration: Single Low-Frequency Driver
• Operating Modes: Passive or Active with Optional KEF KASA500
• Quantity: Each (1 Subwoofer)

Driver & Acoustic Performance

• Low-Frequency Driver: 200 mm (8")
• Sensitivity: 87 dB (2.83V/1m)
• Maximum Acoustic Output: 109 dB SPL
• Frequency Response, Passive Mode (±6 dB): 42 Hz - 120 Hz
• Frequency Range, Passive Mode (-10 dB): 38 Hz - 140 Hz
• Frequency Response, Active Mode with KASA500 (±6 dB): 32 Hz - 120 Hz
• Frequency Range, Active Mode (-10 dB): 25 Hz - KASA500 Setting Dependent

Impedance & Amplification

• Nominal Impedance, Stereo Mode: 2 x 8 Ohms
• Nominal Impedance, Mono Mode: 16 Ohms
• Recommended Amplifier Power, Passive Mode: 10 - 125 W
• Active Mode Amplifier: KEF KASA500 (Required for Active Mode, Sold Separately)
• Recommended Low-Pass Filter, Passive Mode: 80 Hz - 120 Hz
• Recommended Low-Pass Filter, Active Mode: 60 Hz - 120 Hz

Mounting & Installation

• Mounting Configuration: In-Ceiling
• Mounting Depth from Surface: 59 mm (2.32")
• Ceiling Cutout Diameter: 240 mm (9.45")
• Ideal Rear Volume: 60 Litres (2.12 cu. ft.)
• Minimum Rear Volume: 35 Litres (1.24 cu. ft.)
• Optional Rough-In Frame: KEF RIF200R (Sold Separately)
• Optional Rear Enclosure: KEF RNC200R (Sold Separately)

Environmental Protection

• Ingress Protection Rating: IP64
• Dust Protection: Dust-Tight (IP6X)
• Water Protection: Splash Resistant (IPX4)

Dimensions & Weight

• Overall Diameter: 290 mm (11.42")
• Overall Depth: 63 mm (2.48")
• Cutout Diameter: 240 mm (9.45")
• Mounting Depth: 59 mm (2.32")
• Net Weight: 1.7 kg (3.75 lbs)

What's in the Box:

• 1 x KEF Ci200TRb 8" Ultra-Slim In-Ceiling Subwoofer
