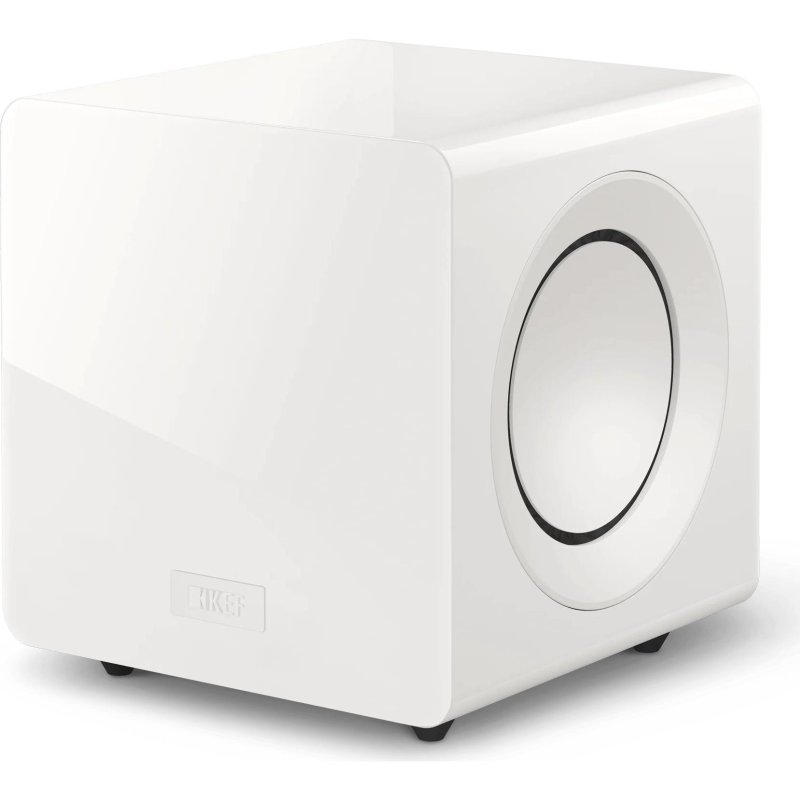

KEF KC92 9" Dual Driver Force-Cancelling Powered Subwoofer 1000W WHITE

The KEF KC92 is a high-performance powered subwoofer designed to deliver exceptionally deep, powerful and accurate bass from a compact sealed enclosure. Featuring two opposing 9-inch drivers, 1,000 watts RMS of Class D amplification and KEF's advanced Music Integrity Engine, the KC92 delivers remarkable low-frequency performance for premium stereo music systems and home theatre installations.

Combining a frequency response extending down to 11 Hz (±3 dB) with a maximum acoustic output of 110 dB, the KC92 reproduces everything from subtle musical details to powerful cinematic effects with outstanding control and precision. Its force-cancelling driver arrangement minimizes cabinet vibration while maintaining exceptional dynamic capability.

Finished in elegant White Gloss, the KC92 features a beautifully curved, compact sealed cabinet with a low-profile heatsink. Its sophisticated appearance and space-efficient design allow it to integrate naturally into a wide variety of listening environments.

Dual 9-Inch Force-Cancelling Drivers

The KC92 incorporates two 9-inch drivers positioned back-to-back in a force-cancelling configuration. By operating in opposition, the drivers neutralize reactive forces that would otherwise cause cabinet vibration, allowing more of the amplifier's energy to be converted into accurate low-frequency sound.

Each driver combines a shallow, concave aluminium skin with a paper cone, a powerful motor system and a vented voice-coil design. This hybrid construction provides excellent rigidity and controlled movement while minimizing distortion, even when reproducing demanding bass passages at elevated listening levels.

P-Flex Pressure-Resistant Surround Technology

KEF's innovative P-Flex driver surrounds are engineered to withstand the significant internal air pressure generated inside the KC92's sealed enclosure. Inspired by the folded structures of Japanese origami, their distinctive pleated construction resists acoustic pressure without compromising driver sensitivity.

This specialized design allows the drivers to maintain precise movement in response to the audio signal, resulting in greater bass extension, reduced distortion and improved reproduction of fine low-frequency details.

Music Integrity Engine Digital Signal Processing

At the heart of the KC92 is KEF's proprietary Music Integrity Engine (MIE), an advanced suite of digital signal processing algorithms developed to optimize the performance of the drivers, amplification and enclosure as a complete acoustic system.

By coordinating these components, the Music Integrity Engine enhances bass accuracy, output and dynamic response, allowing the KC92 to reproduce demanding recordings with exceptional clarity and authority.

iBX Intelligent Bass Extension

KEF's iBX Intelligent Bass Extension technology continuously analyzes incoming audio signals and dynamically optimizes low-frequency reproduction. This intelligent processing helps the KC92 maintain deep, controlled bass while delivering greater output and dynamic impact across different listening levels.

Whether reproducing quiet musical passages or powerful movie soundtracks, iBX allows the KC92 to deliver consistent bass performance without sacrificing precision.

1,000 Watts RMS of Class D Amplification

The KC92 features two dedicated 500-watt RMS Class D amplifiers, delivering a combined 1,000 watts RMS of amplification. Each driver is independently powered, providing the control and headroom required for accurate transient reproduction and substantial low-frequency output.

This powerful amplification system allows the KC92 to reproduce sudden bass transients with exceptional speed and precision while maintaining excellent performance during sustained low-frequency passages.

Versatile Audio Connectivity

The KC92 offers flexible connectivity for integration with stereo amplifiers, AV receivers and home theatre processors. RCA line-level inputs and speaker-level connections accommodate a wide variety of audio systems.

KEF SmartConnect technology automatically detects whether a mono or stereo RCA connection is being used and optimizes input gain accordingly. RCA line outputs with an adjustable high-pass filter provide additional flexibility when integrating the subwoofer with main loudspeakers or other audio equipment.

An expansion port supports the optional KEF KW1 Wireless Subwoofer Adapter Kit, allowing wireless audio connectivity when used with compatible equipment.

Five Room Placement Equalization Modes

The KC92 provides five preset Room Placement Equalization modes designed to optimize bass response according to its position within the listening environment.

Free Space, Wall, Corner, Cabinet and Apartment modes allow users to adapt low-frequency performance to different room arrangements. These settings help compensate for the acoustic effects of nearby walls, furniture and room boundaries.

Flexible Power Management and System Control

Three selectable power modes provide convenient operation across different system configurations. Music Sense automatically activates the subwoofer when an audio signal is detected, while 12V Trigger mode allows automatic power control from compatible equipment. Always On mode keeps the KC92 ready for immediate playback.

A USB-C service connection supports firmware updates, helping maintain compatibility with future performance enhancements.

Compact Sealed Cabinet Design

The KC92's compact sealed cabinet combines exceptional acoustic performance with versatile placement options. Its force-cancelling configuration minimizes enclosure vibration, while a low-profile heatsink helps maintain appropriate operating temperatures for the internal electronics.

Measuring 352.5 x 330 x 360.5 mm (13.88 x 13.00 x 14.19 inches), including the rear panel and feet, the KC92 delivers substantial low-frequency performance without occupying the space typically associated with powerful subwoofers.

Features:

• High-performance powered subwoofer with dual 9-inch force-cancelling drivers
• 1,000 watts RMS total Class D amplification (2 x 500W RMS)
• Frequency response of 11 Hz - 200 Hz (±3 dB)
• Maximum acoustic output of 110 dB
• Hybrid aluminium and paper cone driver construction
• KEF P-Flex pressure-resistant driver surrounds
• Music Integrity Engine (MIE) digital signal processing
• iBX Intelligent Bass Extension technology
• Five Room Placement Equalization modes
• Variable 40 Hz - 140 Hz low-pass filter with LFE setting
• Adjustable high-pass filtering for line-level outputs
• RCA line-level inputs and outputs
• Speaker-level inputs for flexible amplifier compatibility
• KEF SmartConnect automatic mono/stereo input detection
• 12V trigger, Music Sense and Always On power modes
• USB-C service connection for firmware updates
• Compatible with optional KEF KW1 wireless subwoofer adapter kit
• Compact sealed cabinet with low-profile heatsink
• Premium White Gloss finish

Specifications:

General

• Brand: KEF
• Model: KC92
• Product Type: Powered Subwoofer
• Finish: White Gloss
• Cabinet Design: Compact Sealed Enclosure
• Acoustic Configuration: Force-Cancelling Dual Driver

Driver & Acoustic Performance

• Driver Configuration: Dual Opposed Force-Cancelling Drivers
• Driver Size: 2 x 9" (229 mm)
• Driver Construction: Hybrid Aluminium Skin and Paper Cone
• Driver Surround: KEF P-Flex Pressure-Resistant Surround
• Frequency Response (±3 dB): 11 Hz - 200 Hz
• Maximum Acoustic Output: 110 dB

Amplification

• Amplifier Type: Built-In Class D
• Total Amplifier Power: 1,000W RMS
• Amplifier Configuration: 2 x 500W RMS

Digital Signal Processing

• DSP Engine: KEF Music Integrity Engine (MIE)
• Bass Extension: iBX Intelligent Bass Extension
• Room Placement Equalization: 5 Presets
• Placement Modes: Free Space, Wall, Corner, Cabinet, Apartment

Audio Controls

• Variable Low-Pass Filter: 40 Hz - 140 Hz, LFE
• Line Output High-Pass Filter: Adjustable 40 Hz - 120 Hz
• Phase Control: 0° / 180°
• Power Modes: Music Sense, 12V Trigger, Always On

Connectivity

• Line-Level Inputs: RCA Phono Sockets
• Speaker-Level Inputs: Yes, Euroblock Connection
• Line-Level Outputs: RCA Phono Sockets
• Automatic Input Detection: KEF SmartConnect
• 12V Trigger Input: Yes
• USB-C: Service and Firmware Updates
• Wireless Expansion: KEF KW1 Adapter Port
• Optional Wireless Accessory: KEF KW1 Wireless Subwoofer Adapter Kit (Sold Separately)

Power

• Power Requirements: 100-240V AC, 50/60 Hz
• Operating Power Consumption: 1,000W
• Standby Power Consumption: Less than 0.5W

Dimensions & Weight

• Dimensions (H x W x D): 352.5 x 330 x 360.5 mm (13.88 x 13.00 x 14.19")
• Dimensions Include: Rear Panel and Feet
• Weight: 20 kg (44.1 lbs)

What's in the Box:

• 1 x KEF KC92 Powered Subwoofer - White Gloss
• 1 x Power Cord
• 1 x Euroblock Speaker-Level Connector
• 1 x User Manual
