Details

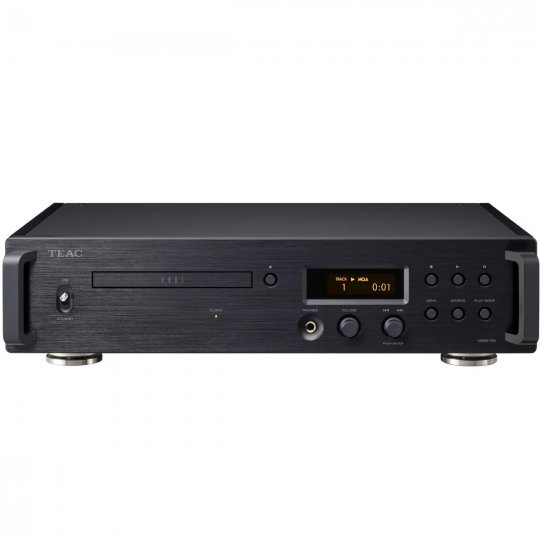

The TEAC VRDS-701 CD Player celebrates TEAC's 70th anniversary with cutting-edge technology and exceptional audio quality. This model features the newly-developed VRDS mechanism and a TEAC original discrete DAC to enhance your listening experience.

The VRDS-701 uses a unique VRDS mechanism that clamps the CD to an aluminum turntable, minimizing rotation vibration and improving audio stability. The discrete DAC section incorporates TEAC's proprietary algorithms to deliver superior sound quality with high-resolution formats.
Beyond traditional CD playback, the VRDS-701 supports MQA CDs, 22.5MHz DSD, and 384kHz/32-bit PCM formats via USB DAC, making it a versatile component in any high-fidelity audio setup.

Features

• Newly Developed VRDS Mechanism: Reduces vibration and stabilizes rotation with an aluminum turntable.
• TEAC ΔΣ Discrete DAC: Offers precise sound conversion with proprietary algorithms and FPGA technology.
• Dual Mono Structure: Utilizes separate transformers for left and right channels to minimize interference.
• Fully-Balanced Transmission: Enhances signal-to-noise ratio and dynamic range.
• TEAC-QVCS: Direct connection to power amplifiers with precise analog volume control.
• MQA Full Decoder: Enables high-quality MQA CD playback and decoding of MQA files via USB.
• USB DAC Capabilities: Supports 22.5MHz DSD and 384kHz/32-bit PCM data playback.
• Upconversion with RDOT-NEO: Provides 2×, 4×, and 8× upconversion of PCM digital signals.
• 10MHz External Clock Input: Allows synchronization with an external clock generator.
• High-Precision Clocks: Supports 44.1kHz and 48kHz with low-phase-noise crystal oscillators.
• Enhanced Power Supply: Uses three high-capacity toroidal core transformers for stable current supply.
• TEAC-HCLD2 Output Buffer: Provides high-current output capability for dynamic audio transmission.
• High-Output Headphone Amp: Delivers low distortion and high signal-to-noise ratio for headphones.
• Bulk Pet USB Communication: Ensures stable data transmission for high-resolution audio.
• Vibration Control: Features floating power transformers and machined steel pinpoint feet to minimize vibrations.
• Control Connectors: Includes RS-232C and trigger connectors for system integration.
• TEAC HR Audio Player: Free software for easy playback of high-resolution audio sources from Windows and Macintosh computers.

Specifications

• Supported Media: Audio CD, CD-R/CD-RW (8cm CDs not supported)
• Frequency Response: 5Hz to 80kHz (+1dB, –6dB)
• S/N Ratio: 108dB (A-weight, 1kHz)
• Total Harmonic Distortion: 0.002% (1kHz, LPF: 20Hz to 20kHz)
• Analog Audio Outputs:
• Balanced: XLR × 1 pair; Max Output Level: 2.0Vrms (FIXED 0dB), 4.0Vrms (FIXED +6dB), 12Vrms (VARIABLE); Output Impedance: 220Ω
• Unbalanced: RCA × 1 pair; Max Output Level: 2.0Vrms (FIXED 0dB), 4.0Vrms (FIXED +6dB), 6Vrms (VARIABLE); Output Impedance: 180Ω
• Digital Audio Inputs:
• USB: Type-C × 1; Supported Formats: PCM (16/24/32bit, up to 384kHz), DSD (2.8M/5.6M/11.2M/22.5MHz)
• COAXIAL: RCA × 1; Input Level: 0.5Vp-p; Input Impedance: 75Ω; Supported Formats: PCM (16/24bit, up to 192kHz), DSD (2.8MHz)
• OPTICAL: TOS × 1; Input Level: –24.0 to –14.5dBm peak; Supported Formats: PCM (16/24bit, up to 192kHz), DSD (2.8MHz)
• Digital Audio Outputs:
• COAXIAL: RCA × 1; Output Level: 0.5Vp-p; Output Impedance: 75Ω
• OPTICAL: TOS × 1
• Headphones Out: ¼″ (6.3mm) Stereo jack × 1; Max Output: 500mW + 500mW (into 32Ω)
• Clock Sync Input: BNC × 1; Input Frequency: 10MHz; Input Impedance: 50Ω; Input Level: Rectangle wave (TTL level), Sine wave (0.5 to 1.0Vrms)
• External Control:
• Trigger In: 3.5mm Mono mini jack × 1; Input Level: 12V, 1mA
• Trigger Out: 3.5mm Mono mini jack × 1; Output Level: 12V; Max Current Supply: 100mA
• Power: AC120V, 60Hz or AC220-240V, 50/60Hz; Power Consumption: 20W; Standby Power: 0.4W
• Overall Dimensions: 444 (W) × 111 (H) × 333 (D) mm (including protrusions)
• Weight: 11.1kg
• Operating Temperature: +5℃ to +35℃
• Operating Humidity: 5% to 85% (no condensation)
• Storage Temperature Range: −20℃ to +55℃
• Included Accessories: AC cord, Remote control (RC-1338), AAA batteries × 2, Foot pads × 3, Owner's manual
