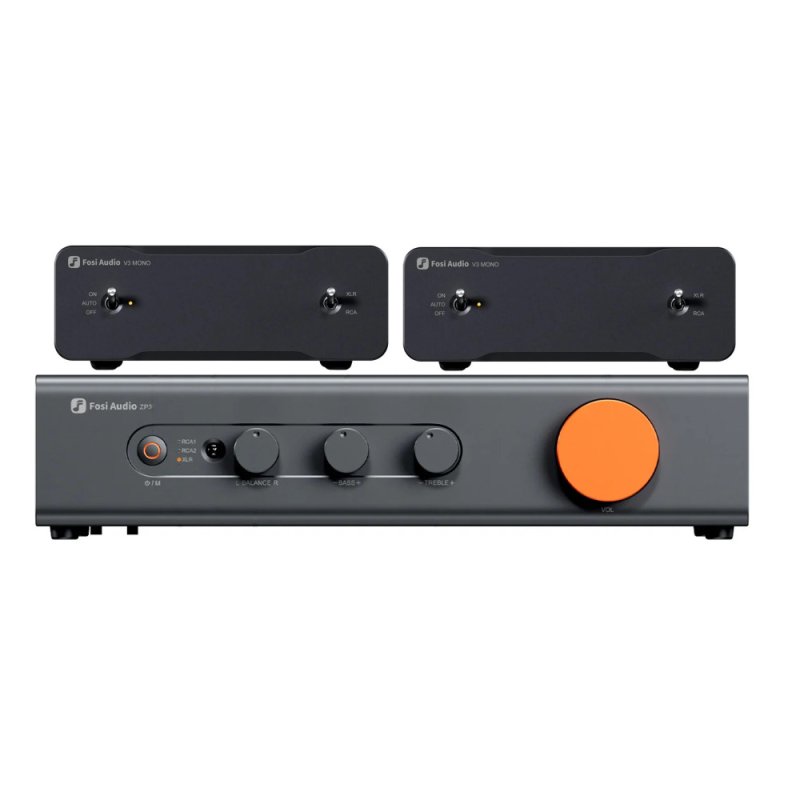

Fosi Audio ZP3 Balanced Preamp & Dual V3 Mono Power Amplifier Bundle BLACK

This Fosi Audio bundle combines the ZP3 balanced preamplifier with two V3 Mono power amplifiers to create a compact preamp and dual-mono amplification system for passive speakers.

The ZP3 provides both balanced XLR and unbalanced RCA connectivity, adjustable gain, bass and treble controls, and a fully balanced dual-mono internal design for clean signal control.

Each V3 Mono provides a dedicated mono amplification channel using efficient Class D amplification, allowing one amplifier to drive the left speaker and the second to drive the right speaker in a dual-mono configuration.

Bundle Includes

• 1 x Fosi Audio ZP3 Balanced Preamp BLACK - Model ZP3
• 2 x Fosi Audio V3 Mono 300 W Hi-Fi Audio Amplifier BLACK - Model V3-48V

Features

• Fully balanced XLR and unbalanced RCA inputs and outputs on the ZP3.
• Dual-mono internal architecture with independent left and right channel paths.
• Adjustable gain switch for input level optimization.
• Dedicated bass and treble tone controls.
• Compact aluminum alloy chassis.
• Two dedicated V3 Mono Class D power amplifiers.
• 300 W x 1 mono-channel output per V3 Mono amplifier.
• Low-distortion Class D amplification.
• Compatible with 4-8 ohm passive speakers.
• Binding-post speaker outputs with banana plug compatibility.
• Compact dual-mono system for bookshelf or floorstanding speakers.

Fosi Audio ZP3 Specifications

• Model: ZP3
• Inputs: 1 x Balanced XLR, 1 x Unbalanced RCA
• Outputs: 1 x Balanced XLR, 1 x Unbalanced RCA
• Input Sensitivity: 2 Vrms XLR, 1 Vrms RCA
• Maximum Output Voltage: 6.5 Vrms XLR, 3.2 Vrms RCA
• Frequency Response: 20 Hz-50 kHz (+/-1 dB)
• Signal-to-Noise Ratio: ≥110 dB
• THD+N: <0.0005% at 1 kHz
• Tone Control: +/-10 dB bass and treble, centered at approximately 100 Hz and 10 kHz
• Gain Switch: +6 dB / 0 dB
• Power Supply: 24 V DC
• Dimensions: 4.72 x 1.38 x 4.53 in / 120 x 35 x 115 mm (W x H x D)
• Weight: 1.32 lb / 0.6 kg

Fosi Audio V3 Mono Specifications

• Model: V3 Mono
• Quantity: 2
• Amplifier Type: Class D
• Output Power: 300 W x 1 at 4 ohms, 24 V
• THD+N: ≤0.003%
• Signal-to-Noise Ratio: ≥110 dB
• Input Sensitivity: 2 V
• Input: RCA Stereo
• Output: Binding posts, banana plug compatible
• Speaker Impedance: 4-8 ohms
• Power Supply: DC 24 V included
• Dimensions: 4.13 x 1.38 x 5.51 in / 105 x 35 x 140 mm (W x H x D)
• Weight: 1.32 lb / 0.6 kg each

What's in the Box

• 1 x Fosi Audio ZP3 Balanced Preamp BLACK
• 2 x Fosi Audio V3 Mono 300 W Hi-Fi Audio Amplifiers BLACK
