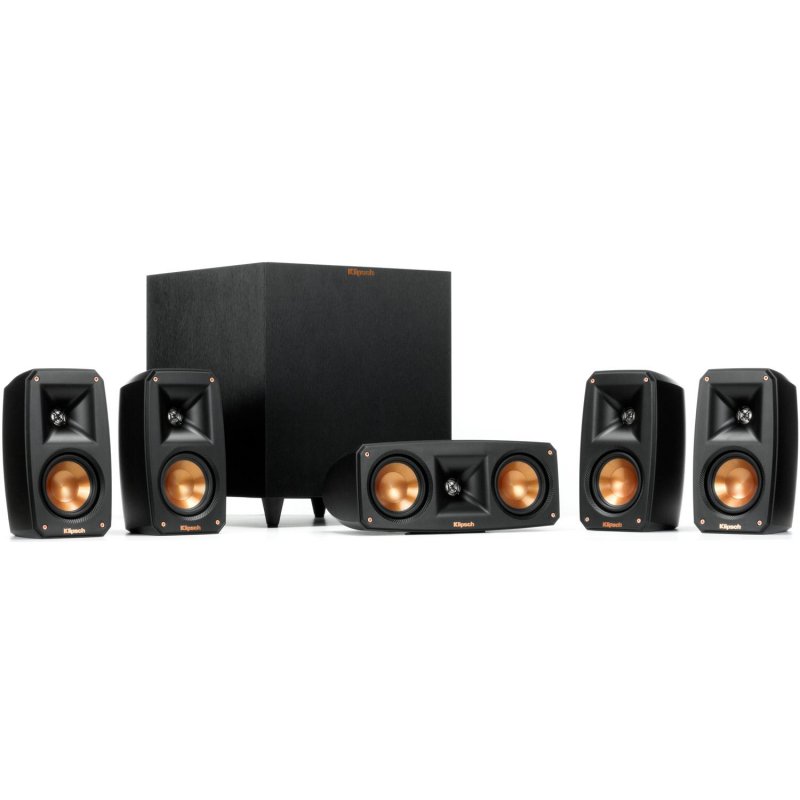

We've taken the premium materials and acoustic technology of our revered Reference series and designed a beautiful 5.1 surround sound system to pair with your favorite AV receiver. Complete with a wireless subwoofer, the Reference Theater Pack brings the Klipsch cinematic sound into your home with an incredibly minimal footprint.

Features:

• Flexible System Placement
• Wireless High Fidelity Subwoofer
• Cinematic Acoustics
• Spun Copper IMG Woofers
• Linear Travel Suspension Horn-Loaded Tweeters

Cinematic Performance

The Reference Theater Pack delivers superior acoustic performance by leveraging Injection Molded Graphite (IMG) woofers. These exceptionally lightweight cones are extremely rigid – providing remarkable low frequency response, with minimal cone breakup and distortion.

A Linear Travel Suspension (LTS) tweeter minimizes distortion for enhanced, detailed performance. LTS tweeters have been a hallmark of our Reference series product lines, making it a core component of some of the best speakers in the world.

Horn-loaded Power

Our exclusive Tractrix Horn Technology and aluminum tweeters deliver the most impressive high-end response and greater extension, enhanced imaging and powerful dynamics. This creates the cleanest, most natural sound possible.

Wireless, Robust Bass

The down-firing wireless subwoofer is designed to deliver room-filling low frequencies without requiring too much floorspace. The 2.4GHz connectivity allows for premium, CD-quality sound anywhere in the room. Simply connect the compact, pre-paired transmitter to the subwoofer or LFE out on your receiver and place the subwoofer where it sounds and fits best in your room. The built-in all-digital subwoofer amplifier delivers ample power with high efficiency and true-to-source accuracy.

Flexible System Placement

To complement the easy placement of the wireless subwoofer, each satellite speaker has a keyhole mount and a ¼" x 20 threaded insert (the center channel has dual keyhole / inserts) for maximum mounting flexibility.

Specifications:

Satellite & Center Channel

• Frequency Response: 110Hz – 23kHz +/– 3dB
• Nominal Impedance: 8 ohms compatible
• Sensitivity: Satellite: 91dB @ 2.83 volts / 1 meter, Center: 94dB @ 2.83 volts / 1 meter
• Power Handling: Satellite: 50 watts (200 watts peak), Center: 75 watts (300 watts peak)
• High Frequency Driver: Satellite & Center: 3/4" (1.9 cm) aluminum diaphragm, compression driver mated to 90° x 90° Tractrix® horn
• Low Frequency Driver: Satellite: 3.5" (8.9 cm) copper IMG woofer, Center: Dual 3.5" (8.9 cm) copper IMG woofer
• Dimensions Satellite: 7.75" H (19.7cm) x 4.38" W (11.1cm) x 5.37" D (13.7cm), Center: 4.38" H (11.1cm) x 10.75" W (27.3cm) x 5.37"D (13.7cm)
• Weight Satellite: 3 Ibs (1.4kg), Center: 5 Ibs (2.3kg)
• Mounting Satellite: Keyhole and 1/4" x 20 threaded insert, Center: Dual Keyhole with dual 1/4" x 20 threaded insert
• Speaker Wire: 14–18 gauge compatible

Subwoofer:

• Frequency Response: 38Hz – 120Hz +/– 3dB
• Amplifier Power: 50 watts / 150 watts peak
• Maximum Acoustic Output: 108 dB
• Inputs: 2.4 GHz CD-quality wireless & Line level / LFE RCA jacks
• Enclosure Material: MDF
• Enclosure Type: Bass Reflex via down-firing 8" woofer and port
• Dimensions: 13.25" H (33.7cm) x 11.75" W (29.9cm) x 11.75" D (29.9cm)
• Finish: Brushed Black Polymer Veneer
• Weight: 15.0 Ibs (6.8kg)
