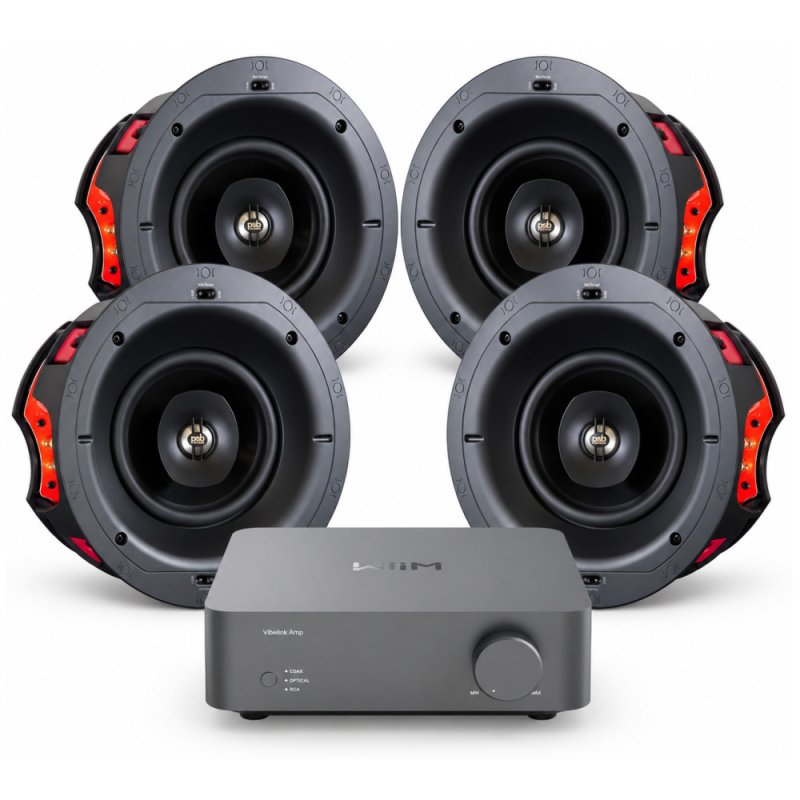

WiiM Vibelink Amp & PSB CS605 4-Speaker In-Ceiling Audio Bundle

Build an in-ceiling audio system with the WiiM Vibelink Amp and four PSB CS605 loudspeakers. The amplifier provides stereo power, while the flush-mount speakers offer a discreet way to bring music into your space.

The Vibelink Amp accepts analog RCA, optical and coaxial audio inputs. Each CS605 combines a 165 mm (6½ in) woofer with a 19 mm (¾ in) tweeter and includes a round magnetic frameless grille. Speaker wiring and installation should be planned around the amplifier's two-channel outputs and the speakers' impedance requirements.

Bundle Includes

• 1 × WiiM Vibelink Amp 100W Power Amplifier with Premium ESS 9039Q2M DAC and TI TPA3255
• 4 × PSB CS605 2-Way in-Ceiling Loudspeaker (Each)

Features

• WiiM Vibelink Amp delivers 100W per channel at 8 ohms.
• ESS 9039Q2M DAC supports digital audio up to 192 kHz/24-bit.
• Analog RCA input provides a signal path without analog-to-digital conversion.
• Optical and coaxial inputs offer additional source connections.
• Four PSB CS605 two-way, flush-mount in-ceiling speakers feature 165 mm (6½ in) woofers and 19 mm (¾ in) tweeters.
• Each CS605 includes a round magnetic frameless grille and uses heavy-duty mounting doglegs.

Specifications

WiiM Vibelink Amp

• Amplifier: Class D with post-filter feedback
• Output power: 100W per channel at 8 ohms
• Supported speaker impedance: 3–8 ohms
• DAC: ESS 9039Q2M
• Digital audio: PCM up to 192 kHz/24-bit
• Inputs: 1 × stereo RCA, 1 × optical, 1 × coaxial, 12V trigger
• Speaker outputs: Gold-plated binding posts
• Auto standby: After 30 or 60 minutes of inactivity
• Dimensions: 7.9 × 7.9 × 2.58 in (200 × 200 × 63 mm)
• Unit weight: 4.5 lb (2.05 kg)

PSB CS605 In-Ceiling Loudspeaker — Each of Four

• Design: Two-way, open-back, flush-mount in-ceiling speaker
• Woofer: 6½ in (165 mm) black polypropylene cone
• Tweeter: ¾ in (19 mm) treated textile dome
• Frequency response, on axis ±3 dB: 50–20,000 Hz
• Sensitivity: 85 dB anechoic; 87 dB in-room
• Impedance: 6 ohms nominal; 4 ohms minimum
• Recommended input power: 10–100W
• Cutout diameter: 8⅜ in (212 mm)
• Mounting depth: 4½ in (114 mm)
• Round grille diameter: 9⁷⁄₁₆ in (240 mm)
• Unit weight: 4.6 lb (2.1 kg)
• Finish: White

What's in the Box

• 1 × WiiM Vibelink Amp
• 4 × PSB CS605 in-ceiling loudspeakers
