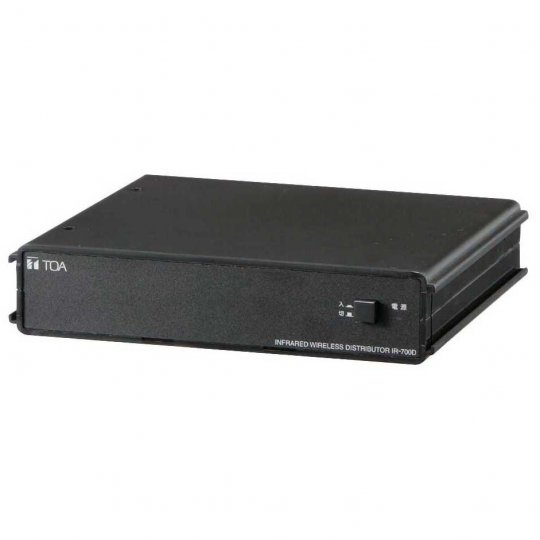

The IR-700D is a receiver distributor used in the TOA's infrared wireless microphone system. It employs 4 receiver mixing inputs and 2 distribution outputs. By using the IR-700D in conjunction with the IR-702T Infrared Wireless Tuner, up to 16 infrared wireless receivers can be connected to the IR-702T.

Specifications:

• Power Source: AC mains, 50/60 Hz (use of the supplied AC adapter)
• Power Consumption: 25 W or less
• Input/Output: 4 mixing inputs, 2 distribution outputs
• Band-Pass Frequency: 3.0 - 6.0 MHz
• Gain: 0 dB (±3 dB)
• Infrared Receiver Input: 75 Ω, BNC jack x 4 (Infrared wireless receiver's power source: 24 V DC, 800 mA max. in total of 4 terminals)
• Number of Connectable Conference Receiver: 16 (YW-1024 x 4)
• Distribution Output: 75 Ω, BNC jack
• Operating Temperature: -10 °C to +50 °C (14 °F to 122 °F)
• Operating Humidity: 30 % to 85 %RH (no condensation)
• Finish: Case: ABS resin, black
• Dimensions: 210 (W) x 44 (H) x 200.9 (D) mm (8.27" x 1.73" x 7.91")
• Weight: 640 g (1.41 lb) (unit only)
• Accessory: AC adapter (DC cord length: 1.8 m (5.91 ft))* ...1, AC Power cord (2 m (6.56 ft)) ...1, BNC plug-to-BNC plug cord (50 cm (1.64 ft)) ...1, Rubber foot ...4
• Option: Rack mounting bracket: MB-WT3, MB-WT4 (for mounting with the optional IR-702T together)
