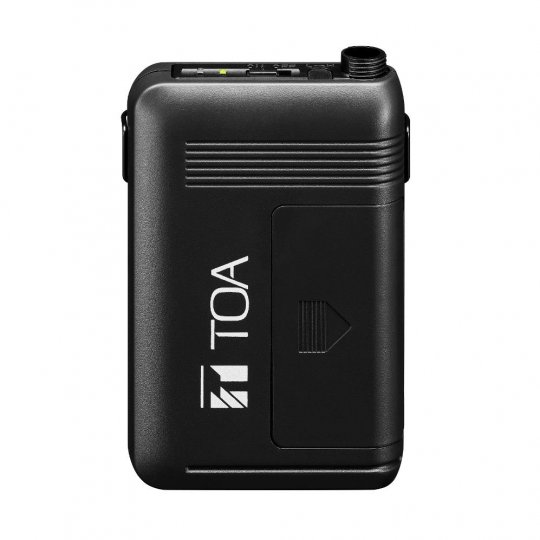

Rechargeable UHF Body-pack Transmitter

• Omnidirectional electret condenser microphone and cable (4.25 ft.)
• Lightweight bodypack
• 64 selectable channels
• Single AA battery (ten hours)
• Screw-on 3.5mm mini-plug connector
• Adjustable mic sensitivity
• Built-in concealed antenna
• Low battery indication
• Mic clip, neck strap and carrying pouch included

Compatible with receiver models:

• WT-5800, WT-5805
• WT-5810, WT-4820

Specifications:

• Frequency Range: 576 - 937.5 MHz (*2), UHF
• Channel Selectable: 64 channels (the number of channels may differ from country to country)
• RF Carrier Power: 50 mW or less
• Tone Frequency: 32.768 kHz
• Oscillator: PLL synthesized
• Maximum Input Level: -14 dB to -29 dB (*1) (Audio level control: Min. to Max.)
• Maximum Deviation: ±40 kHz
• Audio Frequency Response: 100 Hz - 15 kHz
• Battery: WB-2000 (WB-2000-2 contains 2 pieces) rechargeable battery (option) or AA alkaline dry cell battery
• Battery Life: Approx. 13 h (when the WB-2000 rechargeable battery is used), Approx. 10 h (when the alkaline battery is used)
• Indicator: Power/Battery lamps
• Antenna: Built-in type
• Connector: ø3.5 mm (00.14") mini plug
• Operating Temperature: -10 °C to +50 °C (14 °F to 122 °F) (except battery)
• Operating Humidity: 30 % to 85 %RH (no condensation)
• Finish: Resin, coating
• Dimensions: 62 (W) x 102.5 (H) x 23 (D) mm (2.44" x 4.04" x 0.91")
• Weight: 90 q (0.2 lb) (with battery)
• Accessory: Screw driver ...1, Storage case -.1, Neck strap -.1
