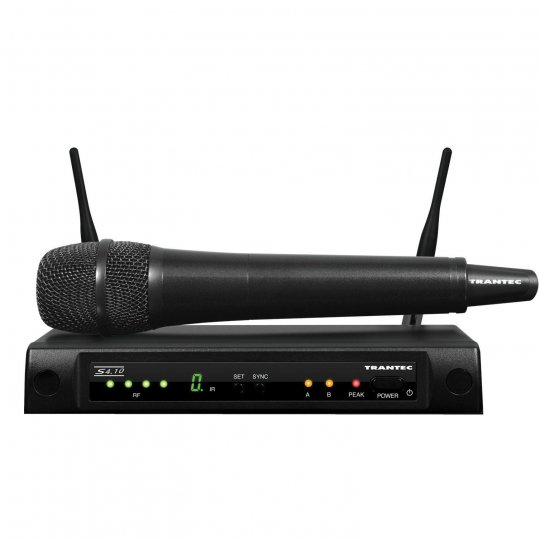

Explore Wireless Freedom with the S4.10 Microphone System

Elevate your audio experience with the S4.10, a versatile wireless microphone system that offers up to 16 channels for flexible mic configurations. Whether you prefer handheld or beltpack setups, the S4.10 has you covered with its complete system options.

The innovative IR Sync feature simplifies the channel setup process by using Infrared auto channel selection, eliminating the guesswork and ensuring seamless operation for your microphone.

Equipped with a Numerical LED display and transmitter battery life indication, the S4.10 provides user-friendly controls and monitoring. Adjust the output level to suit your preferences and enjoy the convenience of a wireless setup with an approximate 100m operating range (line of sight).

Product Specifications

S4.10-HD-AM RM3QU - Kit

• Wireless Transmitter: 1
• Receiver: 1
• Lavalier Microphone: 1
• Frequency Range: 506 - 538 MHz (*1), UHF (M band)
• Channel Selectable: Up to 16 channels (depending on region)
• Tunable Frequencies: 25kHz Steps
• Function: IR Sync, Channel Scan, Battery Life Information

S4.10-HDX-AMWM3QU - Microphone

• Microphone Element: Back electret condenser; Omnidirectional
• RF Carrier Power: 10mW
• Audio Frequency Response: 50 - 15000 Hz
• Audio Input Level: -6dBV (maximum), mic gain 0dB
• Modulation System: PLL synthesizer
• Battery Life: Approx. 10 hours
• Power Supply: 11-18 VDC 300 mA
• Dimensions: 62(W) x 100(H) x 25(D) mm (with clip)
• Weight: Approx. 85 g (with battery)

S4.10-RXA-AMRM3QU - Receiver

• Diversity Reception: Antenna Diversity
• Sensitivity: 10uV at 45 dBA S/N
• Squelch: Tone SQ, Carrier SQ, Noise SQ
• Audio Frequency Response: 50 - 15000Hz
• Audio Output Level: Balanced (XLR socket) : -16 dBu, Unbalanced (1/4" jack socket) : 10 dBu
• Power Supply: 11-18 VDC 300 mA
• Dimensions: 215(W) x 39(H) x 102(D)mm (excluding antenna and BNC)
• Weight: 480g
