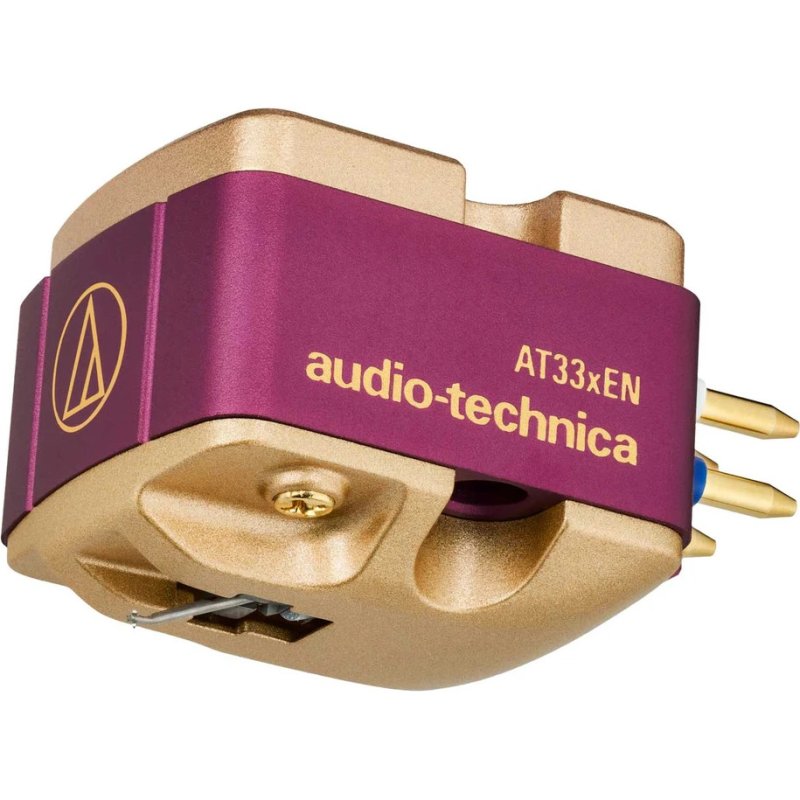

Audio-Technica AT-33xEN Dual Moving Coil Stereo Cartridge Nude Elliptical
The Audio-Technica AT-33xEN is a dual moving coil stereo cartridge engineered for detailed, warm, and full-bodied analogue playback. Its nude elliptical stylus, tapered duralumin pipe cantilever, and newly developed suspension system provide accurate groove tracking with strong high-frequency control.
A composite die-cast zinc, aluminum, and high-rigidity polymer body helps disperse resonance for balanced sound, while independent PCOCC coils, a neodymium magnet, and permendur yoke support clean signal transfer and responsive, high-resolution performance.
Features
- AT33x Series dual moving coil stereo cartridge
- 0.3 x 0.7 mil nude elliptical stylus
- Warm, full-bodied sound suited to a wide variety of recordings
- Independent left and right PCOCC coils for strong channel separation
- Neodymium magnet and permendur yoke for efficient power generation
- Tapered duralumin pipe cantilever for enhanced high-frequency control
- Composite die-cast zinc, aluminum, and high-rigidity polymer body helps reduce resonance
- Newly developed suspension mechanism and rubber damper design
- Gold-plated terminal pins help reduce contact resistance
- Threaded mounting holes for straightforward headshell installation
- Hand-finished in Japan
Specifications
General
- Model: AT-33xEN
- UPC: 4961310164041
- Type: Dual moving coil stereo cartridge
- Frequency response: 20 Hz to 40 kHz
- Output voltage: 0.4 mV (1 kHz, 5 cm/sec.)
- Channel separation: 27 dB (1 kHz)
- Output balance: 1.0 dB (1 kHz)
- Tracking force: 1.8 to 2.2 g; 2.0 g standard
- Coil impedance: 12 ohms (1 kHz)
- DC resistance: 12 ohms
- Recommended load impedance: 100 ohms or greater with head amplifier connected
- Coil inductance: 26 µH (1 kHz)
- Static compliance: 21 x 10-6 cm/dyne
- Dynamic compliance: 6 x 10-6 cm/dyne (100 Hz)
- Stylus: Nude elliptical
- Stylus curvature radius: 0.3 x 0.7 mil
- Cantilever: Tapered duralumin pipe
- Vertical tracking angle: 19°
- Threaded holes: M2.6 x 2
- Dimensions: 16.1 x 16.6 x 26.1 mm (H x W x D)
- Cartridge weight: 10.1 g (0.36 oz)
What’s in the Box
- Audio-Technica AT-33xEN dual moving coil cartridge
- Non-magnetic screwdriver
- Brush
- Washers x 2
- Cartridge installation screws (M2.6)
- Cartridge protector
