Manual Turntable

Ingenious Entry To The World Of Luxurious Styling For Audiophiles

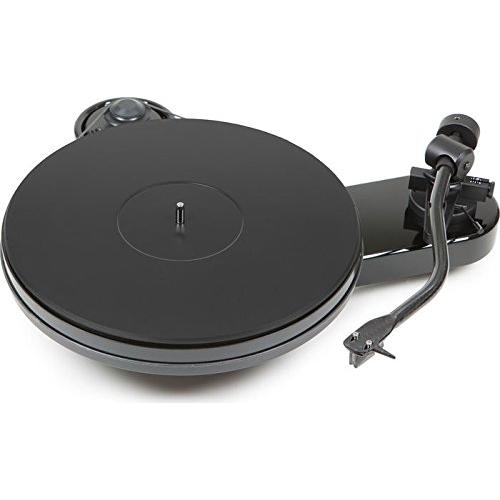

RPM 3 Carbon utilises evolutionary enhancements to improve the performance of the RPM series: A low resonance chassis holds an inverted platter bearing with ceramic ball for further reduced rumble. An outboard 15V AC motor is smoothly driven using an ultra precision AC generator with DC power supply for further enhanced speed stability.

A 10" S-shaped tonearm tube is made from carbon fibre, aluminium and resin. Using a complex 3-step process with heat treatment and 100bar pressure, the arm tube rigidity is strenghtened, internal damping is maximized and resonances are reduced to a minimum. This makes the tonearm also suitable for MC cartridges. Additional features are a magnetic antiskating mechanism and a TPE-damped counterweight. All ingredients add up to a miracle in sound for the price and ultra-stylish look!

Features:

• Precision belt drive using free-standing synchronous motor
• Central mass point optimizes vibrancy behaviour
• Ultra precision DC-driven AC generator motor power
• Inverted platter bearing with ceramic ball
• Platter made from MDF using vinyl mat
• 10" S-shaped tonearm made from carbon, aluminium, resin utilising special heat and pressure treatments
• Magnetic antiskating
• Counterweight with TPE damping
• Available with or without Ortofon 2M Silver cartridge

Specifications:

• Speed: 33, 45 (manual speed change)
• Drive principle: Belt drive
• Platter: 300 mm MDF
• Mains bearing: Stainless steel axle with ceramic ball
• Speed drift: 33: +/- 0.14% I 45: +/- 0.11%
• Wow & flutter: 33: +/- 0.19% I 45: +/- 0.08%
• Signal to noise: - 71dB
• Tonearm: 10" carbon; aluminium and resin
• Effective arm length: 254 mm
• Effective arm mass: 16 g
• Overhang: 16 mm
• Tracking force: 0 - 25 mN
• Included accessories: 15 volts DC / 500 mA power supply
• Power connection: 110/240 Volt - 50 or 60 Hz
• Power consumption: 5 watt max / < 0,5 watt standby
• Dimensions: 422 x 118 x 373 mm (WxHxD)
• Weight: 5.5 kg net
