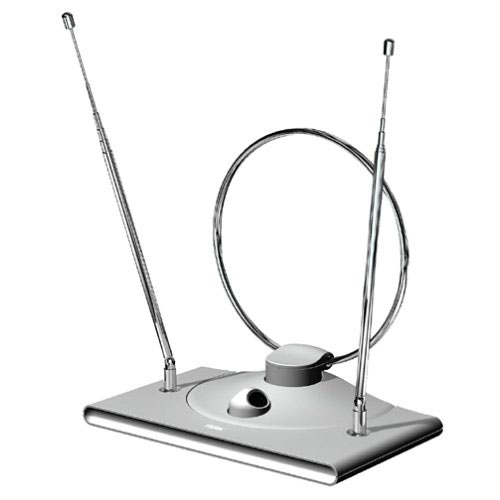

The TV3 antenna is a perfect primary or secondary set-top antenna in suburban or outlying areas. Offers the performance of a highquality amplified rabbit ear antenna with the convenience of an integrated video switch, creating a one-cable solution for a video game, DVD player, VCR or other video component.

• A 75 ohm coaxial cable and 75-300 ohm matching transformer is included to ensure compatibility with any television set, and a non-skid silicon base adds maximum stability.
• The antenna's low-noise broadband amplifier boosts weaker signals for maximum reception range and clarity. The amplifier features one-touch adjustment for all stations.
• TERk's patented selectable amplifier bypass prevents overmodulation of stronger incoming signals.
• Indoor television antennas are engineered with premium materials resulting in a durable, high-performance antenna that will look great on any TV for years to come.
• Adjustable, ultra low noise amplifier helps to boost distant signals, or turn down the boost to prevent stronger signals from overpowering the desired channel.
• Built-in Video Selector switch allows you to switch between broadcast TV and a video source, such as DVD, VCR or a video game.
• Non-skid silicon base ensures maximum stability on any set-top.

Amplifier Gain

• VHF: 15dB adjustable
  UHF: 15dB adjustable

Output Jitter

• 75 Ohms (75-300 Ohm

Operating Bandwidth

• VHF: 54 MHz-216 MHz (Channels 2-13)
  UHF: 470 MHz-806 MHz (Channels 14-69)
  AUX: 54 MHz-1000 MHz

Dimensions

• Base: 8"L x 4-1/4"D
  Height of base: 2"
  Height of base (including UHF loop): 9"
  Length of dipoles: Closed 7-1/2", Open 44"

Power Supply

• AC to DC adapter 110V

One-Year Manufacturer's Warranty
