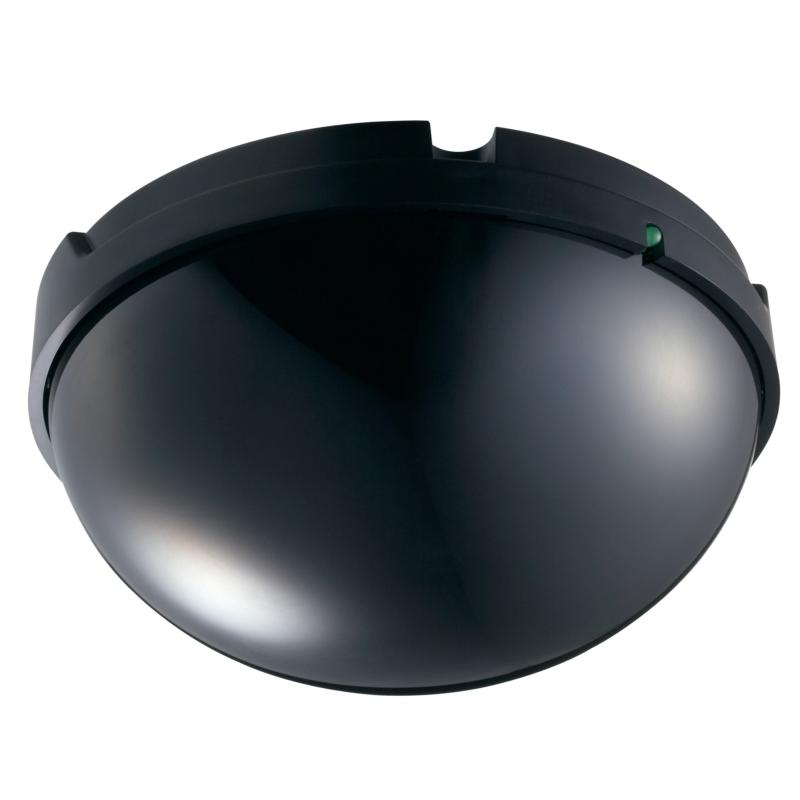

The IR-510R Infrared Wireless Receiver is designed for exclusive use with the IR-702T Infrared Wireless Tuner. It can be mounted to a ceiling.
Specifications:
- Power Source: 24 V DC (supplied from the IR-702T)
- Current Consumption: Max. 60 mA
Infrared Detector:
- Wavelength: 870 nm
- Carrier Frequency: Channel A: 3.100 MHz, Channel B: 3.350 MHz
- Communication Area: Approx. 7 m (22.97 ft) in radius from the point underneath the unit, (Ceiling height: 2.5 - 3.0 m (8.2 - 9.84 ft), in a space without any obstacle)
- Connection Terminal: 75 Ω, BNC jack
- Operating Temperature: 0 °C to +40 °C (32 °F to 104 °F)
- Operating Humidity: 30 % to 85 %RH (no condensation)
- Finish: Filter section: Polycarbonate, optical cut filter, Base: ABS resin, black
- Dimensions: φ120 x 71.3 (H) mm (φ4.72" x 2.81")
- Weight: 205 g (0.45 lb) (unit only)
- Accessory: Mounting bracket ...1
