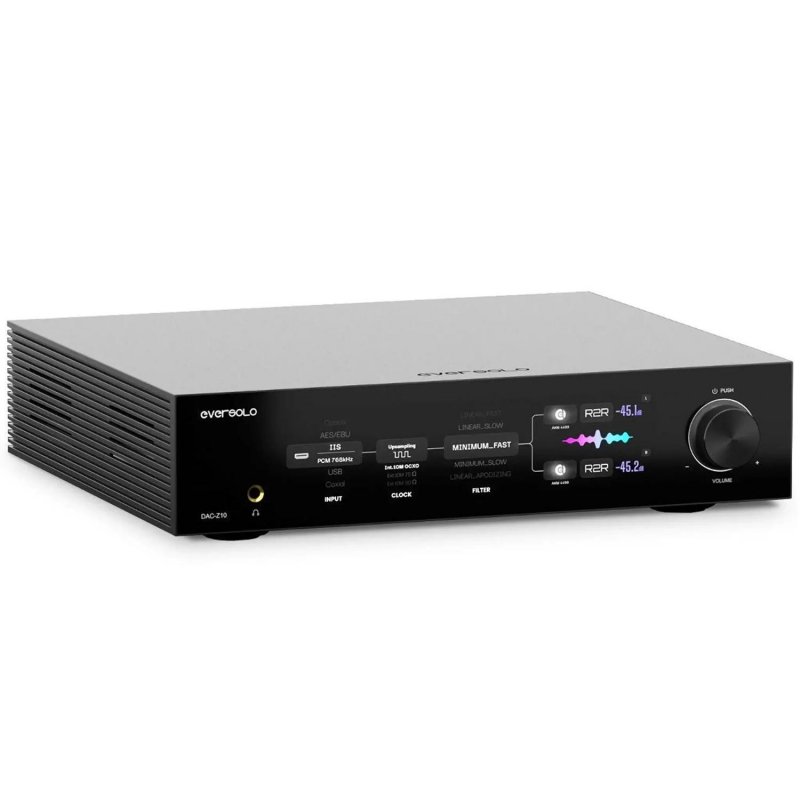

Eversolo DAC-Z10 High-Fidelity Desktop DAC & Balanced Preamplifier

From digital to analog, the Eversolo DAC-Z10 lets music unfold in its purest form — a fully isolated, dual-mono DAC designed to reveal the authentic character and finest details of every recording. Built on Eversolo’s FIA™ (Fully Isolated Architecture), it separates digital and analog domains, ensuring the cleanest possible signal path. With flagship AKM AK4191 + AK4499 DACs per channel, triple linear power supplies, and precision R2R volume control, the DAC-Z10 delivers true reference-grade sound and elegant design in a single component.

Features

• Fully Isolated Architecture (FIA™) — Complete electrical separation of digital and analog circuits powered by three independent linear power supplies (left, right, and system).
• Dual-Mono AKM DAC Design — Independent AK4191 and AK4499 DAC pairs for left and right channels with fully balanced analog signal path.
• Balanced Preamplifier Stage — XLR and RCA analog inputs/outputs with up to +10 dB gain and ultra-low noise operation.
• High-Precision R2R Volume Network — Dual-channel R2R modules deliver distortion-free analog volume adjustment.
• Eversolo Precision Core™ Clock System — Incorporates OCXO temperature-controlled crystal oscillator, PLL jitter suppression, and FPGA-based data shaping.
• External Clock Support — Accepts 10 MHz or 25 MHz master clock inputs with 50 Ω / 75 Ω impedance for studio-grade accuracy.
• Comprehensive Digital Inputs — USB-B, dual coaxial, dual optical, AES/EBU, IIS (8 modes), HDMI ARC/eARC for flexible integration.
• Fully Balanced Analog Outputs — XLR and RCA pre-outs plus 6.35 mm headphone output for desktop or full-system use.
• Headphone Amplifier Module — 6.35 mm jack with auto impedance detection and selectable low/mid/high gain; drives headphones from 16–300 Ω.
• Qualcomm QCC5125 Bluetooth 5.0 — Supports aptX HD and aptX Adaptive high-resolution wireless audio.
• 8.8″ IPS Touchscreen — Intuitive interface with customizable VU meters, spectrum analyzers, and adjustable knob illumination.
• Multi-Control Options — Touchscreen, included remote control, and Eversolo mobile app for volume, source, and configuration management.
• Premium Aluminum Alloy Chassis — All-metal construction with electromagnetic shielding and precision internal layout for minimal interference.

Specifications

Core Architecture

• Model: Eversolo DAC-Z10
• Main Processor: DCP8568
• DAC Chips: AK4191 + AK4499 (per channel)
• Audio Processor: Multi-core USB audio processor
• OPA Chip: OPA1612
• Clock System: OCXO temperature-controlled oscillator with PLL; supports 10 MHz / 25 MHz external clock input
• Power Design: Triple ultra-low-noise linear power supplies (Left / Right / System)
• Volume Control: Dual-channel R2R resistor network

Inputs

• USB-B Audio Input (PCM 768 kHz 32-bit / DSD512)
• IIS Input (8 mode configurations / PCM 768 kHz 32-bit / DSD512 Native)
• AES/EBU Input (PCM 192 kHz 24-bit / DSD64 DoP)
• Dual Optical Inputs (PCM 192 kHz 24-bit / DSD64 DoP)
• Dual Coaxial Inputs (PCM 192 kHz 24-bit / DSD64 DoP)
• HDMI ARC/eARC (PCM 192 kHz 24-bit)
• Bluetooth Audio Input (Qualcomm QCC5125, BT 5.0; SBC/AAC/aptX HD/aptX Adaptive)
• Analog Inputs (XLR Balanced, RCA)
• External Clock Input (10 MHz/25 MHz 50 Ω or 75 Ω)

Outputs

• Analog Pre-out XLR (Balanced)
• Analog Pre-out RCA (Single-ended)
• Headphone Out 6.35 mm Single-ended
• TRIGGER In / Out for linked system control

Performance

• XLR Output: 5 Vrms @ 0 dBFS / THD+N 0.00008% / SNR 130 dB (A-wt)
• RCA Output: 2.5 Vrms @ 0 dBFS / THD+N 0.000097% / SNR 128 dB (A-wt)
• Headphone Amp: 7 Vrms (High Gain) / THD+N 0.00013% / SNR 127 dB (A-wt)
• Frequency Response: 20 Hz – 20 kHz (±0.1 dB)
• Crosstalk: -130 dB (XLR) / -123 dB (RCA)
• Dynamic Range: 130 dB (XLR) / 128 dB (RCA)

Compatibility & Formats

• Supported Formats: PCM 768 kHz 32-bit / DSD512 Native / DXD / DoP
• HDMI ARC/eARC for TV integration
• External clock input for studio applications

Display & Control

• 8.8″ IPS Touchscreen with multiple VU meter modes and spectrum options
• Control Methods: Touchscreen, remote control, Eversolo App (Android/iOS)

Power & Physical

• Power Supply: AC 110 – 240 V ~ 50/60 Hz
• Rated Power Consumption: 32 W
• Dimensions (W × H × D): 310 × 88 × 365 mm
• Chassis: Aluminum alloy with electromagnetic shielding
• Weight: Approx. 7 kg

In the Box

• Eversolo DAC-Z10 unit
• Remote control
• Power cable
• USB data cable
• Trigger cable
• USB drive (for firmware update)
• Polishing cloth
• User manual
