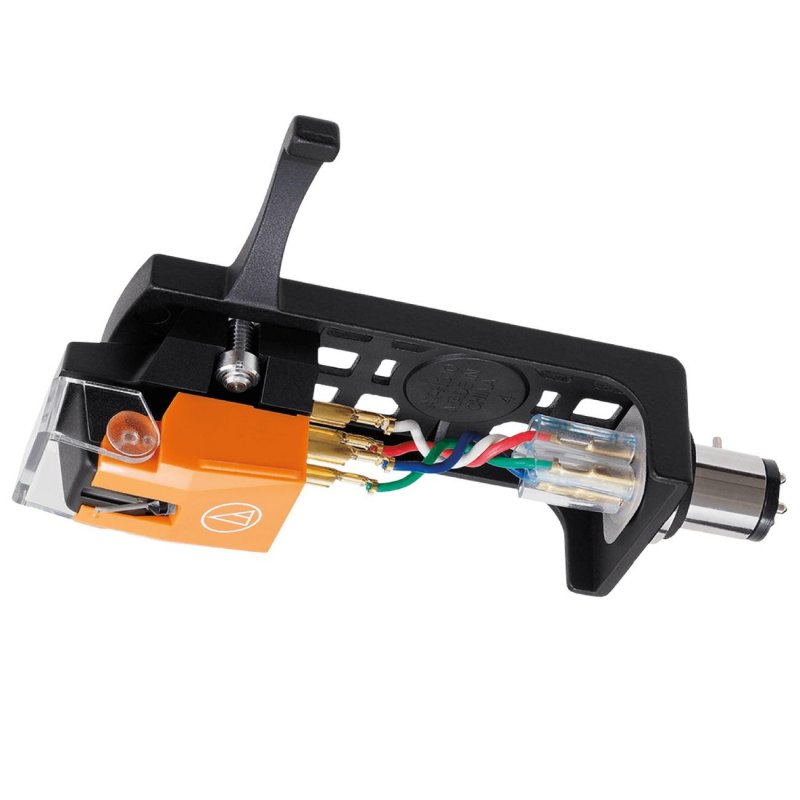

The VM530EN/H combo kit includes the VM530EN elliptical nude dual moving magnet cartridge premounted on the AT-HS10BK universal 1/2"-mount headshell. The VM530EN is a top-end elliptical stylus cartridge in Audio-Technica's new VM cartridge line - a line that harks back to A-T's early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today's advanced technology.
Like all VM cartridges, the VM530EN is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge's lightweight 0.3 x 0.7 mil elliptical nude stylus reduces the execution mass of the vibration system, enabling fuller frequency reproduction and less tracking distortion than a bonded stylus. Includes mounting hardware.
Specifications:
- Frequency Response: 20 - 25,000 Hz
- Channel Separation: 27 dB (1 kHz)
- Vertical Tracking Angle: 23°
- Vertical Tracking Force: 1.8 to 2.2 g (2.0 g standard)
- Stylus Construction: Nude Round Shank
- Recommended Load Impedance: 47,000 Ω
- Coil Impedance: 2,700 Ω (1 kHz)
- Output Voltage: 4.0 mV (1 kHz, 5 cm/sec.)
- Output Channel Balance: 1.5 dB (1 kHz)
- Stylus Shape: Elliptical Nude
- Cantilever: Aluminium Pipe
- Static Compliance: 35 x 10-6 cm/dyne
- Dynamic Compliance: 8 x 10-6 cm/dyne (100 Hz)
- Mounting: 1/2" centres
- Dimensions: 17.3 mm (H) x 17.0 mm (W) x 28.2 mm (L)
- Accessories Included:
- Cartridge installation screws 5 mm x 2 and 10 mm x 2
- Washer x 2
- Hexagon nut x 2
- Recommended Load Capacitance: 100 - 200 pF
- Replacement Stylus: VMN30EN
- Stylus Size: 0.3 x 0.7 mil
- Type: VM Type
- Weight: 16.8 g
