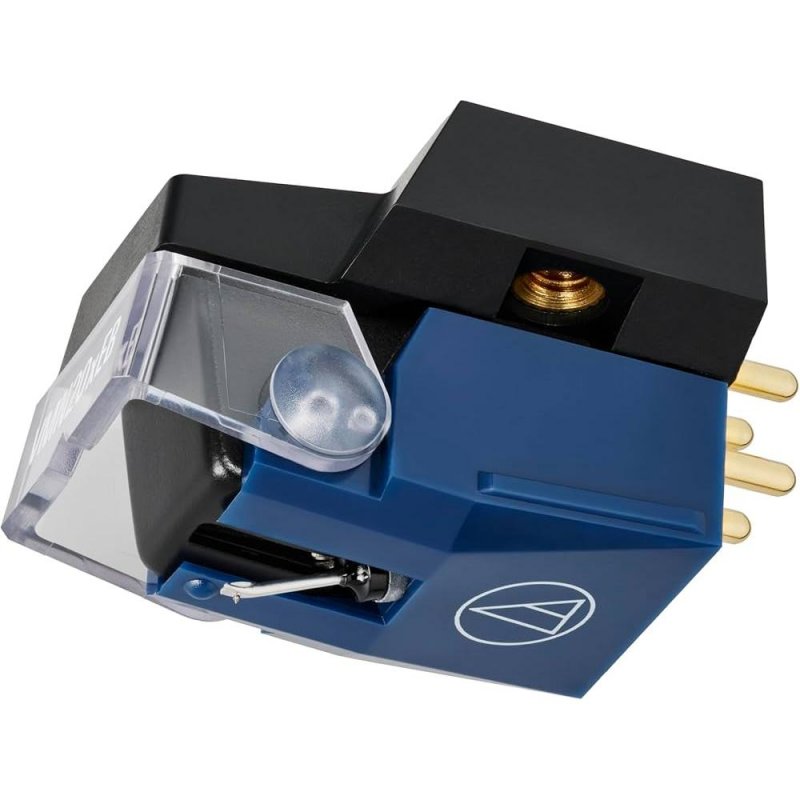

Audio-Technica AT-VM520xEB Dual Moving Magnet Phono Cartridge
The Audio-Technica AT-VM520xEB Dual Moving Magnet phono cartridge delivers warm, detailed, and highly accurate vinyl playback. Part of the AT-VMx series, it features a bonded 0.3 × 0.7 mil elliptical stylus that improves groove tracking precision and reduces distortion, resulting in cleaner highs and improved overall resolution compared to conical designs.
Like all AT-VMx cartridges, the AT-VM520xEB mirrors the geometry of professional cutting heads using a 90° V-shaped generator layout. This design maximizes tracking accuracy, channel separation, and stereo imaging. Optimized PCUHD copper coils improve transient response and tonal nuance, while the low-resonance polymer housing and aluminum cantilever ensure stable, consistent playback.
Features
- Dual Moving Magnet design for accurate stereo separation
- Bonded elliptical stylus (0.3 × 0.7 mil) for improved tracking accuracy
- 90° V-shaped generator mirrors professional record-cutting heads
- Optimized PCUHD copper coils for enhanced transient response
- Reduced coil turns for faster signal response and cleaner sound
- Center shield plate minimizes crosstalk and preserves stereo imaging
- Durable, low-resonance polymer cartridge body
- Aluminum cantilever for stable tracking performance
- V-cut flip-up stylus protector aids stylus positioning and installation
- Threaded mounting holes allow quick installation without nuts
- Compatible with all stereo AT-VMx replacement styli
- Fits standard 1/2-inch mount turntable headshells
Specifications
Cartridge
- Type: Dual Moving Magnet
- Frequency response: 20 Hz – 20 kHz
- Output voltage: 5.0 mV (1 kHz, 5 cm/sec.)
- Channel separation: 24 dB (1 kHz)
- Output balance: 1.5 dB (1 kHz)
- Tracking force: 1.8 – 2.2 g (2.0 g standard)
- Vertical tracking angle: 20°
Electrical
- Coil impedance: 3.2 kΩ (1 kHz)
- DC resistance: 750 Ω
- Recommended load impedance: 47 kΩ
- Recommended load capacitance: 150 – 250 pF
- Coil inductance: 480 mH (1 kHz)
Stylus & Compliance
- Stylus type: Bonded elliptical
- Stylus radius: 0.3 × 0.7 mil
- Static compliance: 23 × 10⁻⁶ cm/dyne
- Dynamic compliance: 7 × 10⁻⁶ cm/dyne (100 Hz)
Physical
- Dimensions: 28 × 18.3 × 17.6 mm
- Weight: 7.2 g
- Threaded mounting hole: M2.6 × 2
Product Details
- Audio-Technica AT-VM520xEB
-
Brand New : Factory Sealed
- EAN : 4961310163266
- EFLC : 15414
