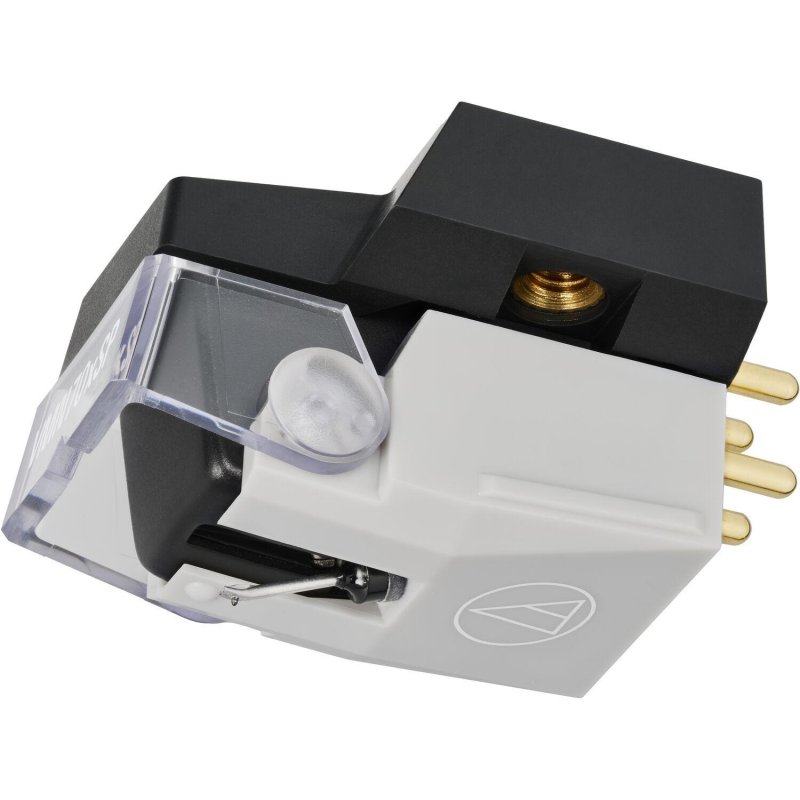

Audio-Technica AT-VM670xSP Dual Moving Magnet Phono Cartridge
The Audio-Technica AT-VM670xSP is purpose-built for authentic playback of 78 rpm mono records, delivering a focused, low-noise sound image with excellent durability and tonal accuracy. Part of the AT-VMx series, this cartridge features a 3.0 mil conical bonded stylus specifically designed to match the wider grooves of 78 rpm shellac records, ensuring stable tracking and reduced surface noise.
Unlike stereo cartridges, the AT-VM670xSP electrically sums the left and right channels and connects its dual magnets to produce a true mono signal. This design minimizes groove noise while preserving musical detail. Optimized PCUHD copper coils with reduced turns improve transient response and musical realism, while the low-resonance polymer housing and aluminum cantilever provide consistent, reliable performance.
Features
- Dedicated mono Dual Moving Magnet phono cartridge for 78 rpm records
- 3.0 mil conical bonded stylus optimized for wide-groove shellac discs
- Electrically summed left and right channels for true mono playback
- Dual magnets connected for a center-focused, low-noise sound image
- Optimized PCUHD copper coils for improved transient response
- Reduced coil turns for faster, more accurate signal reproduction
- Durable low-resonance polymer cartridge housing
- Aluminum cantilever for stable and accurate tracking
- V-cut flip-up stylus protector aids cueing and installation
- Threaded mounting holes allow easy installation without nuts
- Fits standard 1/2-inch mount turntable headshells
Specifications
Cartridge
- Type: Dual Moving Magnet, mono (78 rpm)
- Frequency response: 20 Hz – 20 kHz
- Output voltage: 4.7 mV (1 kHz, 5 cm/sec.)
- Horizontal/vertical output ratio: 20 dB (1 kHz)
- Tracking force: 4.5 – 5.5 g (5.0 g standard)
- Vertical tracking angle: 20°
Electrical
- Coil impedance: 1.6 kΩ (1 kHz)
- DC resistance: 375 Ω
- Recommended load impedance: 47 kΩ
- Recommended load capacitance: 150 – 250 pF
- Coil inductance: 240 mH (1 kHz)
Stylus & Compliance
- Stylus type: Conical bonded
- Stylus radius: 3.0 mil
- Static compliance: 23 × 10⁻⁶ cm/dyne
Physical
- Dimensions: 28 × 18.3 × 17.6 mm
- Weight: 7.2 g
- Threaded mounting hole: M2.6 × 2
Product Details
- Audio-Technica AT-VM670xSP
-
Brand New : Factory Sealed
- EAN : 4961310163297
- EFLC : 15417
