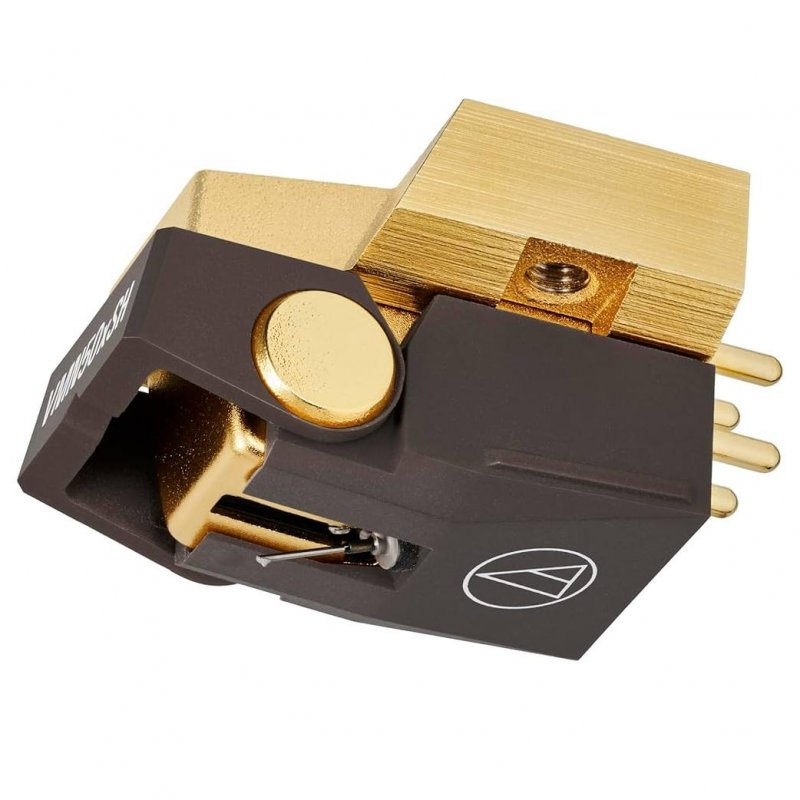

Audio-Technica AT-VM750xSH Dual Moving Magnet Phono Cartridge (Shibata)
The Audio-Technica AT-VM750xSH delivers exceptional warmth, realism, and high-frequency precision for demanding vinyl enthusiasts. As part of the AT-VMx series, this cartridge is equipped with a Shibata stylus, offering greater surface contact within the record groove than elliptical designs. This allows it to retrieve ultrahigh frequencies with outstanding accuracy while minimizing distortion and record wear.
A solid boron cantilever transmits audio signals up to 2.5 times faster than aluminum, resulting in superior transient response and clarity—especially noticeable on complex, dynamic musical passages. The rigid die-cast aluminum body further enhances performance by reducing resonance and unwanted coloration.
Like all AT-VMx stereo cartridges, the AT-VM750xSH closely mirrors professional cutter head geometry with a true 90° V-shaped dual-magnet configuration. This design maximizes tracking accuracy, channel separation, and stereo imaging for a clean, engaging listening experience.
Features
- Shibata stylus for extended high-frequency response and minimal groove wear
- Solid boron cantilever for faster signal transmission and improved transient response
- Dual Moving Magnet design replicates cutter head geometry for superior tracking accuracy
- Die-cast aluminum housing reduces resonance and vibration
- PCUHD (Pure Copper Ultra High Drawability) coils for enhanced clarity and musical detail
- Paratoroidal coil structure improves efficiency and dynamic response
- Center shield plate reduces crosstalk and preserves stereo imaging
- Flip-up stylus protector with V-cut for accurate cueing and stylus placement
- Threaded body design allows easy installation without nuts
- Compatible with all standard 1/2" mount turntable headshells
- Accepts all AT-VMx series replacement styli
Specifications
General
- Cartridge Type: Dual Moving Magnet
- Frequency Response: 20 Hz – 27 kHz
- Output Voltage: 3.7 mV (1 kHz, 5 cm/sec.)
- Channel Separation: 26 dB (1 kHz)
- Output Balance: 1.0 dB (1 kHz)
- Tracking Force Range: 1.8 – 2.2 g (2.0 g standard)
- Vertical Tracking Angle: 20°
Electrical Characteristics
- Coil Impedance: 3.2 kΩ (1 kHz)
- DC Resistance: 750 Ω
- Recommended Load Impedance: 47 kΩ
- Recommended Load Capacitance: 150 – 250 pF
- Coil Inductance: 480 mH (1 kHz)
Compliance & Stylus
- Static Compliance: 20 × 10⁻⁶ cm/dyne
- Dynamic Compliance: 7 × 10⁻⁶ cm/dyne (100 Hz)
- Stylus Curvature Radius: 2.7 × 0.26 mil
Physical
- Mounting: 1/2" standard mount
- Threaded Mounting Holes: M2.6 × 2
- Dimensions (W x H x D): 29 × 18.3 × 17.5 mm
- Weight: 8.8 g
Packaging
- Package Weight: 0.125 lb
- Box Dimensions (L x W x H): 4.6 × 2.3 × 1.9 in
Product Details
- Audio-Technica AT-VM750xSH/H
-
Brand New : Factory Sealed
- EAN : 4961310163228
- EFLC : 15420
