Home Theater Power Management

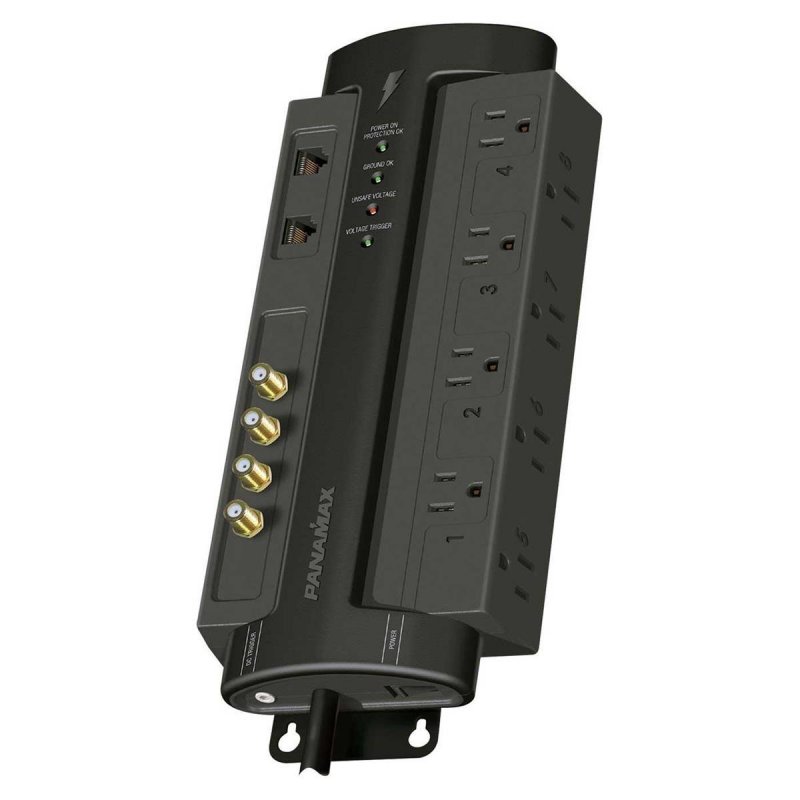

AC power, telephone and coax lines can provide direct pathways for surges and spikes to enter and damage expensive audio/video equipment. M8-AV-PRO eliminates voltage irregularities & protects your AV system.
Reduces Cross-Contamination Between Components
The M8-AV-PRO is designed to provide noise isolation between the two isolated outlet banks so that any noise created by an A/V component in one bank cannot contaminate the power to the equipment that is plugged into the other outlet bank.
Monitors Incoming Line Voltage
Panamax's patented AVM circuitry continuously monitors the incoming line voltage and disconnects your equipment in the event of an over voltage or undervoltage (brownout). Power is automatically reconnected when voltage returns to a safe level, eliminating service calls or system downtime
Improves Picture and Sound Quality
The M8-AV-PRO's Power Cleaning and Premium Filtration eliminate common symptoms of contaminated power (including loss of detail, hisses, hums and visual artifacts) and allows your A/V equipment to perform up to its full capability.
Features:
Premium Filtration
Improves Picture and Sound. Provides clean power by filtering out noise common to household power.
Coax/Sat Protection
Protects equipment from electrical surges that travel over Cable, Satellite, and Antenna lines.
Telephone/LAN Line Protection
Protects equipment from electrical surges that travel over Telephone and network lines.
AVM (Automatic Voltage Monitoring)
Protects equipment against prolonged over/ under voltages by disconnecting the power and reconnecting it when safe power returns.
Surge Protection
Exclusive Protect or Disconnect™ circuitry. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment.
12 Volt Trigger
Allows source equipment to activate or deactivate outlets 5-8 on the M8-AV-PRO.
8 Outlets
More outlets for all of your power needs
Hi Def Ready
Hi-Def Designed to work with your High Definition system.
Specifications:
General:
- Family: Floor Models
- Line Voltage: 120 (Volts)
- BlueBOLT Enabled: No
- Number of Outlets: 8
- Outlet Descriptions: 4 outlets filtered and surge protected, 4 surge protected high current outlets
- Control: On/Off control to all outlets through power switch. The high current bank can be controlled by the low voltage trigger.
- USB Charging: N/A
- Low Voltage Trigger: 12V In
- AC Power Cord: 8 ft. captive cord
- Dimensions: 12" L x 5" W x 1.75" H (12.5" L Including brackets)
- Weight: 3.5 lbs
AC Protection:
- AC Protection Technology: Protect or Disconnect, Automatic Voltage Monitoring, L-N, L-G, N-G Protection Modes, Thermal Fusing
- Automatic Voltage Shutoff: Yes
- Undervoltage Shutoff: 90 VAC ± 6 VAC
- Over-Voltage Shutoff: 142 VAC ± 8 VAC
- Maximum Current Rating: 15 (Amps)
- Initial Clamping Leve: l200V Peak
Filtration:
- Filtration Technology: Common Mode Filter Circuit
- Filtration Rating: 50 dB(100KHz - 1MHz), 53 dB (100KHz - 1MHz)
Signal Line Protection:
- Signal Line Protection: 1 LAN/Tel, 2 Cable/Satellite
Product Details
- Panamax M8AV-PRO
-
Brand New : Factory Sealed
- UPC : 050616008747
- EFLC : 8106
