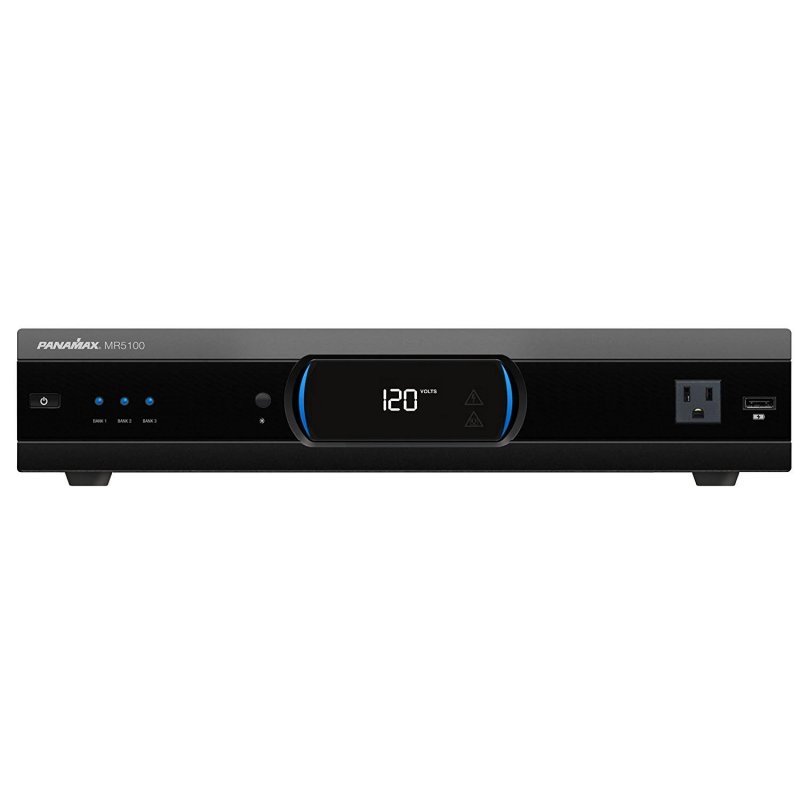

11 Outlet Power Management, specifically designed and engineered to provide protection, filtration and power monitoring for your home theater system.
Panamax's MR Family of products offers several layers of surge protection. Panamax's patented Automatic Voltage Monitoring (AVM) technology continuously monitors the incoming power. In case of an undervoltage or brownout (too little electricity) or an overvoltage (too much electricity) a flashing red lightning bolt will be displayed and power to the equipment is automatically turned off. When voltage returns to a safe level, power to the equipment is automatically reconnected.
The other layer of surge protection Panamax offers is our exclusive Protect or Disconnect™ technology. This ultra fast protection circuitry completely protects your equipment from surges such as lightning. When overwhelmed with extreme catastrophic events, Panamax permanently disconnects AC power to equipment. All Panamax products offer this core protection technology.
Protecting a complete system may sometimes require that signal wires coming out of the wall be protected as well. Panamax has you covered there too. Universal ultra low-loss coaxial protection (as well as LAN/Ethernet) protection prevents signal lines from carrying damaging surges while maintaining full high-definition and high-speed Internet signals to your equipment for your connected life.
Features:
- 11Protected & Filtered Power Outlets
- Exclusive Automatic Voltage Monitoring (AVM)
- Protect or Disconnect™ Technology
- Power Sequencing (1 Always On Bank, 1 Switched Bank, 1 Delayed High Current Bank)
- USB Charging (0.5V/5V)
- Panamax Linear Level 4 Noise Filtration (3 Total Isolated Banks) With Dedicated High Current Outlet Bank (4 Outlets)
- Antenna, Cable, or Satellite, LAN, and Telco Signal Protection
- 10 ft. Power Cable with Straight Plug
- Rack Mounting Kit Included
Specifications:
General:
- Family: MR Series
- Line Voltage: 120 (Volts)
- BlueBOLT Enabled: No
- Power Factor Technology: No
- Number of Outlets: 11
- Number of Isolated Banks: 3
- Outlet Descriptions
- All 11 outlets filtered, and surge protected.
- Bank 1 is always on
- Bank 2 is switchable from front panel power button
- Bank 3 outlets are high current and switchable from power button
- Rack Mountable: Yes
- Rack Ears Included: Yes
- Front Panel Meter(s): LED voltmeter
- Front Media Light(s): No
- Control: On/Off control to all outlets through front panel power button.
- Voltage Regulation: No
- Compliance: cCSAus
- USB Charging: 1 front panel USB charger
- Low Voltage Trigger: N/A
- AC Power Cord: 8ft. captured with low profile plug
- Dimensions: 17"W x 12"D x 3.5" H, 4" H with feet
- Weight: 13.5 lbs
AC Protection:
- AC Protection Technology:
- Protect or Disconnect
- Automatic Voltage Monitoring
- L-N, L-G, N-G Protection Modes
- Thermal Fusing
- Automatic Voltage Shut: off No
- Under-Voltage Shut: off 95V ± 3V
- Over-Voltage Shut: off 135V ±2V
- Maximum Current Rating: 15 (Amps)
- Initial Clamping Level: 200V Peak
Filtration:
- Filtration Technology: LiFT
- Filtration Rating: Bank 1 & 2
- Bank 1 & 2
- -65dB min. @ 100kHz
- -65dB min. @ 250kHz
- -45dB min. @ 500kHz
- Max filtration: -80dB @ 150kHz
- Bank 3 - High Current, Low Impedance
- -50dB min. @ 100kHz
- -60dB min. @ 250kHz
- -45dB min. @ 500kHz
- Max filtration: -63dB @ 250kHz
- Bank-to-Bank (1 vs. 2) Noise Isolation
- -60dB min. @ 100kHz
- -65dB min. @ 250kHz
- -50dB min. @ 500kHz
- Max filtration: -75dB @ 125kHz
Signal Line Protection:
- Signal Line Protection: 1 LAN, 1 Tel, 2 Cable/Satellite
