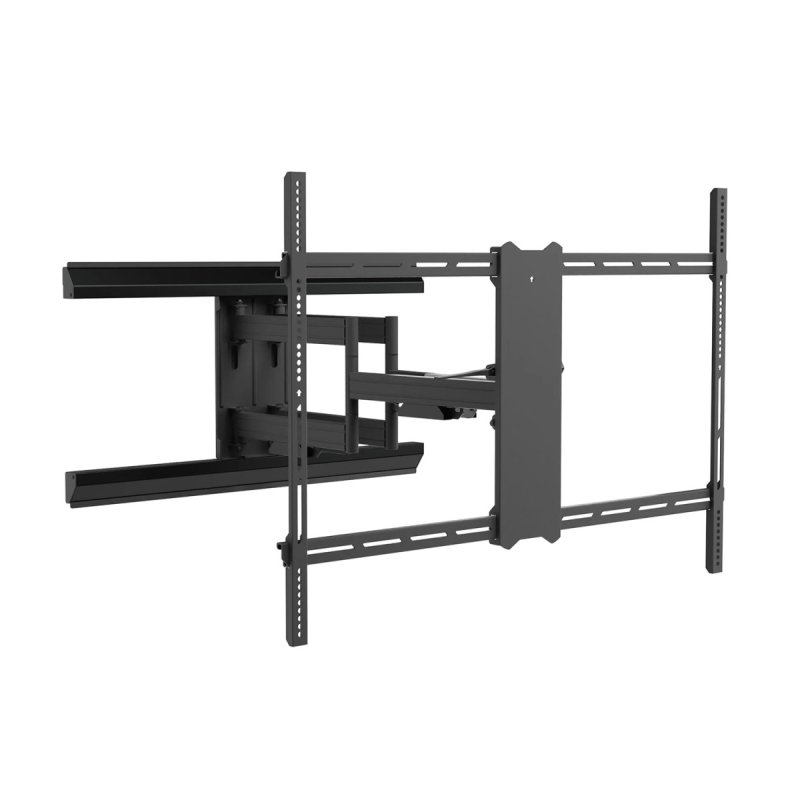

Kanto PMX900HD Full Motion TV Mount for 65in to 140in Displays

The Kanto PMX900HD is a heavy-duty full motion wall mount engineered for today's largest televisions and commercial displays. Designed for professional installations, it supports screens from 65 to 140 inches and offers exceptional flexibility for positioning oversized displays.

Installer-friendly innovations make setup easier and more precise. Post-install height adjustment allows fine tuning after mounting, while the adjustable offset feature helps center displays even when wall studs are not ideally located.

Despite its massive capacity, the PMX900HD maintains a slim profile when retracted and extends up to 33 inches from the wall for easy cable access and optimal viewing angles.

Features

• Heavy-duty full motion wall mount for extra-large displays
• Supports TVs and displays from 65 to 140 inches
• Maximum weight capacity of 275 lb (124.7 kg)
• Compatible with VESA patterns from 200 x 100 to 1000 x 700
• Extends up to 33 inches from the wall
• Retracts to a slim 2.7 inch profile
• Adjustable offset allows horizontal positioning correction
• Up to ±11 inch left or right offset adjustment
• 2 inch post-install height adjustment for precise leveling
• Ideal for residential, commercial and large-format display installations

Specifications

General

• Model: PMX900HD
• Product Type: Full Motion TV Wall Mount
• Recommended Screen Size: 65 in to 140 in
• Maximum Weight Capacity: 275 lb (124.7 kg)
• Supported VESA Patterns: 200 x 100 to 1000 x 700
• Profile Depth: 2.7 in (6.9 cm)
• Maximum Extension: 33 in (83.8 cm)
• Horizontal Offset Range: ±11 in (27.9 cm)
• Post-Install Height Adjustment: 2 in (5.1 cm)
• Mount Type: Full Motion

What’s in the Box

• Kanto PMX900HD Full Motion TV Mount
• Wall mounting hardware
• Display mounting hardware
• Installation instructions
