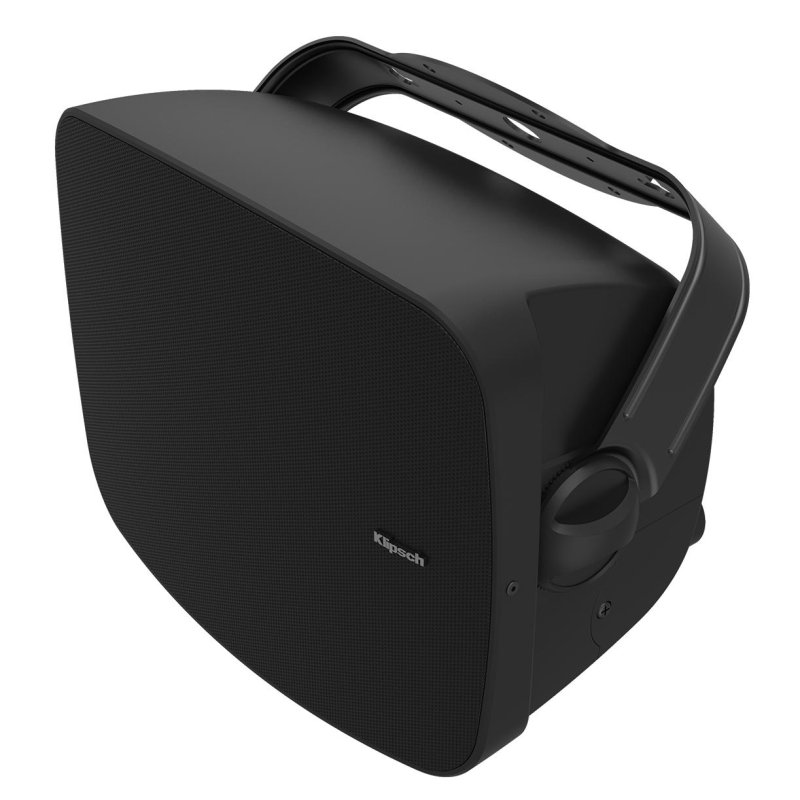

Klipsch PSM-525-T 5.25-Inch Indoor/Outdoor Surface Mount Loudspeaker
The Klipsch PSM-525-T is a compact, full-range surface mount loudspeaker engineered for high-performance indoor and outdoor commercial audio applications. Designed with Klipsch’s signature high-efficiency, low-distortion philosophy, it delivers clear, dynamic sound with wide coverage in a rugged, weather-resistant enclosure.
Featuring the patented Tractrix® Hyperfold Port™, the PSM-525-T maximizes bass performance while minimizing turbulence and port noise. Combined with a 5.25-inch woofer and a 1-inch titanium compression driver, it provides excellent clarity and consistent sound distribution across a wide listening area.
Features
- Full-range 5.25-inch surface mount loudspeaker for indoor and outdoor use
- Tractrix® Hyperfold Port™ for deeper bass and reduced distortion
- 1-inch titanium compression driver for crisp, high-efficiency highs
- Wide dispersion pattern for consistent coverage
- IPX6-rated for water-resistant performance in demanding environments
- Multi-tap transformer for 70V and 100V distributed systems
- 8-ohm bypass mode for standard installations
- Durable all-weather ABS enclosure with paintable finish
- Phoenix (Euroblock) connector for quick installation
- Secure grille mounting with set screws
More Bass, Less Space with Tractrix® Hyperfold Port™
The proprietary Hyperfold Port™ uses a multi-stage folded design to extend port length, improving airflow and reducing noise. This results in enhanced bass response and wider dispersion without increasing cabinet size.
Built for Commercial Environments
With an IPX6 rating, the PSM-525-T is designed to withstand harsh indoor and outdoor conditions. It is ideal for retail spaces, restaurants, patios, and other commercial installations requiring reliable, weather-resistant audio performance.
Flexible Installation Options
The integrated multi-tap transformer supports both 70V and 100V distributed audio systems. A bypass setting enables standard 8-ohm operation, making it suitable for a wide range of installation scenarios.
High-Clarity Compression Driver
The 1-inch titanium compression driver, mounted on a high-performance horn, delivers detailed high frequencies with wide dispersion, ensuring even coverage and clarity throughout the listening area.
Simple and Secure Installation
The included phoenix connector allows for fast and intuitive wiring, while grille set screws ensure a secure fit in any environment, maintaining reliability over time.
Specifications
Audio
- Frequency Response: 58Hz – 20kHz ±4dB (48Hz -10dB)
- Power Handling: 65 W RMS / 260 W Peak
- Maximum Continuous Output: 104 dB
- Sensitivity: 89 dB
- Nominal Impedance: 8 Ohms (4.3 Ohms minimum)
- Acoustic Crossover: 2 kHz
Coverage
- Coverage Angle: 100° (Horizontal) × 20° (Vertical)
- Directivity Index: 7 dB ±1.5 dB (1kHz – 20kHz)
Drivers
- Woofer: 5.25-Inch
- Tweeter: 1-Inch Titanium Compression Driver
- Horn: K-1200M Horn with Wide Dispersion Phase Plug
Construction
- Enclosure Material: All-Weather ABS Plastic (Paintable)
- Enclosure Type: Vented via 3 Folded Tractrix Ports
- IP Rating: IPX6
Connectivity
- Input Connectors: 4-Pin Euroblock (Phoenix)
Transformer
- 70V Taps: 30W, 15W, 7.5W, 3.8W
- 100V Taps: 30W, 15W, 7.5W
- Bypass: 8 Ohm
Dimensions & Weight
- Dimensions (W × H × D): 309 × 242 × 166 mm
- Weight: 3.52 kg
Compliance
- RoHS Compliant
What’s in the Box
- Klipsch PSM-525-T Loudspeaker
- Mounting Bracket
- Grille with Set Screws
- User Documentation
Product Details
- Klipsch PSM-525TB
-
Brand New : Factory Sealed
- UPC : 743878057720
- EFLC : 16320
