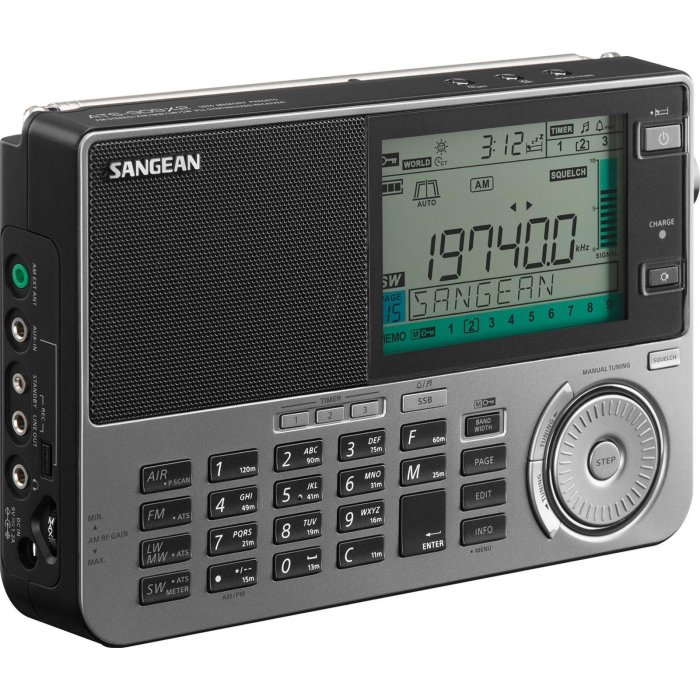

SANGEAN ATS-909X has been widely regarded by ham radio enthusiasts as one of the best portable shortwave radio out there. Now with the new and improved 2nd gen ATS-909X2, we've made some significant improvements over the functionality while refining the already-excellent features on the original model. Another worthy upgrade is the newly designed smart battery compartment. The radio will now be able to detect faulty batteries and locate its position in the battery compartment when plugged in for charging under standby mode.

Features:

• 1674 Station Presets with 3 Individual Memory Banks
• Brand New Air Band Mode (118~137MHz)
• ATS (Auto Tuning System) on LW/MW/SW/FM
• 5 Tuning Methods: Direct Frequency Tuning/Auto Scanning/Manual Tuning/Memory Recall/Rotary Tuning
• Fine Tuning & Quick Shift Tuning Controls
• 3 Alarm Timers with Radio or HWS (Humane Wake System) Buzzer
• 42 Time Zones with DST Setting & 2 Editable City Names
• Manual & Automatic Bandwidth Control
• Information Indications for RDS/PS/PTY/RT/SNR/RSSI/Memory Bank
• SSB (Single Sideband): USB/LSB 10 or 20Hz/Fine Tuning Step
• Squelch Function for Adjusting the Receiving Threshold to Eliminate Weak Transmissions
• Dual Conversions for SW/LW/MW/Air Bands
• Advanced Battery Charger with Faulty Detection Feature
• Battery & Signal Strength Indicator
• Individual Headphone Amplifier
• FM Softmute Feature
• Multi-Functional Menu
• Larger LCD Screen with LED Backlight
• Editable Station Display up to 10 Characters
• Tone Control (Music/Normal/News)
• Adjustable Sleep Time

Specifications:

Tuner:

• FM
• Frequency (MHz): 87.5 - 108 / 76 - 108
• RDS / RBDS: PS / PTY / RT / CT
• LW
• Frequency (kHz): 153 - 519(USA)/100-519KHZ
• MW
• Frequency (kHz): 520 - 1710
• SW
• Frequency (kHz): 1.711 - 29.999
• Meter Bands: 120, 90, 75, 60, 49, 41, 31, 25, 21, 19, 16, 15, 13, 11
• Weather
• Alert: AIR BAND (118M-137MHz)

Tuning:

• Memory Presets: 1539 (NO AIR) /1674

Media:

• Aux - in: V

Clock:

• Real time
• Time: Dual (World / Home)
• Alarm
• Tuner / Media / Buzzer: x3 alarms
• Sleep: V
• Snooze: V

Feature:

• Stereo: Earphones
• Rechargeable: V

Audio:

• Sound Effect
• Treble / Bass Control: Music / Normal / News

Output Power (Typical):

• Output Power: 1.4W
• Earphones Output Power: 1mW*2
• Batteries Output Power: 0.65W

Speaker:

• Size ( mm / inch ): 3 inches
• Impedance: 4 ohms

I/O Socket:

• Power: DC in
• Aux - in: V
• Line - out: V
• Earphones: V
• Ext.Antenna: SW
• Others: Standby ou

Power Supply:

• Mains Power Supply: DC 9V / 1.2A
• Batteries (Main Power): 4 x 1.5V (UM-3)

Dimensions:

• Width (mm/inch): 207.5 / 8.17
• Height (mm/inch): 134.8 / 5.31
• Depth (mm/inch): 41.3 / 1.63
• Weight (g & lb. oz): 733.5 / 1lb. 9.9oz

What's in the box:

• Power Adapter: V
• Earphones: V
• Carrying Pouch: V (ANT-60)
