High-performance 170 watt stereo receiver with analog & digital capacity and networked connectivity.

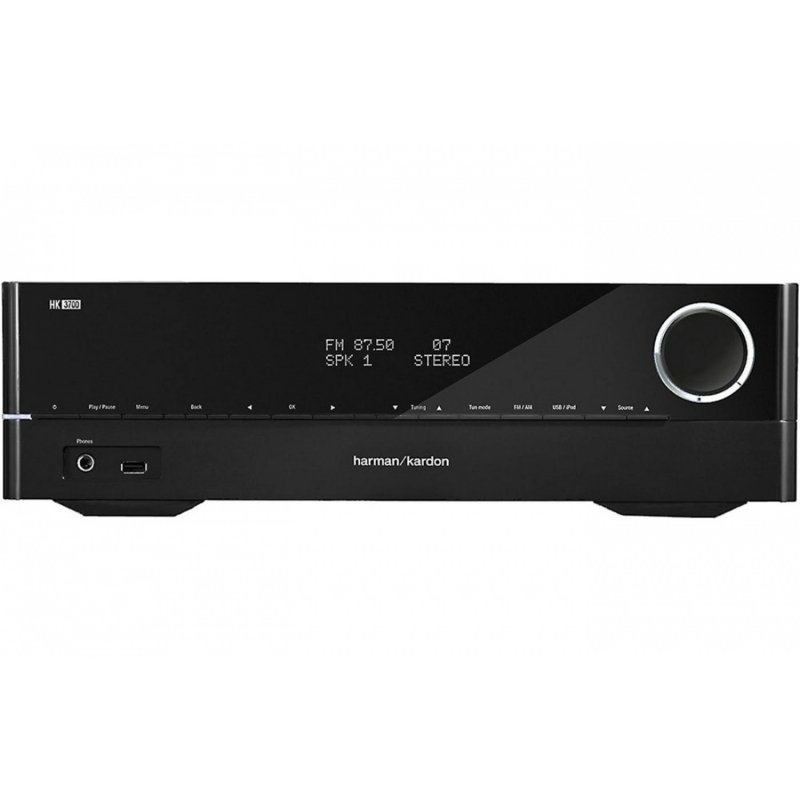

The high-performance, Harman Kardon HK 3700 stereo receiver delivers everything you need to set up a classic home audio system with modern connectivity for your analog and digital devices. It delivers 170 watts of ultra-low distortion power and includes a built-in, 192 kHz/24-bit DAC to provide you with a powerful core essential to creating any serious audio system. The HK 3700 also offers DLNA and USB connectivity – so all your old and new devices can be synced to your sound system.

• DLNA : Our DLNA Certified® devices connect with other DLNA devices to deliver your favorite media.
• USB : Enjoy multiple options for audio and video playback by connecting via the USB™ port.
• iOS-Compatible : Simply connect any iOS device to play your favorite audio/video tracks.

Features

Striking harman kardon design leverages quality materials in a 2-channel, 170-watt stereo receiver with ultra-low distortion.

It can only look and sound like a Harman Kardon if it carries the Harman Kardon name. And the advanced-caliber power derived from its high-current capability amplifiers provides you with what you need to drive the high quality sound you demand from all your playback sources and electronic devices.

High resolution dac, featuring a 24-bit/192 khz sampling rate

Get the most out of your signal path with a high resolution, 24-bit, 192 kHz DAC – which helps marry analog to digital in a stereo receiver providing you instant access between devices.

Get the best of both worlds with total connectivity for both analog and digital playback.

The harman kardon remote app provides control through ios and android platforms as part of the harman kardon ecosystem.

A dedicated remote application for control over iOS and Android platforms – complete with an intuitive menu system – is available in an instant through the Harman Kardon Remote app. Life couldn’t be simpler with this streamlined edge on user control.

GENERAL SPECIFICATIONS

• Power Consumption : <0.5W (standby)

AUDIO SPECIFICATIONS

• Power per channel : 85 watts per channel, two channels driven @ 6/8 ohms, 20Hz – 20kHz, <0.07% THD
• Input Sensitivity/Impedance : 250mV/27k ohms
• Signal-to-Noise Ratio (IHF-A) : 100dB
• Frequency Response (@ 1W) : 10Hz – 130kHz (+0dB/–3dB)

SYSTEM SPECIFICATIONS

• Power Requirement : 120V AC/ 60Hz

AM TUNER

• AM Tuner Frequency Range : 520kHz – 1,710kHz
• AM Tuner Signal-to-Noise Ratio : 38dB
• AM Tuner Usable Sensitivity (loop) : 500?V
• AM Tuner Distortion (1kHz, 50% mod) : 1.0%
• AM Tuner Selectivity (±10kHz) : 30dB

FM TUNER

• FM Tuner Frequency Range : 87.5MHz – 108.0MHz
• FM Tuner Usable Sensitivity IHF : 1.3?V/13.2dBf
• FM Tuner Signal-to-Noise Ratio (mono/stereo) : 70dB/68dB
• FM Tuner Distortion (mono/stereo) : 0.2%/0.3%
• FM Tuner Stereo Separation : 40dB @ 1kHz
• FM Tuner Selectivity (±400kHz) : 70dB

DIMENSIONS

• Depth (in) : 11-13/16
• Depth (mm) : 300
• Height (in) : 4-3/4
• Height (mm) : 121
• Width (in) : 17-5/16
• Width (mm) : 440
