95 Watts x 7/ All Discrete Circuitry/ Continuous 6 Ohms Rated/ 3-Stage Inverted Darlington Circuitry (Front And Center Channels)/ Dolby TrueHD And DTS-HD Master Audio Decoding/ Audyssey Dynamic EQ/ 3D Video Support And Audio Return Channel/ 1080p Upscaling/ 4K (Up To 4096x2160) Upscaling And Passthrough/ Built-In Wi-Fi/ Marvell Qdeo Video Chip/ MHL/ Black Finish

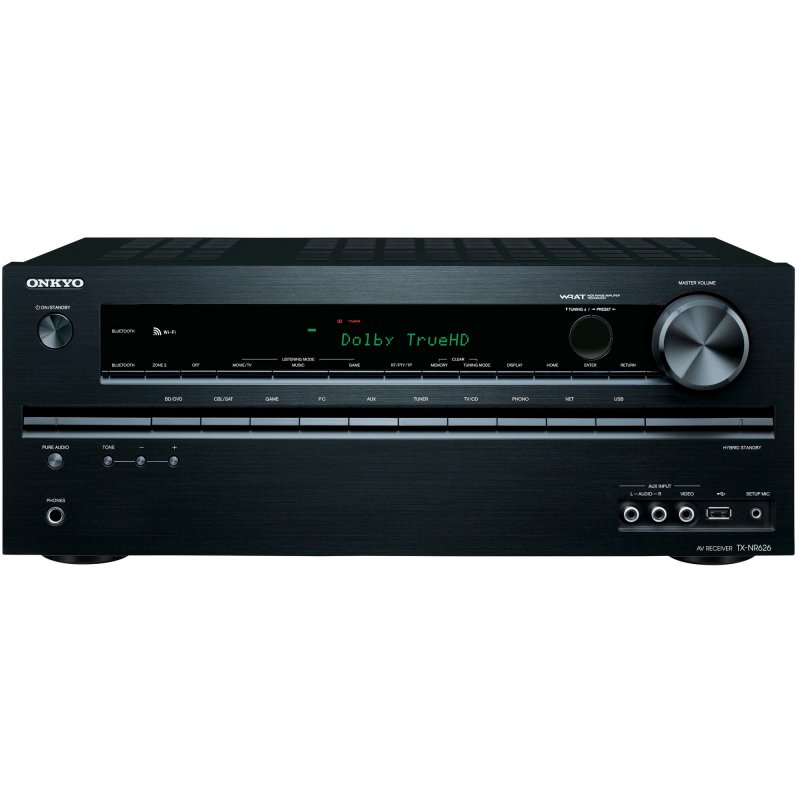

Onkyo Black 7.2 Channel Network AV Receiver, Model TXNR626

Our TX-NR626 delivers a knockout punch of value and performance. On the value side, you get built-in Wi-Fi and Bluetooth audio streaming technology. You can stream hi-res, lossless, and compressed formats from smartphone, tablet, PC, and NAS using our remote app for music selection and playback. The receiver also comes with app-controllable internet radio and music streaming services, so you’ll never be short of music. On the performance side, six HDMI® inputs and two ARC-enabled outputs support 4K and 3D passthrough, with lower resolution video upscaled to 1080p on regular HDTVs (4K on compatible displays) using Qdeo™ processing technology. An MHL™ port handles hi-res video from smartphone and tablet, and there’s a USB for audio playback from flash memory drive. Discrete WRAT amplifiers and Three-Stage Inverted Darlington Circuitry for the front and center channels deliver breathtaking surround sound, while MultEQ® from Audyssey ensures your speakers and subwoofers are calibrated for optimum response. You can even bi-amp your front monitors and drive audio in a second zone. Powerful, easy to use, and packed with convenient technology, the TX-NR626 is unbeatable at this pricepoint.

Features:

System

• # Channels: 7.2

• Power Watts/ch: 95W (8ohms 20-20kHz, 0.08%, 2 Channels Driven, FTC)

• Continuous 6ohms Rated

• All Discrete Circuitry

• 3-Stage Inverted Darlington Circuitry: (Front & Center Channels)

Processing

• DOLBY Decoder: True HD, DD Plus, PLIIz

• DTS Decoder: DTS-HD Master Audio

• Dolby PLIIz

• ONKYO GAME Surround Modes

• Audyssey Dynamic EQ

• Audyssey Dynamic Volume

• Direct Mode

• Music Optimizer: (Advanced)

• 192K/24 Bit DACs: (Burr-Brown)

Connectivity

• Audio I/O: 6 / 0

• Phono Input

• Digital Audio IN (OPT/COAX): 1 / 2

• Composite I/O: 5 / 1

• Component Video I/O: 1 / 1

• Front-Panel A/V: L / R / V

• USB Input: Rear

• HDMI I/O: 6 / 2

• HDMI Version: V1.4a (supports 3D video and Audio Return Channel)

• Analog To HDMI Upconversion: (from 480i only)

• 1080p Upscaling: (Marvell Qdeo)

• 4K (up to 4096 x 2160) Upscaling: (Marvell Qdeo)

• Analog Pre-Outs: Sub (x2)

• Powered Zone2

• Zone 2 Line Out

• Internet Radio Capable: (Pandora, Spotify, Rhapsody, Sirius/XM, Slacker, last.fm, Aupeo!, tunein)

• Streaming Audio From PC / Network: (DLNA)

• Streaming Audio From USB memory

• Wireless Network: (WiFi Certified)

• Bluetooth: (Built-in)

Integration Access

• Ethernet

• ONKYO-RI System Control

Miscellaneous

• Pre-Pro Remote

• On Screen Remote Programming

• Color-Coded Speaker Terminals

• Auto Speaker Calibration W/Mic.: (Audyssey MultEQ)

• OSD Out: (advanced "Home" GUI)

Specifications:

Amplifier

• Power Output
  • All Channels: 115 W (6 ohms, 1 kHz, 0.7%, 2 channels driven)

  • Front L/R: 95 W (6 ohms, 1 kHz, 0.7%, 2 channels driven)
  • Center: 95 W (6 ohms, 1 kHz, 0.7%, 2 channels driven)

  • Surround L/R: 95 W (6 ohms, 1 kHz, 0.7%, 2 channels driven)

  • Surround Back L/R: 95 W (6 ohms, 1 kHz, 0.7%, 2 channels driven)

• Dynamic Power
  • 240 W (3 ohms, Front)

  • 210 W (4 ohms, 1 Front)

  • 120 W (8 ohms, Front)

• THD+N (Total Harmonic Distortion + Noise): 0.08% (20 Hz-20 kHz, Half power)

• Damping Factor: 60 (Front, 1 kHz, 8 ohms)

• Input Sensitivity and Impedance
  • 200 mV/47 k-ohms (Line)

  • 2.5 mV/47 k-ohms (Line)

• Rated RCA Output Level and Impedance: 200 mV/2.2 k-ohms (Rec out)

• Maximum RCA Output Level and Impedance: 2.0 V/2.2 k-ohms (Line Out)

• Phono Overload: 70 mV (MM, 1 kHz, 0.5%)

• Frequency Response: 5 Hz-100 kHz/+1 dB, -3 dB (DSP bypass)

• Tone Control
  • ±10 dB, 50 Hz (Bass)

  • ±10 dB, 20 kHz (Treble)

• Signal-to-Noise Ratio
  • 106 dB (Line, IHF-A)

  • 80 dB (Phono MM, IHF-A)

• Speaker Impedance: 6 ohms–16 ohms

Video

• Input Sensitivity/Output Level and Impedance
  • Video
    • 1 Vp-p/75 ohms (Component)

    • 0.7 Vp-p/75 ohms (Component PB/CB, PR/CR)

    • 1 Vp-p/75 ohms (Composite)

• Component Video Frequency Response: 5 Hz–100 MHz, -3dB

Tuner

• Tuning Frequency Range
  • FM: 87.5 MHz–107.9 MHz

  • AM: 530 kHz–1,710 kHz

• FM/AM Preset Memory: 40 stations

General

• Power Supply: AC 120 V, 60 Hz

• Power Consumption: 6.9A

• No-Sound Power Consumption: 85W

• Standby Power Consumption: 0.15W

Approximate Dimensions:

• Height: 6-13/16"
• Width: 17-1/8"
• Depth: 12-15/16"

Approximate Weight:

• Unt: 21.6 lbs
• Shipping: 28 lbs

One-Year Manufacturer's Warranty
