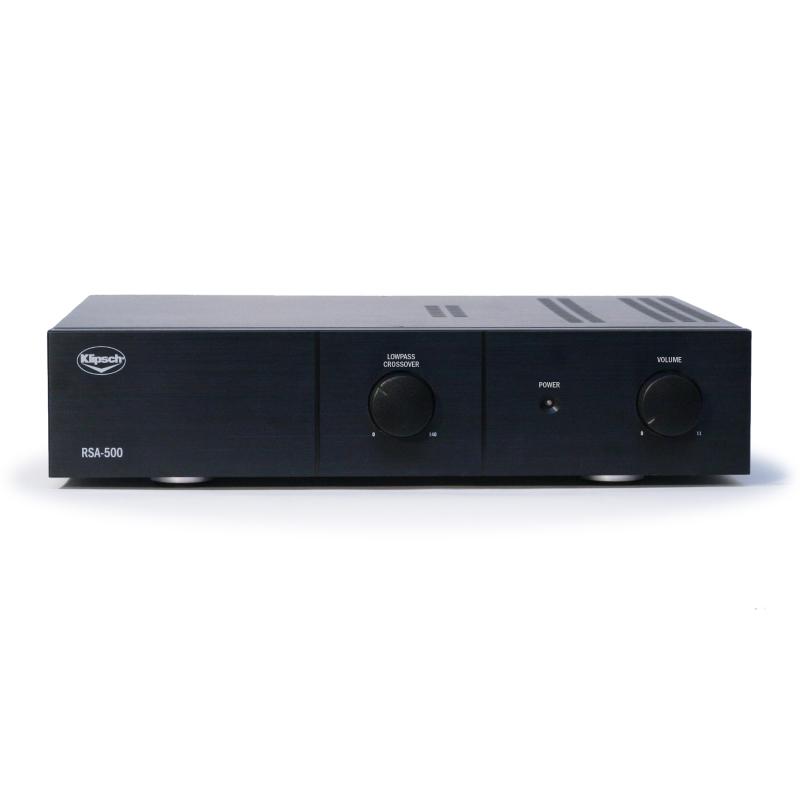

This high-powered device will drive up to two of any of these subwoofer modules and delivers 300 watts into an 8-ohm load (one subwoofer module) and 500 watts into a 4-ohm load (two subwoofer modules). It also comes with rack ears for fast and secure placement into any standard 19-inch rack.
To keep end users from inadvertently tampering with performance levels the majority of the RSA-500’s controls are housed on its rear panel. The fuse is also included on the back for quick and easy replacement. A detachable IEC power cord allows for the simple removal and reinstallation of the entire amplifier unit. The RSA-500 was also designed to “play nice” by offering standard input/output connectivity that will support any type of system.
While the RSA-500 subwoofer amplifier was primarily designed for use with the RW-5802 and RW-5101-C in-wall subwoofers, it also features custom settings for the AW-800-SW outdoor subwoofer.
- EQ switch for use with different subwoofers
- Selectable signal-sensing or voltage triggered auto-on/off circuit
- 300 watts continuous into 8 ohms or 500 watts continuous into 4 ohms
- Line and speaker level inputs
- Rack ears included
| FREQUENCY RESPONSE: | 20Hz-1kHz 3dB |
| AMPLIFIER: | BASH Hybrid |
| AMPLIFIER POWER: | FTC Rated Power: 300W into 8 ohms, 500W into 4 ohms, 20Hz-1kHz @ <1.5% THD Dynamic Power: 875W into 8 ohms, |
| LOW PASS CROSSOVER: | Continuously variable from 40-120Hz, |
| ENCLOSURE TYPE: | Use only with RW-5802, and AW-800-SW subwoofer enclosures (either one or two) |
| INPUTS: | 2 Gold-plated speaker binding posts, 2 Gold-plated RCA phono jacks plus single LFE |
| OUTPUTS: | 2 Gold-plated unfiltered RCA phono jacks plus single LFE |
| AUTO POWER ON: | 2 second ON delay, 15 minute OFF delay |
| DIMENSIONS: | 3.5" (8.9cm) H x 17" (43.2cm) W x 12.6" (32cm) D (without rack ears) |
| WEIGHT: | 18 lbs. (8.2kg) |
| FINISHES: | Black anodized aluminum face plate |
| FEATURES: | Selectable EQ, Speaker Level In, Low voltage trigger, rack ears included |
| PHASE: | Switchable between 0 and 180 degrees |
| VOLTAGE: | 110/120 VAC 60Hz |
