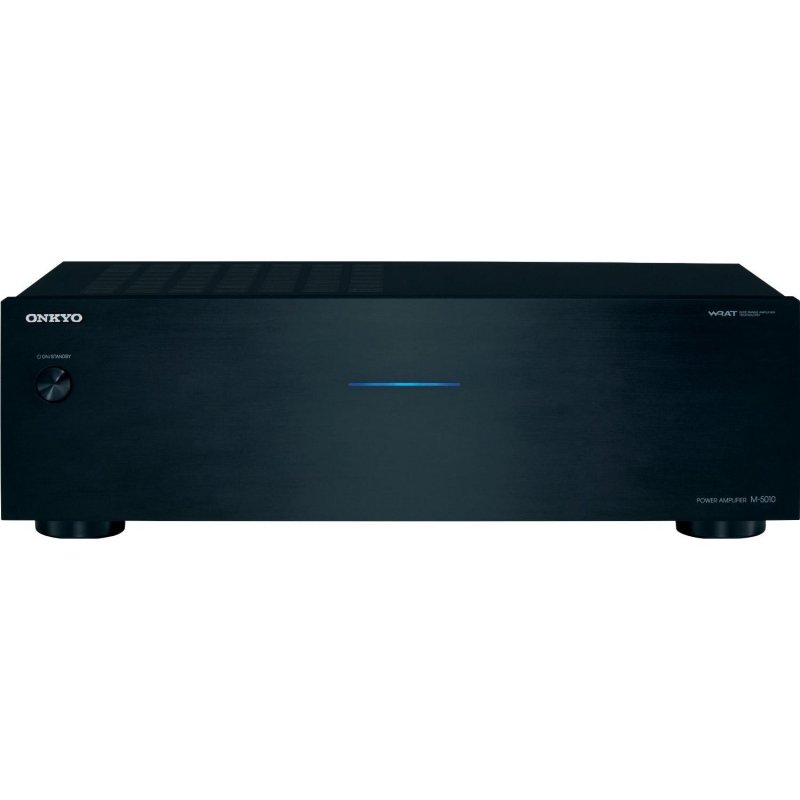

Explore the Full Potential of Your Onkyo Home Entertainment System
To augment your home theater?s multi-zone capabilities?or to enable the 11-channel surround sound feature offered on selected Onkyo A/V receivers?you may find yourself in the market for an additional stereo amplifier. Offering a blend of power, accuracy, and value is the M-5010. Boasting our acclaimed WRAT with Three-Stage Inverted Darlington Circuitry, this two-channel power amp is well suited to handling the fast-changing dynamics of movie soundtracks while retaining enough sensitivity to deliver a nuanced and musical performance for all your audio content. The amp is built around a thick anti-resonant metal chassis with aluminum faceplate for extra vibration resistance. Under the hood, audio enthusiasts will note the aluminum heat sink, large 10,000 microfarad capacitors, and quality copper bus bars for superior grounding potential?all features designed to improve responsiveness and clarity. For greater convenience, the amp has a 12 V trigger switch, banana plug-compatible speaker binding posts, and multi-zone audio connections.
An affordable way to explore the possibilities of wholehouse entertainment, our M-5010 will prove an invaluable addition to your home theater system.
Special Features
- WRAT (Wide Range Amplifier Technology)
- Three-Stage Inverted Darlington Circuitry
- All Discrete Output Stage Circuitry
- Heavy Duty EI Transformer
- Two Large 10,000 uF Capacitors
- High-Current, Low-Impedance Drive
- 12 V Trigger Input and Output with Audio Switch
- Input Level Adjustment on Rear Panel
- Aluminum Front Panel with Power Light
| Amplifier Section | |
| THD | |
| 4 ohm | 65 W/Ch (1 kHz, 0.08%, 2 Channels Driven, FTC) |
| 8 ohm | 75 W/Ch (1 kHz, 0.08%, 2 Channels Driven, FTC) |
| Damping Factor | 60 (Front, 1 kHz, 8 Ohms) |
| Input Sensitivity and Impedance | 870 mV/20 k-Ohms (Unbalanced) |
| Rated RCA Output Level and Impedance | 0.87 V/270 Ohms (Line Out) |
| Frequency Response | 10 Hz?100 kHz/+0 dB, -3 dB |
| Signal-to-Noise Ratio | 110 dB (Line, IHF-A) |
| Speaker Impedance | 4 Ohms?16 Ohms |
| General Section | |
| Power Supply AC | 120 V~, 60 Hz |
| Power Consumption | 160 W |
| No-Sound Power Consumption | 45 W |
| Standby Power Consumption | 0.4 W |
| Dimensions (W x H x D) | 17 1/8" x 5 1/2" x 12 1/4" (435 x 139 x 311 mm) |
| Weight | 17.6 lbs. (8.0 kg) |
Product Details
- Onkyo M-5010
-
Brand New : Factory Sealed
- UPC : 751398010897
- EFLC : 3703
- Write a review
Warranty
Two Year Warranty
- Parts and Labour Warranty
- Canada-wide Coverage
- Onkyo Authorized
Returns
Easy Returns
- 30-day return window on eligible items
- Full refund issued in accordance with our return policy
About Onkyo
Onkyo is a long-standing name in home audio and home theater, known for building reliable, great-sounding components with a strong focus on performance and value. From AV receivers and two-channel amplifiers to turntables, soundbars, and speakers, Onkyo products are designed to deliver clean power, intuitive control, and dependable everyday use.
Electronics For Less Canada is an authorized Onkyo retailer, offering free Canada-wide shipping on most products and our 5% price-beat promise. Whether you are upgrading a home theater system or building a dedicated stereo setup, our team can help you choose the right Onkyo solution with confidence.
