Full High-Def A/V Home Theater with 1080p Video Upscaling, New THX® Select2 Plus Certification and Signature Amplification

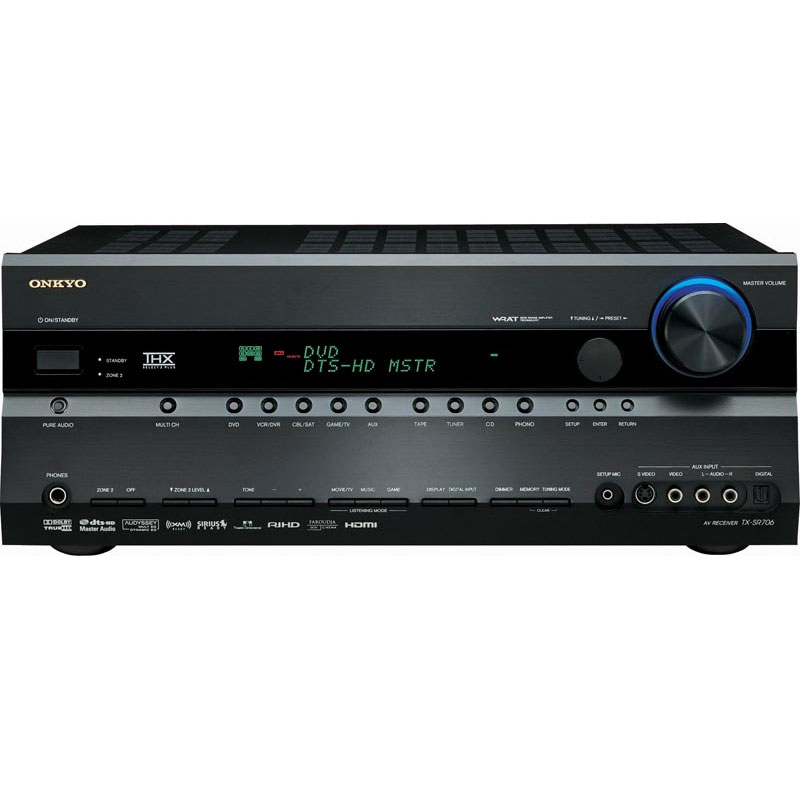

In the mid-range category, credibility is gained through exceptional performance and a high degree of functionality.There’s no better example of this than the THX Select2 Plus Certified TX-SR706 A/V receiver.With a certified amplification design and ability to process full high-definition audio and video, the TX-SR706 marks the boundary between cost effectiveness and high-end functionality. Look to some notable firsts at this level: (1) The ability to scale all sources, such as standard DVD, up to 1080p video with the industry recognized quality of Faroudja DCDi Cinema™; (2) an efficient push-pull amplification design originally created for Onkyo's high-end receivers; and (3) THX® Loudness Plus™ technology to maintain the impact of home theater even at low volume.To cap off a remarkable home entertainment component, we’ve also included RIHD (Remote Interactive over HDMI) system control; advanced Audyssey room acoustic correction technologies; and XM® and SIRIUS™ Satellite Radio and iPod® connectivity options.

Special Features

• HDMI V1.3a repeater (4in/1out, 1080p compatible)
• HDMI video up-conversion with DCDi Cinema technology
• Dolby Digital Plus, Dolby TrueHD and DTS-HD decoding

Product Features

• 7.1 Channels

• Power (8ohms 20-20kHz 0.08%) 100W/Ch
• Power (8ohms 1kHz 0.7%) 115W/Ch

• THX Certified (Select2 Plus)
• Continuous 6ohms Rated
• Certified 4ohms performance
• High Instantaneous Current Capability: 36A
• Amplifier Frequency Response: 5Hz-100kHz
• S/N Ratio (LINE IN) : 106dB
• All Discrete Circuitry
• Absolute Ground Plate
• Linear Optimum Gain Volume
• Non-Scaling Configuration
• Bi-amp Capability For Front


• DOLBY Decoder
• DD Plus, TrueHD
• DTS Decoder
• DTS-HD Master Audio
• DSD Processing
• Direct/Pure Mode
• Music Optimizer
• Audyssey Dynamic EQ
• 192K/24 Bit DACs

• DSP Type / QTY 32 BIT / 2
• Adjustable Crossover 40/50/60/70/80/90/100/120/150/200Hz
• Independent Crossover (LR, C, SR, SB)
• AV Sync

• Accurate Speaker Distance Setting

• Multi-Band Speaker EQ 5 Band


• Audio I/O 8 / 2
• Phono Input
• Digital Audio IN (OPT/COAX) 3 / 2
• Composite I/O 5 / 1
• S-Video I/O 5 / 1
• Front-Panel A/V L / R / V / S
• Front-Panel Optical
• Component Video / Bandwidth 2 / 1 / 50MHz
• HDMI I/O 4 / 1
• HDMI Version V1.3a Repeater
• HDMI Bandwidth 1080p
• HDMI Deep Color Capable (36bit)

• Analog to HDMI Upconversion

• 480i to 480p Processing (DCDi Cinema
• 1080i Upscaling (DCDi Cinema)
• 1080p Upscaling (DCDi Cinema)
• Multi-Channel Input 7.1
• Surround Pre-Outs 7.1
• Powered Zone2

• Zone 2 Line Out
• iPod Ready (DS-A2x, DS-A2, DS-A1)
• XM Radio Ready (requires XM Radio account)
• SIRIUS Radio Ready (requires Sirius Radio account)

• RS-232
• IR Input
• ONKYO-RI System Control

• 12V Trigger (Zone2)


• Pre-Pro/Learning Remote
• Glossy Black finished Remote
• Simple Remote to change input & mode
• Color-Coded Speaker Terminals

• Auto Speaker Calibration W/Mic. (Audyssey MultEQ)
• OSD Out
• Input Name Edit

• Permanent Memory Storage
• Solid Aluminum Front

Amplifier Specifications

Power Output

• Front L/R
  • 100 W + 100 W (8 ohms, 20 Hz–20 kHz, 0.08%, 2 channels driven, FTC)
• Center
  • 100 W (8 ohms, 20 Hz–20 kHz, 0.08%, 2 channels driven, FTC)
• Surround L/R
  • 100 W + 100 W (8 ohms, 20 Hz–20 kHz, 0.08%, 2 channels driven, FTC)

• Surround Back L/R
  • 100 W + 100 W (8 ohms, 20 Hz–20 kHz, 0.08%, 2 channels driven, FTC)

Dynamic Power

• 240 W (3 ohms, 1 ch)
• 210 W (4 ohms, 1 ch)
• 120 W (8 ohms, 1 ch)

THD (Total Harmonic Distortion)

• 0.08% (Rated power)

Damping Factor

• 60 (Front, 1 kHz, 8 ohms)


Input Sensitivity and Impedance

• 200 mV/47 k-ohms (Line)
  2.5 mV/47 k-ohms (Phone MM)


Output Level and Impedance

• 200 mV/470 ohms


Phono Overload

• 70 mV (MM, 1 kHz, 0.5%)


Frequency Response

• 5 Hz–100 kHz/+1 dB, -3 dB (Direct mode)


Tone Control

• ±10 dB, 50 Hz (Bass)
  ±10 dB, 20 kHz (Treble)


Signal-to-Noise Ratio

• 106 dB (Line, IHF-A)

Speaker Impedance

• 4 ohms–16 ohms or 6 ohms–16 ohms


Video Specifications

Input Sensitivity/Output Level and Impedance

Video

• 1 Vp-p/75 ohms (Component and S-Video Y)
• 0.7 Vp-p/75 ohms (Component PB/CB, PR/CR)
• 0.28 Vp-p/75 ohms (S-Video C)
• 1 Vp-p/75 ohms (Composite)


Component Video Frequency Response

• 5Hz–50 MHz (-3 dB)


Tuner Specifications

Tuning Frequency Range

• FM 87.5 MHz–107.9 MHz
• AM 530 kHz–1,710 kHz


FM/AM Preset Memory

• 40 stations


General

Power Supply

• AC 120 V-, 60 Hz


Power Consumption

• 5.9 A


Dimensions (W x H x D)

• 17 1/8" x 6 7/8" x 14 13/16"
• (435 x 174 x 377 mm)


Weight

• 26.9 lbs. (12.2 kg)


Two-Year Parts and Labor by Onkyo Canada
