Dynamic Audio Amplification

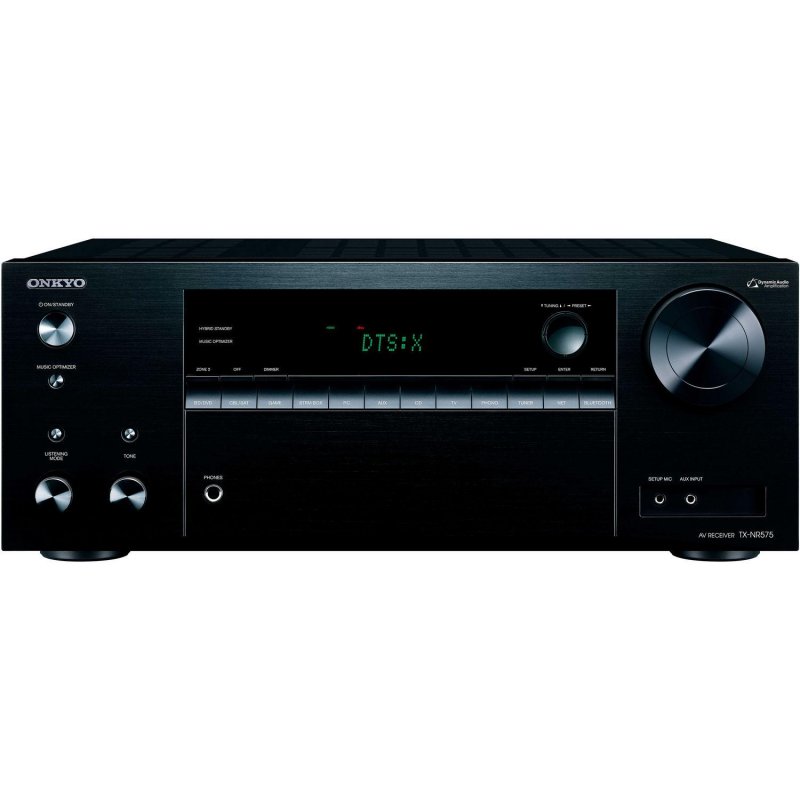

Backed by 70 years of experience building high-grade audio components, the TX-NR575 amplifies accurate, noise-free signal processing with high-current power for dynamic speaker control. The result is pure, rich and authentic sound.

Onkyo's dynamic audio amplification delivers massive power at 170 W/Ch (6 Ohms, 1 kHz, 10% THD, 1 Channel Driven)/ 80 W/Ch (8 Ohms, 20 Hz-20 kHz, 0.08% THD, 2 Channels Driven).

Smooth Analog Signal

Onkyo developed Vector Linear Shaping Circuitry (VLSC) to reassemble the audio signal to its original form following processing. Unlike conventional filters, VLSC removes pulse noise generated in D/A conversion, allowing the sound wave to be reproduced with extremely high fidelity for a smooth analog signal.

Powered Zone 2 and Zone 2 Lineouts

Powered Zone 2 speaker outputs let you send amplified network or analog audio sources to a pair of speakers in another room. Line outputs can connect your home theater network and analog audio sources to a separate hi-fi system. Control playback using Onkyo Controller.

Unlock Dolby Atmos® and DTS:X™ Playback

Object-based soundtracks allow independently mixed sound to play through any speaker in your system. Effects move all around as they do in real life, so you experience 5.2.2-channel Dolby Atmos or DTS:X formats as the director intended. DTS Neural:X™ identifies spatial effects in multichannel soundtracks and upmixes for 3D playback, while DTS:X offers independent dialog volume control for movies. Dolby Surround is also included to upmix legacy multichannel formats for playback in a Dolby Atmos-enabled environment.

Music Made Easy with Chromecast built-in*

Stream any music from your smartphone, laptop, or PC to the TX-NR575 with ease. Control playback with Chromecast enabled apps you know and love from your iPhone, iPad, Android™ phone or tablet, Mac® or Windows® laptop, or Chromebook™.

Stream Anything with DTS Play-Fi®*

DTS Play-Fi is a wireless protocol that works with any audio app on mobiles and PC. Flick whatever’s playing to the receiver, even different sources to different components at the same time.

4K HDR, BT.2020, 4K/60 Hz, and HDCP 2.2 Support

Connect up to six media players to the receiver’s HDCP 2.2-compliant HDMI® inputs. The terminals support pass-through of 4K/60 Hz video, 4K HDR in HDR10 or Dolby Vision™* formats, as well as BT.2020 4K video standard. Enjoy premium 4K Ultra HD content untouched from source to screen.

Wi-Fi®, AirPlay, Spotify®, Bluetooth®

Selectable 5 GHz/2.4 GHz Wi-Fi assures stable connectivity so you can enjoy smooth streaming over AirPlay, the Spotify app, and the local network. Bluetooth wireless technology also provides quick and simple wireless streaming from your choice of music application.

Internet Radio and Streaming Services

TIDAL, Deezer, Pandora®, and TuneIn are baked into the GUI, making it easy to select from a huge range of music and radio programs using Onkyo Controller.

384 kHz/32-bit Hi-Grade DAC

No matter what you're listening to, it will sound powerfully full, clean and clear. A premium-quality AK4458 digital-to-analog converter from Asahi Kasei implements unique low-distortion filtering technologies for clear sound, and unlocks the full potential of any audio format, including compressed, lossless, and hi-res audio.

AccuEQ & AccuReflex

AccuEQ conducts two measurements- one to set the level, distance and crossover for ALL speakers, including the subwoofer. Choose to include or bypass EQ measurement for front left and right speakers, and choose to automatically or manually set the EQ. Further, you can save your own manual EQ settings into three available presets.

AccuReflex technology aligns the phase of up-firing "height" speakers with the sound coming directly from your other speakers. Any delay is resolved so that everything arrives at your ears at the same time. The result is cohesive reproduction of object-based soundtracks.

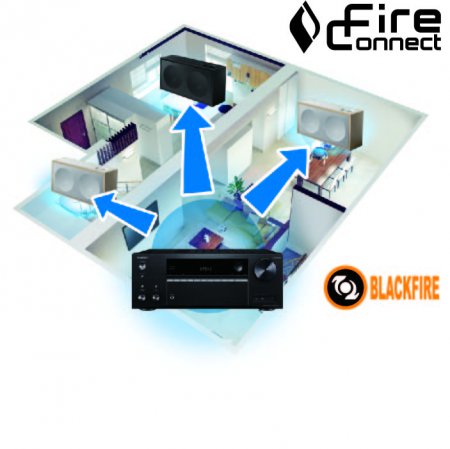

FireConnect™ Wireless Multi-room Audio

FireConnect™ mirrors network audio, analog, Bluetooth and USB sources connected to the TX-NR575 and allows distribution to compatible speakers and components in other rooms. Music selection, speaker grouping, and playback management across the home are built into Onkyo Controller app for iOS and Android™.

Features:

Amplifier:

• #Channels: 7.2
• Power Watts/Ch (6 Ohms 1kHz, 1 Channel Driven): 170 Watts, 10% THD
• Power Watts/Ch (8 Ohms 20-20kHz, 2 Channels Driven, FTC): 80 Watts, 0.08% THD
• Dynamic Audio Amplification: Yes(for Clear and Realistic Sound)
• H.C.P.S. (High Current Power Supply): Yes
• Non-Phase Shift Amplifier: Yes
• THX Certified: -
• Continuous 6 Ohms Rated: Yes
• Certified 4 Ohms Performance: Yes
• Discrete Output Stage Circuitry: Yes
• Amplifier Design: Linear Class A/B
• Independent Block Construction (Amp/Preprocessor): -
• Bi-amp Capability For Front: Yes

Processing:

• Dolby Atmos: Yes(5.2.2)
• 32-Bit Digital Signal Processing Engine: Yes
• Dolby Decoder: Atmos, True HD, DD Plus
• DTS:X: Yes
• DTS Decoder: DTS:X, DTS: Neural:X, DTS-HD Master Audio
• ONKYO GAME Surround Modes: Yes(Rock, Sports, Action, RPG)
• VLSC for Noiseless Audio Processing: Yes
• THX Processing Mode: -
• Cinemafilter: Yes
• AccuEQ Room Calibration: Yes(w/ AccuReflex)
• Phase-Matching Bass Boost: Yes
• Direct/Pure Mode: Yes
• Pure Direct Analog Path Mode: Yes
• Advanced Music Optimizer: Yes
• 384K/32 Bit DACs: Yes
• 192K/24 Bit DACs: -

Connectivity:

• Analog Audio IN: 6
• Phono Input: Yes
• Digital Audio IN (OPT/COAX): 2/1
• Composite Video I/O: 2/0
• Component Video I/O: 2/0
• Front Panel HDMI: -
• Front-Panel A/V: 1 (Analog)
• USB Input: Yes(Rear)
• HDMI I/O: 6/1
• HDMI 4K/60 Hz- Capable HDMI Terminals: Yes
• HDCP 2.2 Copy-Protection Compatibility: Yes
• HDMI Support for High Dynamic Range: Yes(HDR10 and Dolby Vision)
• HDMI Support for 3D, Audio Return Channel and CEC: Yes
• BT.2020 Support: Yes
• HDMI Support for Deep Color, x.v.Color, LipSync: Yes
• HDMI Support for DVD-Audio, SACD, Multichannel PCM: Yes
• Analog To HDMI Upconversion: Yes
• 1080p to 4K Upscaling: Yes
• 4K Passthrough: X
• Analog Pre-Outs: Subwoofer (x2)
• Speaker A/+B: -
• Powered Zone 2: Yes
• Powered Zone 3: -
• Zone 2 Line Out: Yes
• Zone 2 Video Out: -
• Zone 2 Digital to Analog Audio Conversion: Yes(Net)
• Zone 3 Line Out: -
• Whole House Mode: -
• FireConnect Multi-room Audio: Yes
• Airplay: Yes
• Google Chromecast built-in: Yes(with firmware update)
• Supports Onkyo Remote App: Yes
• Internet Radio Capable: Yes
• Spotify Connect Support: Yes
• Tidal: Yes
• Streaming Audio From PC / Network: Yes
• Hi-Res Streaming Audio Formats: Yes(DSD 5.6 MHz/2.8 MHz, 192 kHz/24-bit FLAC, WAV, AIFF, ALAC, and Dolby TrueHD)
• Streaming Audio From USB memory: Yes
• Wireless Network: IEEE 802.11 a/b/g/n 5 Ghz / 2.4 Ghz
• Bluetooth: Yes(Version 4.1 + LE, Profile: A2DP v1.2, AVRCP v1.3)

Integration Access:

• RS-232: -
• IR Input: -
• IR Output: -
• Ethernet: Yes
• ONKYO-RI System Control: -
• RIHD (Remote Interactive Over HDMI): Yes
• 12V Trigger: -

Miscellaneous:

• Pre-Programmed Remote: -
• Hybrid Standby Function: Yes
• Smart Grid-Ready: Yes
• Auto Speaker Calibration W/Mic.: AccuEQ w/ AccuReflex
• OSD Out: Yes
• Solid Aluminum Front: -
• Transparent High-Grade Speaker Terminals: -
• Detachable AC Cord: -
• Warranty: 2 Years

Amplifier Section

Power Output:

• All Channels: 170 W/Ch (6 Ohms, 1 kHz, 10% THD, 1 Channel Driven), 80 W/Ch (8 Ohms, 20 Hz-20 kHz, 0.08% THD, 2 Channels Driven, FTC)
• Dynamic Power: 160 W (3 Ohms, Front), 125 W (4 Ohms, Front), 85 W (8 Ohms, Front)
• THD+N (Total Harmonic Distortion + Noise): 0.08% (20 Hz-20 kHz, Half Power)
• Damping Factor: Over 49 (Front, 1 kHz, 8 Ohms)
• Input Sensitivity and Impedance: 200 mV / 47k Ohms
• Rated RCA Output Level and Impedance: 1 V / 470 ohms (Subwoofer Pre Out)
• Maximum RCA Output Level and Impedance: -
• Phono Overload: 70 mV (MM, 1 kHz, 0.5%)
• Frequency Response: 10 Hz-100 kHz / +1 dB, -3 dB (Direct Mode)
• Tone Control: ±10 dB, 90 Hz (Bass), ±10 dB, 7.5 kHz (Treble)
• Signal-to-Noise Ratio: 106 dB (Line, IHF-A), 80 dB (Phono, IHF-A)
• Speaker Impedance: 4 Ohms - 16 Ohms

Video Section:

• Input Sensitivity/Output Level and Impedance: -
• Video: 1.0 Vp-p / 75 Ohms (Component Y), 0.7 Vp-p / 75 Ohms (Component PB/CB, PR/CR), 1.0 Vp-p / 75 Ohms (Composite)
• Component Video Frequency Response: +0 dB, -3 dB

Tuner Section:

Tuning Frequency Range

• FM: 87.5 MHz-1070.9 MHz
• AM: 530 kHz-1,710 kHz
• FM/AM Preset Memory: 40 stations

General:

• Power Supply: AC 120 V~, 60 Hz
• Power Consumption: 580 W
• No-Sound Power Consumption: 60W
• Standby Power Consumption: 0.15 W
• Dimensions (W x H x D): 17 1/8" x 6 13/16" x 14 7/8" (435 x 173.5 x 378 mm)
• Weight: 20.7 lbs (9.4 kg)

Carton:

• Dimensions (W x H x D): 21 1/4" x 10 1/4" x 17 11/16", (539 x 260 x 450 mm)
• Weight: 26.5 lbs. (12.0 kg)
