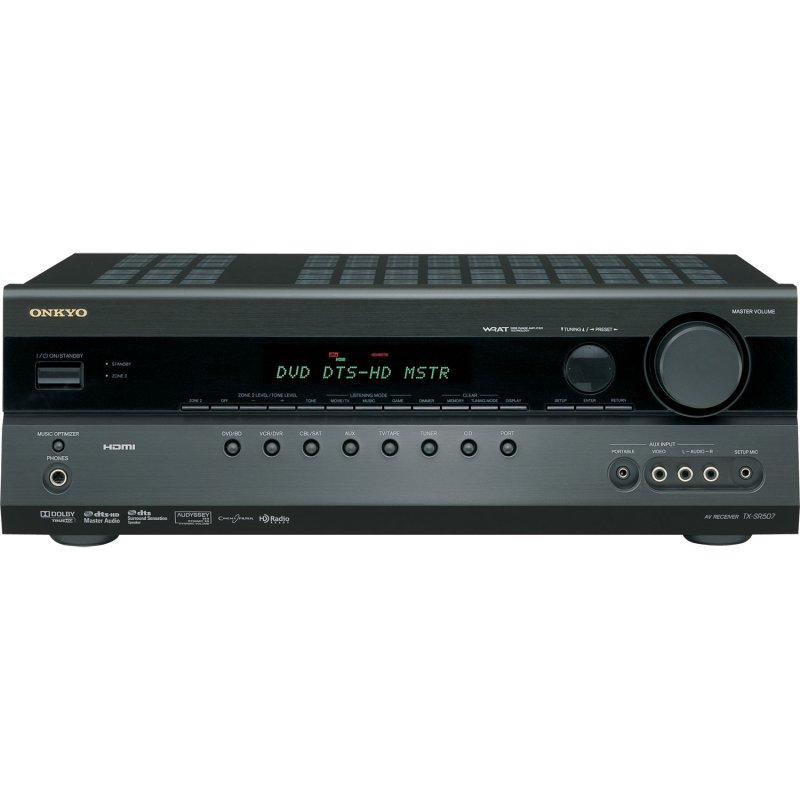

HDMI™ Version 1.3a Brings HD Audio to Entry-Level Home Entertainment

If you’re looking for a budget-friendly A/V receiver that offers versatile connectivity and compatibility with the latest processing technology, Onkyo’s TX-SR507 has you covered. With four HDMI 1.3a inputs, it can accept up to four high-definition sources—from Blu-ray Disc to HD broadcasting to high-def games—and output them to your compatible HDTV. HDMI 1.3a also enables you to enjoy the pristine “lossless” audio of Dolby® TrueHD and DTS-HD Master Audio™, as well as secondary audio on Blu-ray Disc via DTS-HD Express. The TX-SR507 comes with a suite of Audyssey surround-sound technologies to help tailor audio output to the unique dimensions of your entertainment space. Meanwhile, a new universal port makes it easy to incorporate an optional Onkyo Dock for the iPod® or Onkyo HD Radio tuner into your system. With all this, plus four high-impact Game Modes and the ability to send different audio to two rooms simultaneously, the TX-SR507 puts a huge amount of entertainment potential at your fingertips.

Special Features

• Four 1080p capable HDMI inputs (V1.3a repeater)
• WRAT technology and discrete amp construction for cleaner sound
• TrueHD/DTS-HD decoding to support the latest Blu-ray technology
• Optional iPod Dock / HDradio module via proprietary U.Port
• 4 DSP Gaming Modes: Rock, Sports, Action, and Role Playing
• Audyssey Dynamic Volume™ to Maintain Optimal Listening Level

Amplifier Section

• Power Output -
  • Front
    • L/R 75 W + 75 W (8 ohms, 20 Hz-20 kHz, 0.08%, 2 channels driven, FTC)
    • 100 W + 100 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)
  • Center 75 W (8 ohms, 20 Hz–20 kHz, 0.08%,2 channels driven, FTC)
    • 100 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)
  • Surround
    • L/R 75 W + 75 W (8 ohms, 20 Hz–20 kHz, 0.08%, 2 channels driven, FTC)
    • 100 W + 100 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)
  • Surround Back
    • L/R 75 W + 75 W (8 ohms, 20 Hz–20 kHz, 0.08%, 2 channels driven, FTC)
    • 100 W + 100 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)
• Dynamic Power
  • 180 W (3 ohms, 1 ch)
  • 160 W (4 ohms, 1 ch)
  • 100 W (8 ohms, 1 ch)
• THD (Total Harmonic Distortion) 0.08% (Rated power)
• Damping Factor 60 (Front, 1 kHz, 8 ohms)
• Input Sensitivity and Impedance 200 mV/47 k-ohms (Line)
• Output Level and Impedance 200 mV/2.2 k-ohms (Rec out)
• Phono Overload -
• Frequency Response 5 Hz–100 kHz/+1 dB, -3 dB
• Tone Control
  • ±10 dB, 50 Hz (Bass)
  • ±10 dB, 20 kHz (Treble)
• Signal-to-Noise Ratio 100 dB (Line, IHF-A)
• Speaker Impedance 6 ohms–16 ohms

Video Section

• Input Sensitivity/Output Level and Impedance -
  • Video 1 Vp-p/75 ohms (Component)
  • 0.7 Vp-p/75 ohms (Component PB/CB, PR/CR)
  • 1 Vp-p/75 ohms (Composite)
  • Component Video Frequency Response 5 Hz–50 MHz, -3dB

Tuner Section

• Tuning Frequency Range
  • FM 87.5 MHz–107.9 MHz
  • AM 530 kHz–1,710 kHz
  • FM/AM Preset Memory 40 stations

General

• Power Supply AC 120 V, 60 Hz
• Power Consumption 3.9 A
• Dimensions (W x H x D) 17 1/8" x 5 15/16" x 12 15/16" (435 x 149.6 x 379.2 mm)
• Weight 19.4 lbs. (8.8 kg)

Two-Year Parts and Labor by Onkyo Canada
