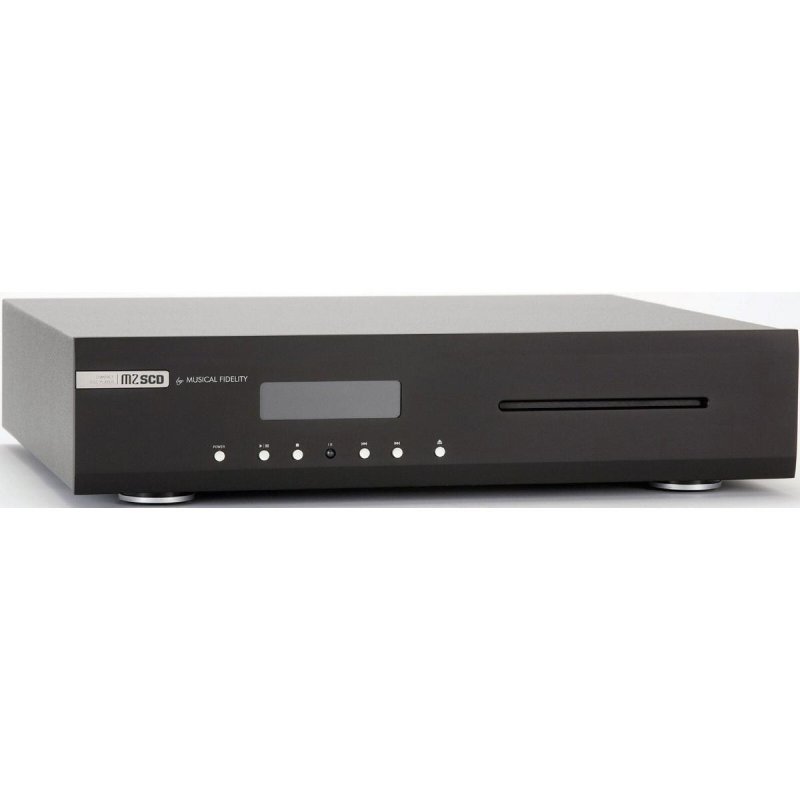

Musical Fidelity M2scd CD Player

The Musical Fidelity M2scd is a purpose-built CD player engineered to deliver serious hi-fi performance at an accessible price point. Built to match the M2si integrated amplifier, it combines refined metal casework with carefully developed digital circuitry for accurate and engaging playback.

Featuring both a mains choke filter and a dedicated digital stream noise filter, the M2scd minimises distortion, jitter and background noise. Its high-performance 24-bit DAC architecture ensures excellent data recovery from your discs, revealing clarity, space and detail across all musical genres.

Features

• High-performance dedicated CD player
• 24-bit Delta-Sigma dual differential DAC with 8x over-sampling
• Mains choke filter for improved power stability
• Digital stream noise filter to reduce jitter and interference
• Low distortion and virtually flat frequency response
• Excellent channel separation and wide dynamic range
• Analogue RCA line-level output
• Coaxial (SPDIF) and optical (TOSLINK) digital outputs
• Solid metal chassis construction

Specifications

Output

• Output impedance: 50 ohms
• RCA analogue output level (0 dB): 2.2 V r.m.s. nominal

DAC

• DAC circuit: 24-bit Delta-Sigma (bit stream), dual differential, 8x over-sampling
• Total correlated jitter: <135 picoseconds peak-to-peak
• Linearity: <0.1 dB down to -96 dB
• Frequency response: 10 Hz – 20 kHz (-0.2 dB max.)
• Channel separation: >105 dB (20 Hz – 20 kHz)
• Signal-to-noise ratio: >117 dB (A-weighted)
• Total harmonic distortion: <0.003% (10 Hz – 20 kHz)

Connections

• Analogue outputs: 1 pair RCA (left/right)
• Digital outputs: 1 x RCA coaxial (SPDIF), 1 x TOSLINK optical

Power

• Mains voltage: 115/230 V AC 50/60 Hz (factory preset)
• Alternative: 100 V AC 50/60 Hz
• Maximum consumption: 20 W

Dimensions & Weight

• Dimensions (W x H x D, incl. feet/terminals): 440 x 100 x 375 mm
• Weight (unit only): 6.65 kg
• Shipping weight: 10.5 kg

What’s in the Box

• Musical Fidelity M2scd CD Player
• Remote control
• IEC mains power cable
• User documentation
