Audio-Technica AT-XP5/H Headshell Cartridge Combo Kit

$169.00

Secure One-Page Checkout
Get 7 Miles When you spend $169.00. See details
Audio-Technica Authorised
This product is brand-new and factory sealed Audio-Technica AT-XP5/H  Available
EAN : 4961310146566  5% Price Promise
Warranty : 1yr Manufacturer Warranty Assistance
Shipping : FREE in Canada Ships out in 6 Days




To purchase now by phone, call toll-free: 1-888-248-4969. Item: 9491

$56/mo suggested payments with 3 month special financing now with Flexiti.Get Instantly approved for 0% financing

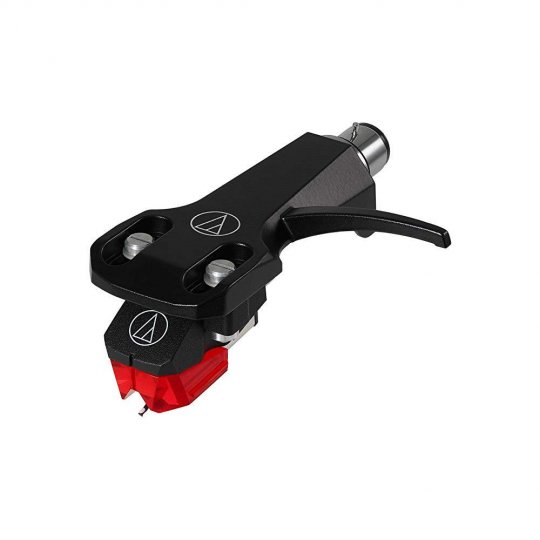

The AT-XP5/H combo kit includes the AT-XP5 DJ cartridge premounted on the AT-HS6BK headshell.

Features:

  • 0.3 x 0.7 mil elliptical bonded stylus tip
  • Highly rigid, lightweight polyphenylene sulfide (PPS)/glass fiber body
  • 5.5 mV high-level output
  • Tracking force of 2.0 to 4.0 grams (3.0 grams standard)
  • Durable carbon fiber-reinforced ABS cantilever and nylon wire suspension ensure precise tracking
  • Design offers maximum visibility of the stylus tip
  • Great tracking and channel separation for high-fidelity sound
  • Universal ½"-mount headshell for 4-pin turntable cartridges

Specifications:

  • Frequency Response: 20-18,000 Hz
  • Channel Separation: 20 (dB at 1 kHz)
  • Vertical Tracking Angle: 20°
  • Vertical Tracking Force: 2.0-4.0 g (3.0 g standard)
  • Stylus Construction: Bonded round shank
  • Recommended Load Impedance: 47,000 ohms
  • Coil Impedance: 6.7 k ohms (1 kHz)
  • DC Resistance: 990 ohms
  • Coil Inductance: 1.0 H (1 kHz)
  • Recommended load capacitance: 100 to 200 pF
  • Output: 5.5 mV (1 kHz, 5 cm/sec.)
  • Channel Balance: 2.0 dB (1 kHz)
  • Stylus Shape: 0.3 x 0.7 mil elliptical
  • Cantilever: Carbon fiber-reinforced ABS
  • Mount: Half-inch
  • Weight: cartridge 6.2 g (0.22 oz); cartridge and headshell 15.6 g (0.55 oz)
  • Dimensions: cartridge 17.2 mm (0.68") H x 17.8 mm (0.67") W x 28.3 mm (1.20") D; cartridge and headshell 21.2 mm (0.83") H x 21.4 mm (0.84") W x 62.4 mm (2.46") D
  • Replacement Stylus: ATN-XP5
  • Accessories Included: Two 11 mm installation screws, two 8 mm installation screws, two
  • washers, two nuts, non-magnetic screwdriver
