Mission brings its 40 years of audio expertise to an all-new speaker range. The QX range has striking looks and impressive performance - offering amazing value in both hi-fi and AV set-ups. Advanced new designs and extensive, exacting listening tests have evolved a loudspeaker that offers exciting and dramatic performance, no matter what style of music or movies - you prefer. Five core hi-fi models - 2 bookshelf designs and 3 floor standing speakers - are joined in the Mission QX range range by a dedicated centre speaker, two-way surround speaker and selection of subwoofers.

The Design Concept

QX series was designed to marry advanced engineering with a highly attractive and unique design that lets the speakers fit perfectly into the modern home. The front panel appearance hints at the advanced technology inside the speakers whilst presenting an attractive face to the listener.

Reverse Geometry Driven Design

Mission QX series utilizes Mission's classic IDG (Inverted Driver Geometry) driver format. By positioning the treble unit below the bass/midrange driver, the length of path is equalized so the sound waves coincide at the listener's head height. This principle improves'time alignment'.

New "ring Dome" Treble Unit

New'ring dome' treble unit

offers high levels of musical detail with low distortion - the usual dome cavitation effects are completely avoided

Dual ring radiator

Mission's exclusive'ring dome' utilizes a woven, textile material formed in a double ring arrangement. The combination of textile dome and multi-ring surround applied optimum stiffness to the maximum radiating area.

Twin rear cavity non-reflecting design

back pressure from the diaphragm is vented to a twin rear cavity, reducing resonance and maintaining a wide operating bandwidth.

Woofers

Bass Drivers Feature Mission Diadrive System

Natural midrange quality with superb bass transient impact is provided by a seam-free curvilinear cone formulated from a mixture of soft pulp and acrylic fiber specially designed for midrange clarity and lucidity.

Diadrive Twin Cone Design

Backing the curvilinear front cone is a stiff, conical support with increased area of contact with the voice coil for outstanding transient impact.

"comb-tooth trim"

The drive unit surround and fixing screws are cleverly concealed behind this unique trim design giving a highly technical look to the front face of the speaker.

Additional Features

Specifications:

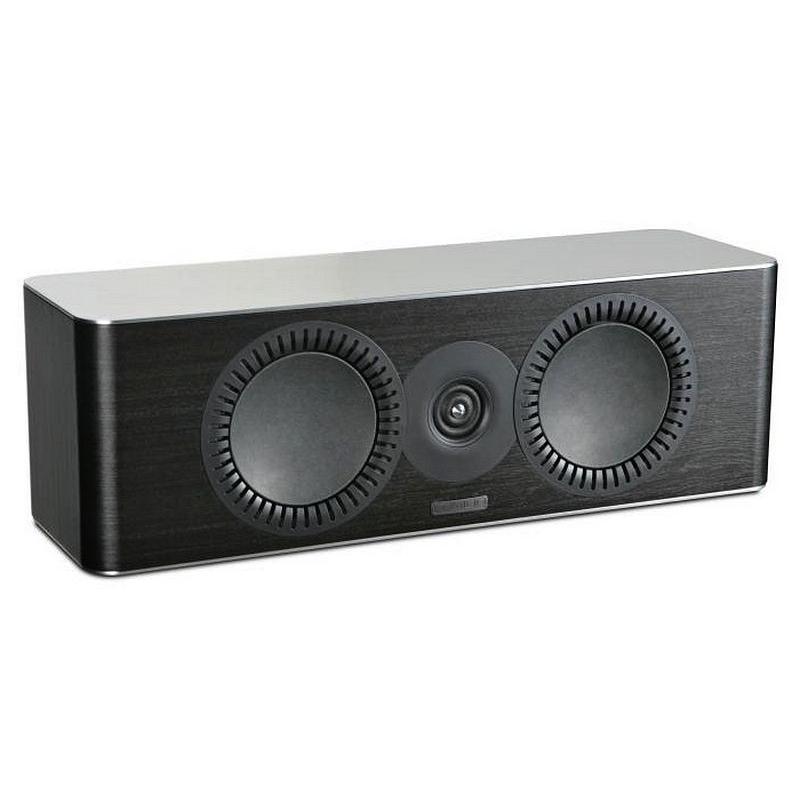

• General description: 2-way centre speaker
• Enclosure: Bass reflex
• Transducer complement: 2-way
• Bass driver: 5" (130mm) long fibre composite cone x1
• Treble driver: 1.5" (38mm) textile ring dome
• AV shield: No
• Sensitivity (2.0V @ 1m): 88dB
• Recommended amplifier power: 25-120W
• Peak SPL: 95dB
• Nominal impedance: 8? compatible
• Minimum impedance: 3.9?
• Frequency response (+/-3dB): 58Hz – 24kHz
• Bass extension (-6dB): 50Hz
• Crossover frequency: 1.6kHz
• Cabinet volume in litres: 8.1l
• Height on plinth: 175mm
• Width: 550mm
• Depth (with terminals): (170+5)mm
• Carton size: 650*270*280mm
• Net weight: 8.62kg/pcs
• Gross weight: 9.88kg/ctn
