A Winning Balance of Superb Performance and User-Friendly Features

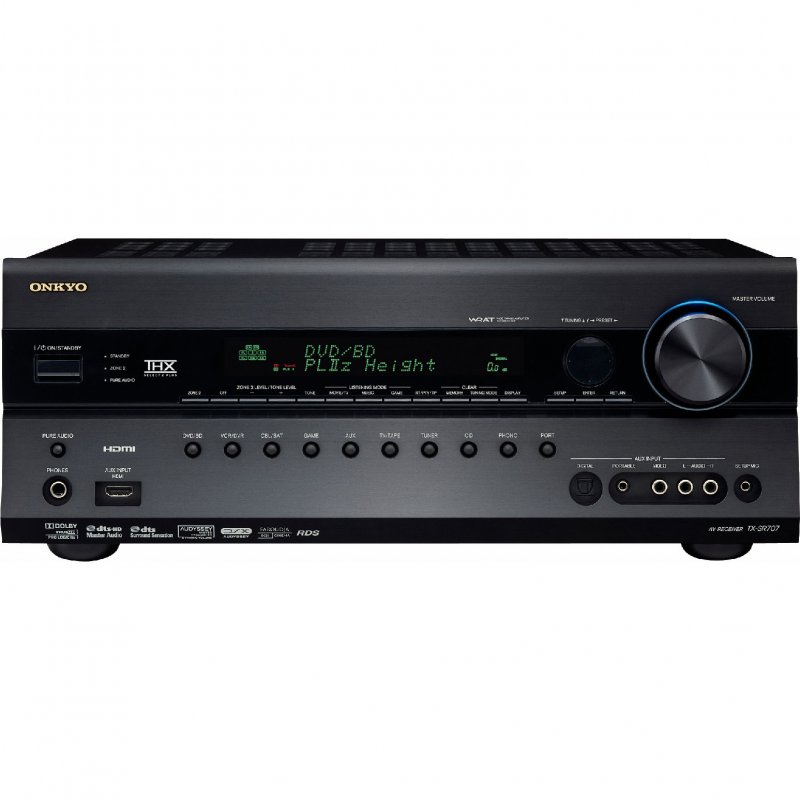

Building on Onkyo’s fine legacy in the popular mid-range AVR category, the TX-SR707 offers a wealth of audio and video features that combine to earn it the prestigious quality assurance of THX® Select2 Plus™. On the connectivity side, six HDMI™ 1.3a inputs handle all

your high-def sources, while also transporting video signals upscaled to 1080p via Faroudja DCDi Cinema™. Along with the pristine, lossless audio of Dolby® TrueHD and DTS-HD Master Audio™, the TX-SR707 handles two new surround formats: Audyssey DSX™ and Dolby® Pro Logic® IIz. These formats open up an immersive vertical dimension for games and movies, and bring more flexibility to your speaker set-up. As well as advanced Burr-Brown audio DACs, the TX-SR707 incorporates Audyssey equalization technologies to ensure an audio balance that fits your room like a glove. Peripheral devices are looked after by a Universal Port, while a customizable remote controller puts you firmly in charge. Pound for pound, the TX-SR707 stands out as a muscular and versatile middleweight contender..

Special Features

• THX Select2 Plus Certified
• HDMI V1.3a repeater (6 in (1 front)/1 out, 1080p compatible)
• HDMI 1080p upscaling powered by Faroujda DCDi Cinema
• Audyssey MultEQ for Room Correction and Speaker Calibration
• Audyssey Dynamic EQ for Loudness Correction
• Audyssey Dynamic Volume™ to Maintain Optimal Listening Level and Dynamic Range

Amplifier Section

•
• Power Output
• Front L/R 100 W + 100 W (8 ohms, 20 Hz–20 kHz, 0.08%, 2 channels driven, FTC)
• Center 100 W (8 ohms, 20 Hz–20 kHz, 0.08%, 2 channels driven, FTC)
• Surround L/R 100 W + 100 W (8 ohms, 20 Hz–20 kHz, 0.08%, 2 channels driven, FTC)
• Surround Back L/R 100 W + 100 W (8 ohms, 20 Hz–20 kHz, 0.08%, 2 channels driven, FTC)
• Dynamic Power
  • 240 W (3 ohms, 1 ch)
  • 210 W (4 ohms, 1 ch)
  • 120 W (8 ohms, 1 ch)
• THD (Total Harmonic Distortion) 0.08% (Rated power)
• Damping Factor 60 (Front, 1 kHz, 8 ohms)
• Input Sensitivity and Impedance
  • 200 mV/47 k-ohms (Line)
  • 2.5 mV/47 k-ohms (Phone MM)
• Output Level and Impedance 200 mV/470 ohms
• Phono Overload 70 mV (MM, 1 kHz, 0.5%)
• Frequency Response 5 Hz–100 kHz/+1 dB, -3 dB (Direct mode)
• Tone Control
  • ±10 dB, 50 Hz (Bass)
  • ±10 dB, 20 kHz (Treble)
• Signal-to-Noise Ratio 106 dB (Line, IHF-A)
• Speaker Impedance 4 ohms–16 ohms or 6 ohms–16 ohms

Video Section

• Input Sensitivity/Output Level and Impedance -
• Video 1
  • Vp-p/75 ohms (Component and S-Video Y)
  • 0.7 Vp-p/75 ohms (Component PB/CB, PR/CR)
  • 0.28 Vp-p/75 ohms (S-Video C)
  • 1 Vp-p/75 ohms (Composite)
• Component Video Frequency Response 5 Hz–50 MHz (-3 dB)

Tuner Section

• Tuning Frequency Range
  • FM 87.5 MHz–107.9 MHz
  • AM 530 kHz–1,710 kHz
  • FM/AM Preset Memory 40 stations

General

• Power Supply AC 120 V-, 60 Hz
• Power Consumption 5.9 A
• Dimensions
  • (W x H x D) 17 1/8" x 6 7/8" x 14 15/16"
  • (435 x 174 x 379 mm)
• Weight 27.8 lbs. (12.6 kg)

Two-Year Parts and Labor by Onkyo Canada

electronicsforless.ca is a certified Onkyo Canada dealer

*XM requires separate purchase of XM Mini Tuner and Home Dock.SIRIUS requires separate purchase of subscription,compatible tuner and antenna.
