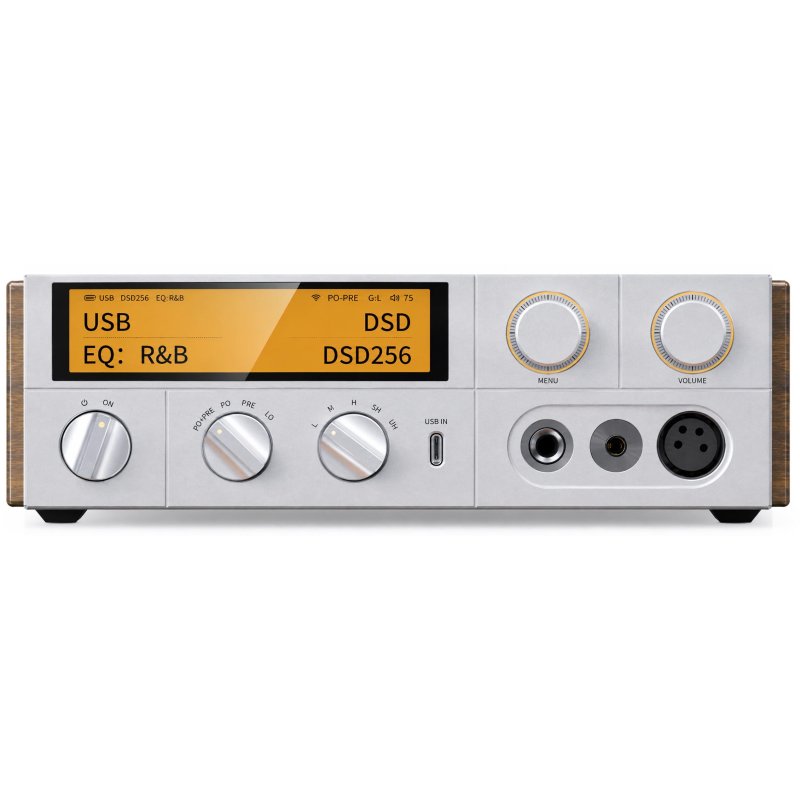

FiiO K17 R2R Desktop DAC Headphone Amplifier & Network Streamer SILVER

The FiiO K17 R2R combines a high-resolution desktop DAC, powerful balanced headphone amplifier and network streamer in a single premium component. At its core is FiiO's proprietary R2R PRO resistor ladder DAC architecture, designed for natural, detailed digital-to-analogue conversion with selectable NOS and OS operating modes.

A fully discrete balanced Class AB headphone amplifier delivers up to 4000mW per channel through the balanced output, providing substantial power for a wide range of headphones. Three front headphone connections include 6.35mm single-ended, 4.4mm balanced and 4-pin XLR balanced outputs.

Extensive connectivity allows the K17 R2R to function as the centre of a desktop or full-size Hi-Fi system. USB, optical, coaxial, HDMI ARC, RCA and balanced XLR inputs are complemented by network streaming, Bluetooth, Gigabit Ethernet and dual-band Wi-Fi. A 31-band lossless parametric EQ provides detailed sound adjustment through the FiiO Control app or web interface.

Features

• Proprietary FiiO R2R PRO resistor ladder DAC architecture
• Selectable NOS Non-Oversampling and OS Oversampling modes
• Fully discrete balanced Class AB headphone amplifier
• Up to 4000mW per channel balanced headphone output
• Supports PCM up to 32-bit/768kHz and native DSD512
• 31-band high-precision lossless parametric EQ
• Network audio streaming with Gigabit Ethernet and dual-band Wi-Fi
• Bluetooth with LDAC, aptX Adaptive, aptX HD, aptX, AAC and SBC codec support
• USB-C, optical, coaxial, HDMI ARC, RCA and balanced XLR inputs
• 6.35mm, 4.4mm balanced and 4-pin XLR headphone outputs
• Balanced XLR and RCA analogue outputs for integration with external audio systems
• Large full-colour LCD display with VU meter interface

Specifications

Audio

• DAC Architecture: Proprietary FiiO R2R PRO Resistor Ladder DAC
• DAC Modes: NOS (Non-Oversampling) and OS (Oversampling)
• Headphone Amplifier: Fully Discrete Balanced Class AB
• Maximum Headphone Output: Up to 4000mW Per Channel Balanced
• PCM Support: Up to 32-bit/768kHz
• DSD Support: Native DSD512
• EQ: 31-Band Lossless Parametric EQ

Inputs & Outputs

• Digital Inputs: USB-C, Optical Toslink, Coaxial and HDMI ARC
• Analogue Inputs: RCA Line In and Balanced XLR Line In
• Digital Outputs: Optical and Coaxial
• Analogue Outputs: RCA Line Out, Balanced XLR Line Out and Pre-Out
• Headphone Outputs: 6.35mm Single-Ended, 4.4mm Balanced and 4-Pin XLR Balanced

Connectivity & Control

• Network: Gigabit Ethernet and Dual-Band Wi-Fi 2.4GHz/5GHz
• Bluetooth Codecs: LDAC, aptX Adaptive, aptX HD, aptX, AAC and SBC
• Streaming: Network Audio Streaming with App Control
• Control: Front Panel Controls, FiiO Control App, Web Interface and Infrared Remote

General

• Product Type: Desktop DAC, Headphone Amplifier and Network Streamer
• Display: Large Full-Colour LCD with VU Meter Interface
• Chassis: CNC-Machined Aluminium Alloy
• Power Supply: Internal Linear Power Supply with Toroidal Transformer
• Finish: Silver

What's in the Box

• FiiO K17 R2R Desktop DAC and Headphone Amplifier
