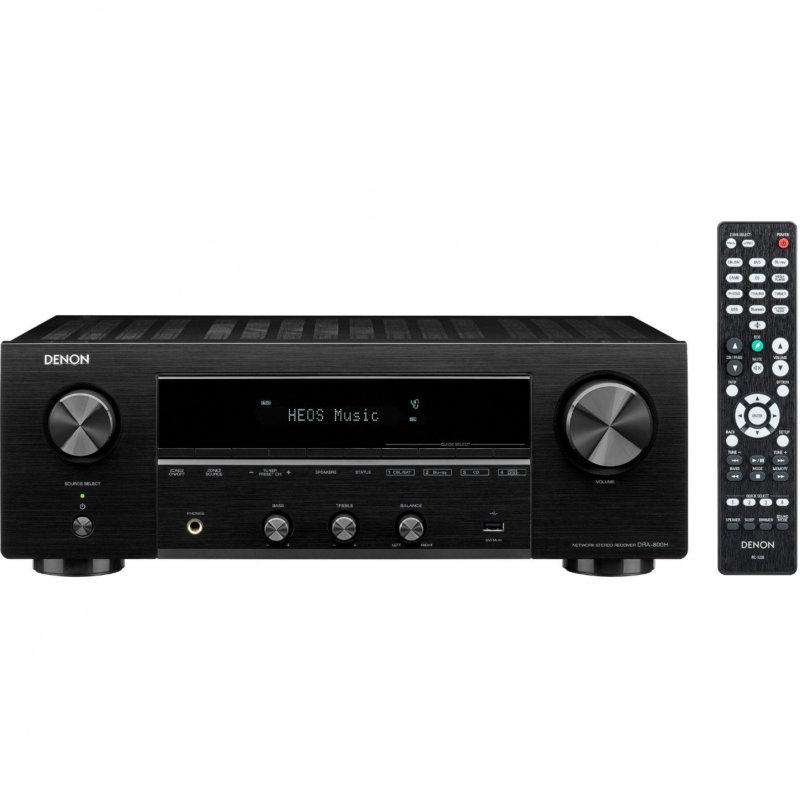

Denon stereo receiver built with Hi-Fi amplification seamlessly integrates with the latest Hi-Res audio, wireless, voice control and AV receiver technologies including five 4K Ultra HD HDMI inputs.

Discrete, high performance

Stereo networked amplifier specifically designed to meet the demands of your speakers.

Advanced HDMI

Enjoy your favorite movies, shows, and games with the best picture quality available.

Expertly engineered

Enjoy your movies, music, and games with Denon hi-fi quality sound.

High-res audio support

Enjoy superb audio fidelity with your favorite high-resolution audio tracks.

Hi-Res Certified

Network and front panel USB allows for gapless playback of high-resolution audio including 192kHz/24bit FLAC, WAV, ALAC and DSD 2.8/5.6MHz.

5 HDMI Inputs and 1 HDMI Output with 4K Capability and ARC Support

Five HDMI inputs with full support for HDCP 2.3, HDR10, Hybrid Log-Gamma (HLG), 4:4:4 color resolution and BT.2020 and one HDMI output with ARC support provides the greatest video quality with exceptional brightness, contrast and color.

Dual High-Grade 5-Way Binding Posts with A+B Speaker Select

Connect two pairs of speakers for easy A/B switching, or extend your system to a second room and listen to a different source in Zone 2 via pre-outs.

Multichannel Surround

• DTS HD Master / DTS:X    No / No
• DTS Neo:X / DTS Neural:X    No / No
• DTS Virtual:X    No
• IMAX Enhanced    No
• Dolby TrueHD / Dolby Atmos/Dolby Atmos Height Virtualization    No / No / No
• Dolby ProLogic Ilz / Dolby Surround    No / No
• Auro 3D    No
• Audyssey DSX    No
• Multichannel Stereo    No
• Max Number of Processing (Preamp) Channels    2.1

Sound Enhancements

• Mono Block Power Amp Construction    No
• Discrete Power Amplifier    Yes
• D.D.S.C. HD Digital    No
• Pure Direct    Yes
• Gold Plated RCA Terminals    Yes
• Clock Jitter Reducer    No
• Alpha Processing    No
• Denon Link HD    No
• Audyssey    No
• Audyssey Dynamic EQ / Dynamic Volume    No / No
• Audyssey LFC    No
• Compressed Audio Restorer    Yes

Network

• Media Server    Yes
• HEOS Wireless Multi-Room Technology    Yes
• Bluetooth Re-transmit for Bluetooth headphones    Yes (update)
• Alexa / Google Voice Assistant / Apple HomePod    Yes / Yes / Yes
• Lossy Formats: MP3 / WMA / AAC    Yes / Yes / Yes
• Lossless Formats: FLAC / ALAC / WAV    Yes / Yes / Yes
• DSD Audio Streaming    Yes (2.8/5.6MHz)
• FLAC HD 192/24    Yes
• WAV 192/24    Yes
• ALAC 192/24    Yes
• Gapless playback    Yes (FLAC, WAV ,ALAC ,DSD)
• Photo Streaming (JPEG)    No
• Internet Radio    Yes (TuneIn)
• Spotify*    Yes (connect)
• Pandora    Yes
• SiriusXM*    Yes
• Other Streaming Services *    Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix
• HEOS App Control    Yes
• Compatible with Remote APP for Smart Phones    Denon 2016 AVR Remote
• Compatible with Remote APP for Tablets    Android / iOS / Amazon Kindle
• Ethernet Ports    Yes
• Wi-Fi    Yes
• Bluetooth    Yes

HDMI

• HDMI Inputs: Back / Front    5 / No
• HDCP 2.2 support    Yes (HDCP 2.3)
• HDMI Outputs: Main / Zone    1 / No
• Video Conversion Analog -> HDMI    No
• Analog to HDMI Scaling    No
• HDMI to HDMI Scaling    No
• GUI Overlay on HDMI    Yes
• HDMI: 3D / 4K / CEC / ARC / InstaPrevue    Yes / Yes / Yes / Yes / No
• Enhanced ARC    No
• HDR / HLG / Dolby Vision    Yes (HDR10) / Yes / No
• ALLM (Auto Low Latency Mode) Pass-through for gaming    Yes
• 3D Signal Pass-through    Yes
• 4K Signal Pass-through / Scaling / GUI Overlay    Yes / No / Yes
• HDMI Pass-Through in Standby Mode    Yes
• Picture Adjust / Noise Reduction    No / No
• CEC    Yes
• DSD Audio Capability    No
• Audio Return Channel    Yes
• Auto LipSync    Yes

Multi-room CI

• Multi-Room Zones    2
• Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog    Yes (2ch) / Yes (2ch) / Yes / Yes
• Zone Audio Output: Speaker / Preout    No / Yes
• Zone HDMI Output from HDMI Source    No
• IP Control / RS232 Control / Web Control / App Control    Yes / No / Yes / Yes
• Remote In / Out    Yes / No
• DC Trigger Output    No
• HDMI Diagnostics    Yes

Others

• Auto Speaker Setup by Microphone    No
• FL Display    1 line
• Graphic User Interface - GUI    Hybrid GUI
• ISF Certification    No
• GUI Languages    3
• Setup Assistant    Yes
• Quick Select Plus / Quick Select    Yes / No
• Firmware Update by: Network / USB    Yes / Yes
• Variable Cross Over    No
• Optimized Bass Redirection    No
• Bass Sync    No
• ECO Mode    Yes
• Auto Power Off    Yes
• Sleep Timer    Yes

Inputs Outputs

• Composite In / Out    No / No
• Component In / Out    No / No
• HDMI In / Out    5 / 1
• Multi-room Video Out: Video / HDMI    No / No
• Phono (MM) In    Yes
• Digital In: Optical / Coaxial    2 / 1
• Multi-room Out: Analog / Digital    1 / 0
• Multichannel Preout    Yes (0.2) / No
• Subwoofer Out    2
• 7.1 Multichannel Input    No
• Speaker Terminal: Gold Plated Screw / Regular Screw    Yes / No
• Number of Speaker Terminals    4
• Speaker A / B    Yes
• Bi-amp Drive    No
• Multi-Room Speaker Terminal    No
• Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB    No / No / No / No / Yes
• USB Audio / Made for iPod / Made for iPhone    Yes / No / No
• AM/FM Tuner    Yes

Specifications

• Number of Power Amps    2
• Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)    100 W
• Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive)    No
• Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)    120 W
• Power Output (6 ohm, 1 kHz, 10% 1ch Drive)    175 W

General

• Metal Front Panel    No
• System Remote Control    RC-1235
• Pre-programmed / Learnable / LCD Display    No / No / No
• Power Consumption in W    TBD
• Power Consumption No-Sound (ECO On / Off) in W    TBD
• Standby Consumption in W    0.1
• CEC Standby Consumption in W    0.5

Maximum Dimensions

• Antenna: Horizontal: (W x D x H) in Inches
• Antenna: Vertical: (W x D x H) in Inches
• W/O Antenna: (W x D x H) in Inches    17.1× 13.3 × 6
• ( 17.1 x 13.3 x 8.5)
• Weight in LBS    18.3
• Power Supply    AC 120 V, 60 Hz
• Speaker impedance    4 - 16Ω/ohms
• Input sensitivity    200 mV
• Frequency response    10 Hz - 100 kHz — +1, –3 dB (Direct mode)
• S/N Ratio    98 dB (IHF-A weighted, Direct mode)
• FM section (Tuning frequency range)    87.5 - 107.9 MHz
• AM section (Tuning frequency range)    520 kHz – 1710 kHz
