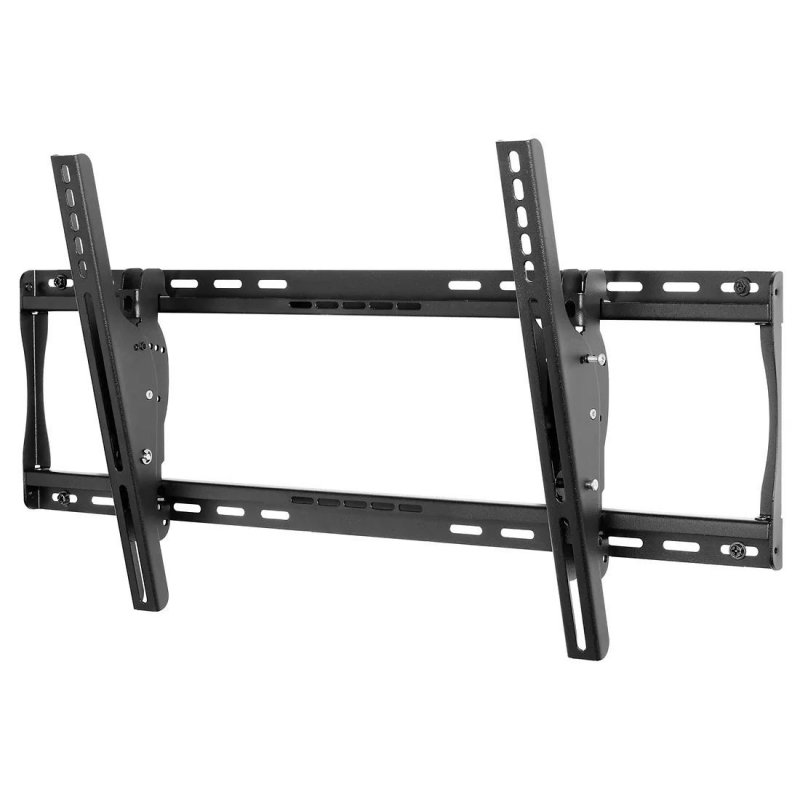

The Neptune™ Outdoor Universal Tilt Wall Mount provides a sure way to mount flat panel displays outdoors with its corrosion resistant E-Coat finish and stainless steel hardware. In addition to simple installation with its Hook-and-HangTM design, this mount offers tilt functionality while keeping the display a mere 2.64" (67mm) from the wall. Tamper-resistant hardware deters theft, offering peace-of-mind with every installation and for additional security, the mount has accommodations for optional padlocks.

Simple Set-Up

Hook-and-HangTM design helps attach enclosure to mount and hold the weight load while fine-tuning adjustments

Easy Display Centering

8" (203mm) of horizontal adjustment for ideal display position

Open Wall Plate

Allows total wall access, increasing electrical and cable management options

Viewing Angle Flexibility

Incremental tilt settings enable the best viewing angle

Features:

• Made of corrosion resistant materials for weather resistance
• Universal mount fits displays with mounting patterns up to 732 x 405mm (28.84"W x 15.94"H) and up to 600 x 400mm VESA® compliant
• OneTouchTM tilt allows adjustment of +15/5º with optional tilt lock in 5º increments
• Horizontal display adjustment up to 8" (203mm) for better display placement
• 2.64" (67mm) from the wall
• Double stud mounting with 16", 20" & 24" stud placements
• Tamperresistant hardware is standard and also has accommodations for optional padlocks
• Wood, concrete or cinder block mounting hardware included

Specifications:

• Dimensions (W x H x D): 30.87" x 16.89" x 2.64"-5.51" (784 x 429 x 67-140mm)
• Product Weight: 8.5lb (4kg)
• Load Capacity: 175lb (79kg)
• Finish: E-Coat Covered with Outdoor Powder Paint
