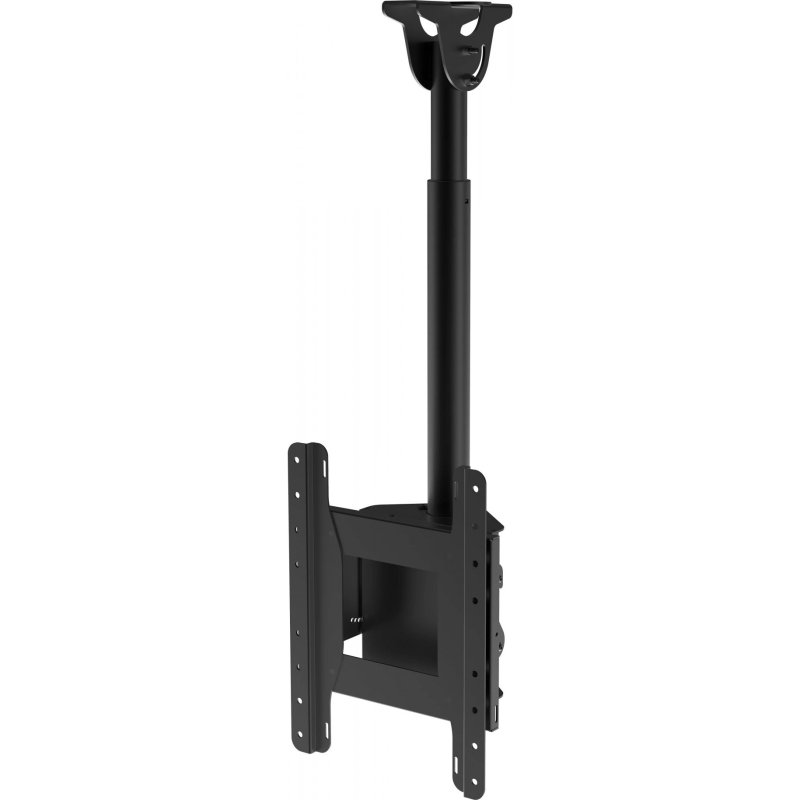

Neptune OCMUA Outdoor TV Ceiling Mount for 43in to 75in TVs BLACK

The Neptune OCMUA Outdoor TV Ceiling Mount is designed specifically for Neptune Outdoor TVs and provides a corrosion-resistant mounting solution for wind-protected outdoor installations. Its outdoor powder-coated finish and stainless steel hardware help protect against corrosion, while the cathedral ceiling plate allows installation on flat or angled ceiling structures.

An adjustable extension column provides 32.5 to 54.5 inches of vertical adjustment, with internal cable management that routes wiring through the center of the column for a clean installation. The mount also offers 360-degree swivel and IncreLok tilt adjustment for flexible TV positioning. :chatgpt-content-reference{index="0"}

Features

• Designed for Neptune Outdoor TVs from 43-Inch to 75-Inch
• Corrosion-resistant construction for outdoor applications
• Outdoor powder-coated finish
• Stainless steel mounting hardware included
• Cathedral ceiling plate supports ceiling angles from 0° to 95°
• Adjustable extension column provides 32.5 to 54.5 Inches of vertical adjustment
• 360° side-to-side swivel for flexible viewing positions
• IncreLok tilt adjustment at -5°, 0°, 5°, 10°, 15°, or 20°
• Internal cable management routes cabling through the extension column
• Supports VESA mounting patterns up to 400 x 400mm
• Supports VESA patterns up to 600 x 400mm when used with the optional OWMTL tilt wall mount
• Mounts to wood stud or concrete
• Maximum load capacity of 175 lb

Specifications

Compatibility

• Model: OCMUA
• TV Size Compatibility: 43-Inch to 75-Inch TVs
• Compatible Neptune TV Sizes: 55-Inch, 65-Inch, and 75-Inch
• Mounting Surface: Wood Stud or Concrete

Mounting & Adjustment

• VESA Compatibility: 100 x 100, 200 x 100, 200 x 200, 300 x 200, 300 x 300, 400 x 200, 400 x 300, and 400 x 400mm
• Optional Extended VESA: Up to 600 x 400mm with OWMTL
• Tilt: -5°, 0°, 5°, 10°, 15°, or 20°
• Swivel: 360°
• Ceiling Angle Compatibility: 0° to 95°
• Vertical Adjustment: 32.5 to 54.5 Inches
• Cable Management: Internal Through-Column Routing

Dimensions & Capacity

• Dimensions: 13.04 x 32.50-54.50 x 8.29 Inches
• Product Weight: 32.2 lb
• Maximum Load Capacity: 175 lb
• Finish: Outdoor Powder Coated
• Colour: Black

Package Information

• Package Dimensions: 37.50 x 14.60 x 6.10 Inches
• Package Weight: 37.2 lb
• UPC: 735029359487
• Units Per Package: 1
• Warranty: Limited 5 Years

What's in the Box

• Neptune OCMUA Outdoor TV Ceiling Mount
• Mounting Hardware
• Fasteners
