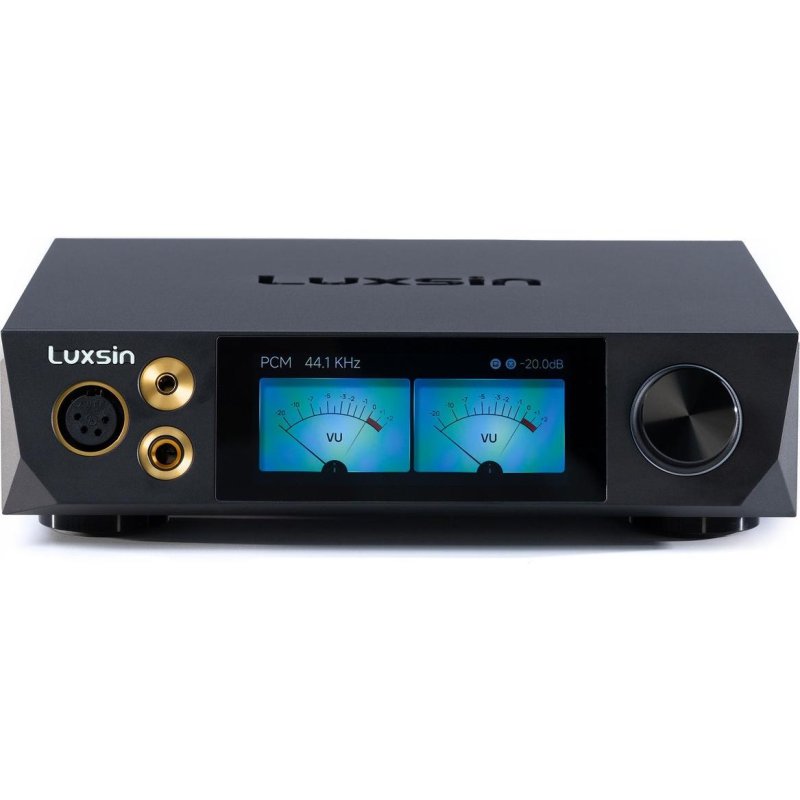

Luxsin X8 Intelligent DAC & Headphone Amplifier
The Luxsin X8 is a high-performance desktop DAC and headphone amplifier built around eight Cirrus Logic CS43198 DAC chips in a true dual-mono parallel architecture. Four DACs operate in parallel for each channel, with independent left and right power, circuit layout and signal paths designed to reduce crosstalk and interference.
A customized DigitalAudio Core combines dual-core HiFi-5 DSP processing with ARM architecture for real-time audio processing and advanced tuning. Luxsin's AI-assisted EQ allows sound profiles and individual parameters to be adjusted using voice or text commands, while control is available through the touchscreen, mobile app and web interface.
The headphone amplifier uses multiple OPA1612 op-amps and TPA6120A2 high-current drivers, delivering up to 4840 mW per channel through the balanced 4.4 mm and XLR4 outputs. Automatic impedance detection works across the XLR4, 4.4 mm and 6.35 mm headphone outputs and can automatically select an appropriate gain setting.
A 4-inch full-colour touchscreen, CNC-machined aluminum chassis, adjustable linear power supply, Wi-Fi, Bluetooth and a comprehensive selection of digital inputs make the X8 suitable as both a dedicated headphone listening system and a DAC for a larger audio system.
Features
- Eight Cirrus Logic CS43198 DAC chips with four DACs operating in parallel per channel
- True dual-mono architecture with independent left and right signal paths
- Luxsin DigitalAudio Core with dual-core HiFi-5 DSP and ARM architecture
- AI-assisted EQ tuning with voice and text control
- Up to 4840 mW per channel from balanced headphone outputs
- Automatic headphone impedance detection and gain matching
- Independent settings memory for each headphone output
- 4-inch full-colour touchscreen
- USB-B, USB-C, IIS, optical and coaxial digital inputs
- Balanced XLR and single-ended RCA analog outputs
- 6.35 mm, 4.4 mm balanced and 4-pin XLR balanced headphone outputs
- 2.4 GHz and 5 GHz Wi-Fi plus Bluetooth 5.1
- 12V trigger input and output
- Ultra-low-noise adjustable linear power supply
- CNC-machined aluminum chassis
Specifications
General
- Product Type: Desktop DAC and Headphone Amplifier
- DAC: 8 x Cirrus Logic CS43198
- Display: 4-inch full-colour LCD touchscreen, 480 x 960
- Power Supply: Ultra-low-noise voltage-adjustable linear power supply
- Wi-Fi: 2.4 GHz / 5 GHz
- Bluetooth: Qualcomm SXW5125, Bluetooth 5.1
- Control: Touchscreen, Android/iOS app, web browser and optional IR remote
- Rated Power: 25 W
- Dimensions: 9.29 x 9.32 x 2.52 in (236 x 236.8 x 64 mm)
- Weight: 6.06 lb (2.75 kg)
Inputs & Outputs
- USB-B / USB-C: Up to PCM 768 kHz / 32-bit and native DSD512
- IIS: Up to PCM 768 kHz / 32-bit and native DSD512
- Coaxial / Optical: Up to PCM 192 kHz / 24-bit
- Analog Outputs: Balanced XLR and single-ended RCA
- Headphone Outputs: 6.35 mm unbalanced, 4.4 mm balanced and 4-pin XLR balanced
- Trigger: 12V trigger input and output using 3.5 mm connectors
Balanced Headphone Output
- Maximum Output: At least 4840 mW + 4840 mW into 16 ohms at THD+N below 1%
- Output Impedance: Less than 1 ohm
- THD+N: Below -117 dB at 1 kHz / 0 dB into 32 ohms
- Signal-to-Noise Ratio: At least 123 dB
- Crosstalk: At least 119 dB at 1 kHz into 32 ohms
6.35 mm Headphone Output
- Maximum Output: At least 2900 mW + 2900 mW into 16 ohms at THD+N below 1%
- Output Impedance: Less than 1 ohm
- THD+N: Below -115 dB at 1 kHz / 0 dB into 32 ohms
- Signal-to-Noise Ratio: At least 121 dB
Analog Output Performance
- XLR Output Level: 4.2 Vrms
- XLR SNR: At least 129.5 dB
- XLR THD+N: Below -121.8 dB unweighted
- RCA Output Level: 2.1 Vrms
- RCA SNR: At least 124.5 dB
- RCA THD+N: Below -120 dB unweighted
What's in the Box
- Luxsin X8 Intelligent DAC & Headphone Amplifier
- Power Cable
- USB-B Cable
- 3.5 mm to 6.35 mm Adapter
Product Details
- Luxsin Audio X8
-
Brand New : Factory Sealed
- EAN : 6977843850014
- EFLC : 17229
- Write a review
Warranty
One Year Warranty
- Parts and Labour Warranty
- Canada-wide Coverage
- Luxsin Audio Authorized
