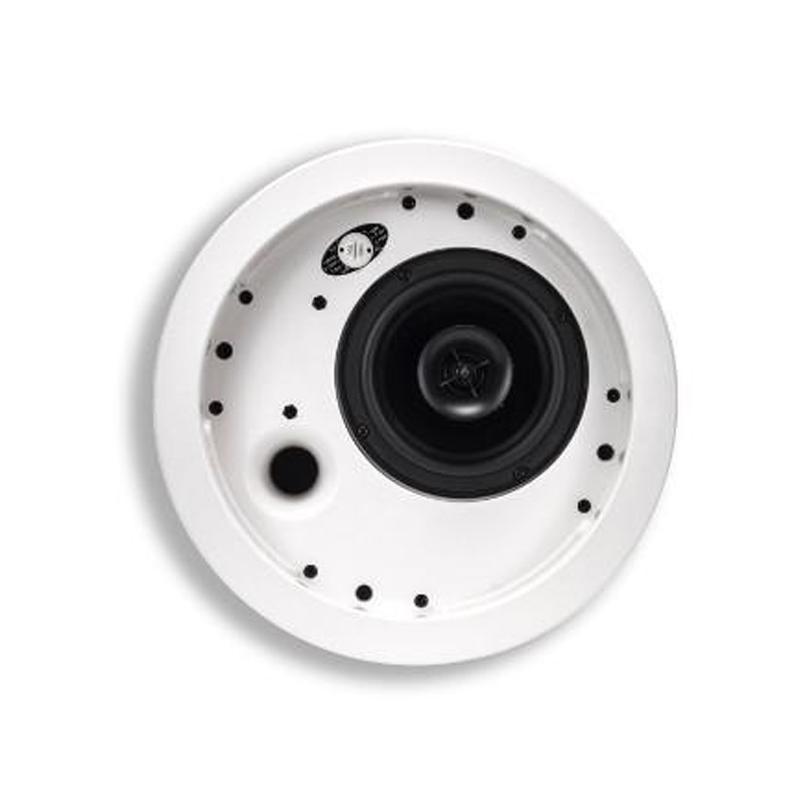

At just over 4" deep, the all-new IC-500-T-SC packs proven materials and wide dispersion horn technology into an installer-friendly, UL-2043 and UL-1480 certified in-ceiling loudspeaker with an integrated back can and multi-tap transformer.
Features:
- Shallow 4.125" depth
- Includes 15 watt 70/100 volt multitap transformer
- 70V, 100V, or 8 ohm operation selectable via front baffle switch.
- Tractrix port design for deep bass with less compression
- Tractrix horn tweeter for smooth on and off axis performance
- Designed to mix and match with Klipsch CA speakers
- Includes grille, backcan, tile-bridge, and cut-out template for easy installation
Specifications:
- Frequency Response1: (+/- 4 dB) 95 Hz - 20 kHz
- Power Handling2: 50 watts (14.5V) 200 watts peak
- Maximum SPL3: 101 dB Continuous 107 dB Peak
- Sensitivity4: 87 dB
- Coverage Angle: 80º
- Directivity Index (DI): 8 dB
- Directivity Factor (Q): 6.3
- Nominal Impedance: (IN 8 OHM BYPASS MODE) 8 ohms 4.2 ohm minimum
- Components: One 5" (12.7cm) woofer 1" (2.54cm) Titanium diaphragm compression driver
- Input Connection: Terminal Strip
- Tap Settings 70V: 15w, 7.5w, 3.8w, 1.9w 100V: 15w, 7.5w, 3.8w
- Enclosure Type: Bass-reflex via Tractrix port
- Safety Agency Rating: UL-1480, UL-2043
- Wire Gauge Accommodated: 14 AWG
- Cutout Dimensions: 9.125" (23.2cm) diameter
- Mounting Depth: 4.125" (10.5cm)
- Overall Depth: 4.375" (11.1cm)
- Overall Width: 10.75" (27.3cm) diameter
- Thru Hole Width: 9" (22.8cm)
- Weight: 5.5 lbs. (2.5kg)
- Finishes: White/Paintable
- Accessories: Mud Ring Kit (PN: 1010413)
Product Details
- Klipsch IC500TSCW
-
Brand New : Factory Sealed
- UPC : 743878029819
- EFLC : 7933
