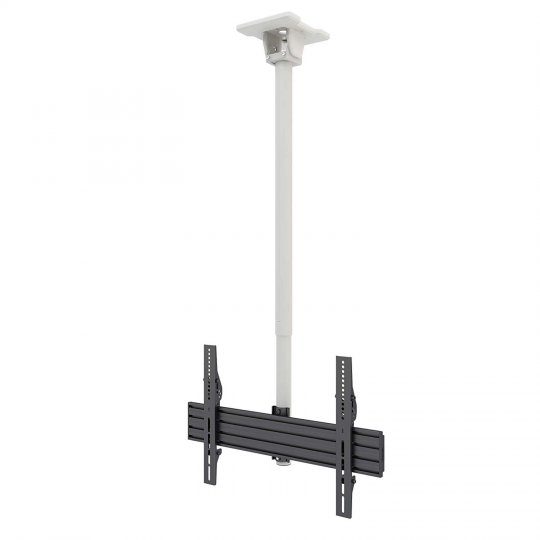

The CM600W TV Ceiling Mount is engineered to ensure a quick installation on both fl at and sloped ceilings. Capable of swinging up to 90°, its telescoping extension pole provides 23" of height adjustment and 360° of rotation, allowing you to position your TV exactly where you want it. Along with adjustable leveling screws, its mounting brackets feature four discrete tilt options, giving you the ability to angle your TV independent of the pole. Tilt it up to 15° forward to improve line-of-sight, or 6° backward to compensate for potential lean. Unobstructed cable management is also provided through the entire length of the mount, keeping your cables safe and out of sight.
Easy Installation
The detachable mounting plate can be easily installed to any wood stud or concrete ceiling. Simply slide the extension pole into place and secure it to complete the installation.
Angled Ceilings
Adjust the mounting plate up to 90° to account for sloped ceilings and support beams, or to install the mount vertically on a wall.
Adjustable Height
The telescoping extension pole provides up to 23" of height adjustment, ensuring your TV is positioned at an ideal level.
Swivel & Tilt
Along with 360° of rotation, the CM600W offers four discrete tilt options. In 5° increments, angle your TV up to 15° forward to improve line-of-sight. To compensate for lean, the brackets can also be
tilted 6° backward.
Integrated Cable Management
The extension pole's hollow core provides an unobstructed path to route your cables, while an opening in the mounting plate allows them to continue through the ceiling for a truly professional setup.
Features:
- Fits most flat panel TVs from 37" to 70"
- Supports TVs up to 110 lb (50 kg)
- Accommodates VESA sizes from 75x75 to 600x400
- Accessible tilt mechanism provides +15° to -6°of tilt
- 360° of swivel
- Height adjustable from 42.7" to 66.3" (108.5 to 168.5 cm) from ceiling
- Adjustable horizontal leveling
- Single and dual stud mounting plate
- Integrated cable management
- Ceiling and wall mountable
- Anodized aluminum and solid steel construction with durable powder coated fi nish
- Includes manual and all mounting hardware for wood stud and concrete installation
Specification:
- Product weight: 19.8 lb (9.0 kg)
