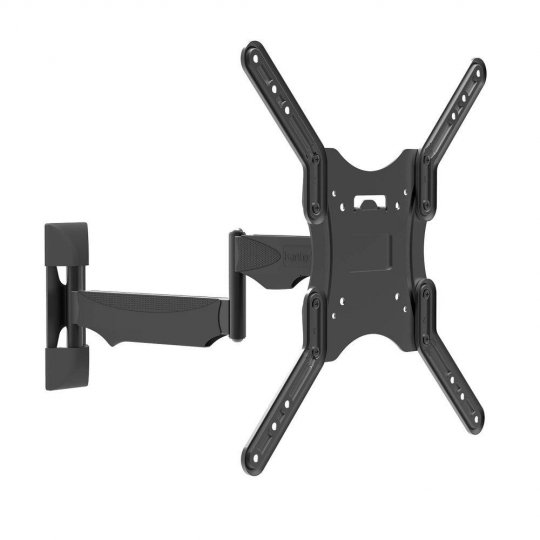

The M200 single-stud TV mount allows you to achieve a wide range of viewing angles without taking up a large amount of wall space. Providing 18.6 inches of extension, its articulating support arm provides easy swivel, pan and tilt adjustments to improve line-of-sight with your TV. The arm can also be pushed back to place your TV 1.8" from the wall, with the center of the screen sitting 3.9 inches to the left or right of the wall plate. Featuring snap-on cable management clips and wall plate covers, the M200 provides a clean and low-profile solution to your TV mounting needs.

Single Stud Installation

The M200's narrow wall plate is designed to fit on a single wood stud while safely supporting up to 60 pounds. Anchors are also provided for brick and concrete installations.

Improved Viewing

Measuring 18.6" long, the articulating arm allows for a wide range of viewing angles. Swivel your TV 51° to 90° in either direction, depending on screen size, and tilt it up to 12° forward to improve line-of-sight and 2° backward to reduce glare.

Low Profile Design

Achieve a remarkably low-profile setup by pushing your TV back to sit 1.8" from the wall. Note that the center of your TV will be situated 3.9" to the left or right of the wall plate when fully pushed back.

Clean Appearance

Use the provided cable management clips to conveniently route your cables, ensuring your viewing area remains clutter-free. Plastic wall plate covers are also included to hide any sign of installation.

Features:

• Fits most flat panel TVs from 26" to 50"
• Supports TVs up to 60 lb (27 kg)
• Accommodates VESA sizes:
• 100x100, 150x100, 200x100,
• 200x150, 200x200, 200x300, 200x400,
• 300x200, 300x300, 400x200, 400x300, 400x400
• Accessible tilt mechanism provides a +12° to -2° viewing angle
• Swivels 51° to 90° in either direction, depending on screen size
• Sits 1.8" (4.5 cm) from the wall
• Extends up to 18.6" (47.2 cm) from the wall
• Integrated cable management
• Single stud wall plate with 3.9" offset (9.9 cm) left or right
• Solid steel construction with durable powder-coated finish
• Installation manual and all mounting hardware for wood stud and concrete installation is included

Specification:

• Product weight: 6.6 lb (3 kg)
