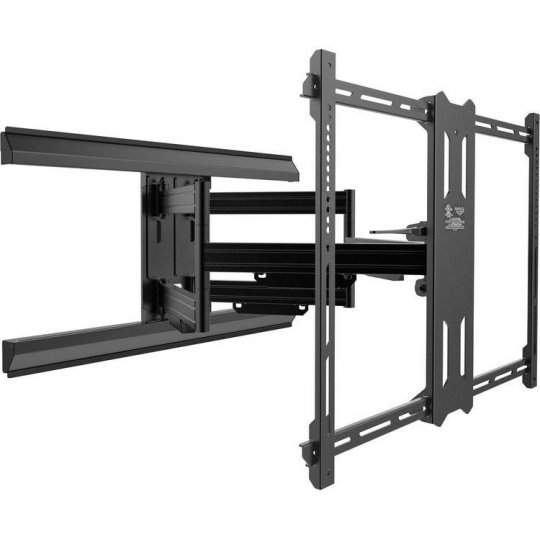

Full Motion TV Mount – Pro Series

Don't let the size of your TV dictate where you put it. Capable of supporting TVs up to 100", the PMX700 features two articulating arms that can be horizontally offset to give you the utmost discretion over where your TV is placed. With 31.3" of extension, this full motion wall mount provides enough tilt and swivel movement to ensure you always have the perfect viewing angle. Its low profile design allows your TV to sit 2.6" from the wall when fully retracted and features cable management clips to keep your cables out of sight.

Features:

• Integrated cable management
• Adjustable horizontal leveling
• Aluminum covers to hide lag bolts cULus Certified

Supports 150 Pounds

The PMX700's solid steel frame safely holds up to 150 lb (68 kg), even at full extension.

Horizontal Offset

Center your TV on the wall regardless of where your studs are located by adjusting the PMX700's arm assembly 11" (27.9 cm) left or right.

Low Profile Design

The unique design of the PMX700 allows your TV to sit 2.6 inches from the wall when fully pushed in.

Extends 31 Inches

Easily reach over fireplaces or out of recessed locations with 31.3" (79.5 cm) of extension.

Toolless Tilt Mechanism

Effortlessly tilt your TV 12° forward or 3° backward with the PMX700's newly designed toolless tilt mechanism.

Aluminum Security Covers

Maintain a clean, finished appearance while hiding any sign of installation with the PDX700's aluminum wall plate covers.

Swivels Up to 180 Degrees

Achieve the best viewing angle regardless of where you're sitting by swivelling your TV up to 90 degrees left or right, depending on screen size.

Sleek Cable Management

Four cable management raceways located on the bottom of each arm help to keep your viewing area tidy.

One Box. Multiple Options

Because every installation is unique, the PMX700 is carefully packaged with all the hardware you could need. Choose between a variety of bolt diameters and lengths, as well as several spacers to perfectly fit your TV. Lag bolts and concrete anchors are also provided for both wood studs and concrete walls.

Specifications:

• TV Sizes: 42" to 100"
• Weight Allowance: 150 lbs (68 kg)
• VESA Sizes: 200×100 to 700×500
• Wall Plate: 32.4" (82.3 cm); Accommodates dual studs with up to 24" spacing
• Tilt: +12° to -3°
• Swivel: 180° at full extension (with 42" TV)
• Extension: 31" (79.5 cm) from the wall
• Profile: Sits 2.6" (6.6 cm) from the wall
• Horizontal Offset: 22" (55.8cm) of total horizontal offset
• Product weight: 44.5 lb (20.2 kg)

Includes:

• Paper wall template for marking pilot holes
• Installation Manual
• All mounting hardware for wood stud and concrete installation
